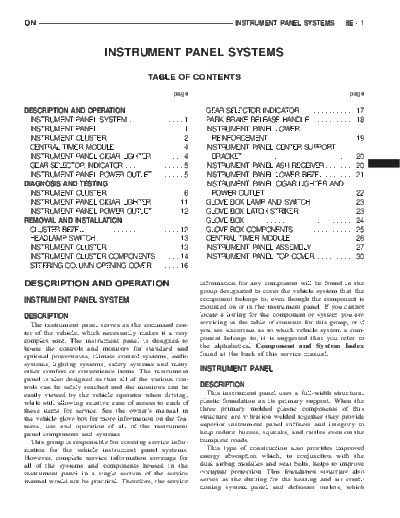

Image preview - the first page of the document
>> Download 00dn_8E documenatation <<
Text preview - extract from the document
DN INSTRUMENT PANEL SYSTEMS 8E - 1
INSTRUMENT PANEL SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION GEAR SELECTOR INDICATOR . . . . . . . . . . . . . . 17
INSTRUMENT PANEL SYSTEM . . . . . . . . . . . . . . 1 PARK BRAKE RELEASE HANDLE . . . . . . . . . . . . 18
INSTRUMENT PANEL . . . . . . . . . . . . . . . . . . . . . . 1 INSTRUMENT PANEL LOWER
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . . 2 REINFORCEMENT . . . . . . . . . . . . . . . . . . . . . . 19
CENTRAL TIMER MODULE . . . . . . . . . . . . . . . . . 4 INSTRUMENT PANEL CENTER SUPPORT
INSTRUMENT PANEL CIGAR LIGHTER . . . . . . . . 4 BRACKET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
GEAR SELECTOR INDICATOR . . . . . . . . . . . . . . . 5 INSTRUMENT PANEL ASH RECEIVER . . . . . . . . 20
INSTRUMENT PANEL POWER OUTLET . . . . . . . . 5 INSTRUMENT PANEL LOWER BEZEL . . . . . . . . 21
DIAGNOSIS AND TESTING INSTRUMENT PANEL CIGAR LIGHTER AND
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . . 6 POWER OUTLET . . . . . . . . . . . . . . . . . . . . . . . 22
INSTRUMENT PANEL CIGAR LIGHTER . . . . . . . 11 GLOVE BOX LAMP AND SWITCH . . . . . . . . . . . 23
INSTRUMENT PANEL POWER OUTLET . . . . . . . 12 GLOVE BOX LATCH STRIKER . . . . . . . . . . . . . . 23
REMOVAL AND INSTALLATION GLOVE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CLUSTER BEZEL. . . . . . . . . . . . . . . . . . . . . . . . . 12 GLOVE BOX COMPONENTS . . . . . . . . . . . . . . . . 25
HEADLAMP SWITCH . . . . . . . . . . . . . . . . . . . . . 13 CENTRAL TIMER MODULE . . . . . . . . . . . . . . . . 26
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . 13 INSTRUMENT PANEL ASSEMBLY . . . . . . . . . . . 27
INSTRUMENT CLUSTER COMPONENTS . . . . . . 14 INSTRUMENT PANEL TOP COVER. . . . . . . . . . . 30
STEERING COLUMN OPENING COVER . . . . . . . 16
DESCRIPTION AND OPERATION information for any component will be found in the
group designated to cover the vehicle system that the
INSTRUMENT PANEL SYSTEM component belongs to, even though the component is
mounted on or in the instrument panel. If you cannot
DESCRIPTION locate a listing for the component or system you are
The instrument panel serves as the command cen- servicing in the table of contents for this group, or if
ter of the vehicle, which necessarily makes it a very you are uncertain as to which vehicle system a com-
complex unit. The instrument panel is designed to ponent belongs to, it is suggested that you refer to
house the controls and monitors for standard and the alphabetical Component and System Index
optional powertrains, climate control systems, audio found at the back of this service manual.
systems, lighting systems, safety systems and many
other comfort or convenience items. The instrument INSTRUMENT PANEL
panel is also designed so that all of the various con-
trols can be safely reached and the monitors can be DESCRIPTION
easily viewed by the vehicle operator when driving, This instrument panel uses a full-width structural
while still allowing relative ease of access to each of plastic foundation as its primary support. When the
these items for service. See the owner's manual in three primary molded plastic components of this
the vehicle glove box for more information on the fea- structure are vibration welded together they provide
tures, use and operation of all of the instrument superior instrument panel stiffness and integrity to
panel components and systems. help reduce buzzes, squeaks, and rattles even on the
This group is responsible for covering service infor- bumpiest roads.
mation for the vehicle instrument panel systems. This type of construction also provides improved
However, complete service information coverage for energy absorption which, in conjunction with the
all of the systems and components housed in the dual airbag modules and seat belts, helps to improve
instrument panel in a single section of the service occupant protection. This foundation structure also
manual would not be practical. Therefore, the service serves as the ducting for the heating and air condi-
tioning system panel and defroster outlets, which
8E - 2 INSTRUMENT PANEL SYSTEMS DN
DESCRIPTION AND OPERATION (Continued)
greatly reduces the number of components used over ◦ Jabse Service Manual Search 2025 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
