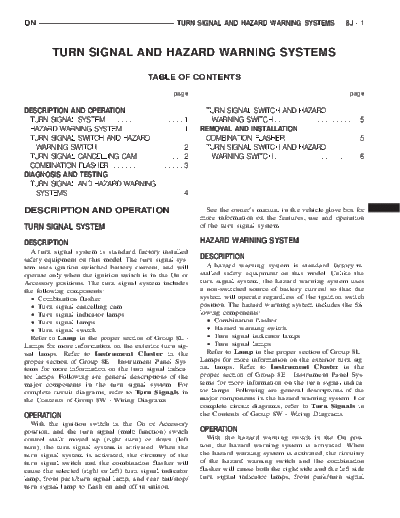

Image preview - the first page of the document
00dn_8J


>> Download 00dn_8J documenatation <<

Text preview - extract from the document
DN                                                               TURN SIGNAL AND HAZARD WARNING SYSTEMS                         8J - 1



            TURN SIGNAL AND HAZARD WARNING SYSTEMS
                                                    TABLE OF CONTENTS

                                                               page                                                              page

DESCRIPTION AND OPERATION                                                 TURN SIGNAL SWITCH AND HAZARD
  TURN SIGNAL SYSTEM . . . . . . . . . . . . . . . . . . . . 1             WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 5
  HAZARD WARNING SYSTEM. . . . . . . . . . . . . . . . 1                 REMOVAL AND INSTALLATION
  TURN SIGNAL SWITCH AND HAZARD                                           COMBINATION FLASHER . . . . . . . . . . . . . . . . . . . 5
   WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 2           TURN SIGNAL SWITCH AND HAZARD
  TURN SIGNAL CANCELLING CAM . . . . . . . . . . . . 2                     WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 6
  COMBINATION FLASHER . . . . . . . . . . . . . . . . . . . 3
DIAGNOSIS AND TESTING
  TURN SIGNAL AND HAZARD WARNING
   SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

DESCRIPTION AND OPERATION                                                  See the owner's manual in the vehicle glove box for
                                                                         more information on the features, use and operation
TURN SIGNAL SYSTEM                                                       of the turn signal system.

DESCRIPTION                                                              HAZARD WARNING SYSTEM
  A turn signal system is standard factory-installed
safety equipment on this model. The turn signal sys-                     DESCRIPTION
tem uses ignition switched battery current, and will                       A hazard warning system is standard factory-in-
operate only when the ignition switch is in the On or                    stalled safety equipment on this model. Unlike the
Accessory positions. The turn signal system includes                     turn signal system, the hazard warning system uses
the following components:                                                a non-switched source of battery current so that the
