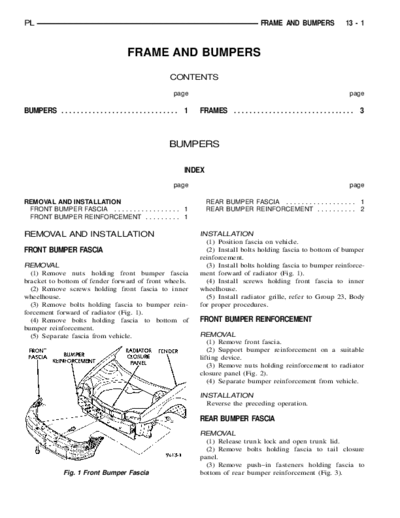

Image preview - the first page of the document
>> Download EPL_13 documenatation <<Text preview - extract from the document FRONT FASCIA FORCE-
REIN- MENT
BUMPER RADIATOR CLOSURE FENDER
PANEL
PL FRAME AND BUMPERS 13 - 1
FRAME AND BUMPERS
CONTENTS
page page
BUMPERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 FRAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BUMPERS
INDEX
page page
REMOVAL AND INSTALLATION REAR BUMPER FASCIA . . . . . . . . . . . . . . . . . . 1
FRONT BUMPER FASCIA . . . . . . . . . . . . . . . . . 1 REAR BUMPER REINFORCEMENT . . . . . . . . . . 2
FRONT BUMPER REINFORCEMENT . . . . . . . . . 1
REMOVAL AND INSTALLATION INSTALLATION
(1) Position fascia on vehicle.
FRONT BUMPER FASCIA (2) Install bolts holding fascia to bottom of bumper
reinforcement.
REMOVAL (3) Install bolts holding fascia to bumper reinforce-
(1) Remove nuts holding front bumper fascia ment forward of radiator (Fig. 1).
bracket to bottom of fender forward of front wheels. (4) Install screws holding front fascia to inner
(2) Remove screws holding front fascia to inner wheelhouse.
wheelhouse. (5) Install radiator grille, refer to Group 23, Body
(3) Remove bolts holding fascia to bumper rein- for proper procedures.
forcement forward of radiator (Fig. 1).
(4) Remove bolts holding fascia to bottom of FRONT BUMPER REINFORCEMENT
bumper reinforcement.
(5) Separate fascia from vehicle. REMOVAL
(1) Remove front fascia.
(2) Support bumper reinforcement on a suitable
lifting device.
(3) Remove nuts holding reinforcement to radiator
closure panel (Fig. 2).
(4) Separate bumper reinforcement from vehicle.
INSTALLATION
Reverse the preceding operation.
REAR BUMPER FASCIA
REMOVAL
(1) Release trunk lock and open trunk lid.
(2) Remove bolts holding fascia to tail closure
panel.
(3) Remove push
