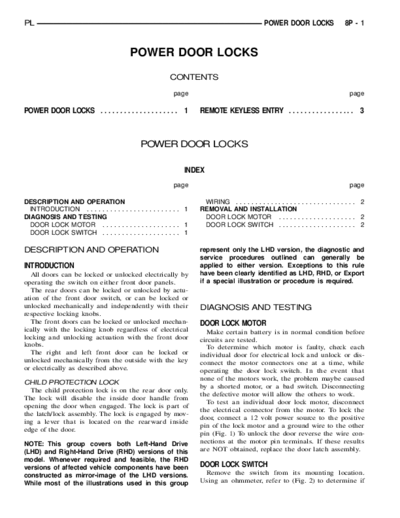

Image preview - the first page of the document
>> Download EPL_8P documenatation <<
Text preview - extract from the document
PL POWER DOOR LOCKS 8P - 1
POWER DOOR LOCKS
CONTENTS
page page
POWER DOOR LOCKS . . . . . . . . . . . . . . . . . . . . 1 REMOTE KEYLESS ENTRY . . . . . . . . . . . . . . . . . 3
POWER DOOR LOCKS
INDEX
page page
DESCRIPTION AND OPERATION WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . 1 REMOVAL AND INSTALLATION
DIAGNOSIS AND TESTING DOOR LOCK MOTOR . . . . . . . . . . . . . . . . . . . . 2
DOOR LOCK MOTOR . . . . . . . . . . . . . . . . . . . . 1 DOOR LOCK SWITCH . . . . . . . . . . . . . . . . . . . . 2
DOOR LOCK SWITCH . . . . . . . . . . . . . . . . . . . . 1
DESCRIPTION AND OPERATION represent only the LHD version, the diagnostic and
service procedures outlined can generally be
INTRODUCTION applied to either version. Exceptions to this rule
All doors can be locked or unlocked electrically by have been clearly identified as LHD, RHD, or Export
operating the switch on either front door panels. if a special illustration or procedure is required.
The rear doors can be locked or unlocked by actu-
ation of the front door switch, or can be locked or
unlocked mechanically and independently with their DIAGNOSIS AND TESTING
respective locking knobs.
The front doors can be locked or unlocked mechan- DOOR LOCK MOTOR
ically with the locking knob regardless of electrical Make certain battery is in normal condition before
locking and unlocking actuation with the front door circuits are tested.
knobs. To determine which motor is faulty, check each
The right and left front door can be locked or individual door for electrical lock and unlock or dis-
unlocked mechanically from the outside with the key connect the motor connectors one at a time, while
or electrically as described above. operating the door lock switch. In the event that
none of the motors work, the problem maybe caused
CHILD PROTECTION LOCK
by a shorted motor, or a bad switch. Disconnecting
The child protection lock is on the rear door only.
the defective motor will allow the others to work.
The lock will disable the inside door handle from
To test an individual door lock motor, disconnect
opening the door when engaged. The lock is part of
the electrical connector from the motor. To lock the
the latch/lock assembly. The lock is engaged by mov-
door, connect a 12 volt power source to the positive
ing a lever that is located on the rearward inside
pin of the lock motor and a ground wire to the other
edge of the door.
pin (Fig. 1) To unlock the door reverse the wire con-
NOTE: This group covers both Left-Hand Drive nections at the motor pin terminals. If these results
(LHD) and Right-Hand Drive (RHD) versions of this are NOT obtained, replace the door latch assembly.
model. Whenever required and feasible, the RHD
versions of affected vehicle components have been DOOR LOCK SWITCH
constructed as mirror-image of the LHD versions. Remove the switch from its mounting location.
While most of the illustrations used in this group Using an ohmmeter, refer to (Fig. 2) to determine if
VIEW IN DIRECTION OF
+LH LOCK
TO RH
ARROW Z
8P - 2 POWER DOOR LOCKS PL
DIAGNOSIS AND TESTING (Continued)
WIRING
The following wiring test sequence determines
whether or not voltage is continuous through the
body harness to switch.
(1) Remove left side switch from door trim panel.
(2) Carefully separate multiple terminal block on
wiring harness from switch body.
(3) Connect one lead of test light to a ground ter-
minal. Touch other test light lead to Red Wire termi-
nal.
(a) If test light comes on, the wiring circuit
between the battery and switch is functional.
(b) If test light does not come on, check fuse 3 in
the fuse block or for a open circuit.
(4) If test light comes on, the wiring circuit
between the battery and switch is functional.
REMOVAL AND INSTALLATION
DOOR LOCK MOTOR
Fig. 1 Door Latch Assembly REMOVAL
(1) Remove door trim panel, refer to Group 23,
continuity is correct in the Lock and Unlock switch Body for removal procedures.
positions. If these results are not obtained, replace (2) Disconnect all door linkages at the latch/lock
the switch. assembly (Fig. 1).
(3) Disconnect motor wire connector.
(4) Remove latch/lock assembly attaching screws
and remove assembly.
INSTALLATION
For installation, reverse the above procedures.
DOOR LOCK SWITCH
REMOVAL
(1) Remove front door trim, refer to Group 23,
Body for proper procedures.
(2) Disconnect wire connector.
(3) Remove attaching screws.
(4) Remove the switch.
Fig. 2 Door Lock Switch Continuity Test INSTALLATION
For installation, reverse the above procedures.
BATTERIES
PL POWER DOOR LOCKS 8P - 3
REMOTE KEYLESS ENTRY
INDEX
page page
GENERAL INFORMATION PANIC FUNCTION CANCELLATION . . . ....... 5
INTRODUCTION . . . . . . . . . . . . . . . . . . ...... 3 PROGRAM REMOTE KEYLESS ENTRY
DESCRIPTION AND OPERATION MODULE . . . . . . . . . . . . . . . . . . . . . ....... 5
VEHICLE ACCESS CODE (VAC) REMOVAL AND INSTALLATION
PROGRAMMING . . . . . . . . . . . . . . . . . ...... 3 REMOTE KEYLESS ENTRY MODULE . ....... 6
DIAGNOSIS AND TESTING SPECIFICATIONS
REMOTE KEYLESS ENTRY CONDITION ...... 3 RKE TRANSMITTER BATTERY . . . . . . ....... 6
REMOTE KEYLESS ENTRY SYSTEM . . ...... 5 RKE TRANSMITTER RANGE . . . . . . . . ....... 6
SERVICE PROCEDURES
HORN CHIRP CANCELLATION . . . . . . . ...... 5
GENERAL INFORMATION
INTRODUCTION
The key fob transmitter has three buttons to actu-
ate and program the Remote Keyless Entry (RKE)
system (Fig. 1).
