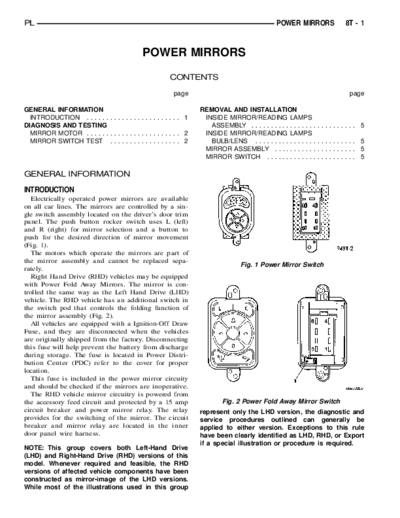

Image preview - the first page of the document
>> Download EPL_8T documenatation <<
Text preview - extract from the document
PL POWER MIRRORS 8T - 1
POWER MIRRORS
CONTENTS
page page
GENERAL INFORMATION REMOVAL AND INSTALLATION
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . 1 INSIDE MIRROR/READING LAMPS
DIAGNOSIS AND TESTING ASSEMBLY . . . . . . . . . . . . . . . . . .......... 5
MIRROR MOTOR . . . . . . . . . . . . . . . . . . . . . . . . 2 INSIDE MIRROR/READING LAMPS
MIRROR SWITCH TEST . . . . . . . . . . . . . . . . . . 2 BULB/LENS . . . . . . . . . . . . . . . . .......... 5
MIRROR ASSEMBLY . . . . . . . . . . . .......... 5
MIRROR SWITCH . . . . . . . . . . . . . .......... 5
GENERAL INFORMATION
INTRODUCTION
Electrically operated power mirrors are available
on all car lines. The mirrors are controlled by a sin-
gle switch assembly located on the driver's door trim
panel. The push button rocker switch uses L (left)
and R (right) for mirror selection and a button to
push for the desired direction of mirror movement
(Fig. 1).
The motors which operate the mirrors are part of
the mirror assembly and cannot be replaced sepa-
Fig. 1 Power Mirror Switch
rately.
Right Hand Drive (RHD) vehicles may be equipped
with Power Fold Away Mirrors. The mirror is con-
trolled the same way as the Left Hand Drive (LHD)
vehicle. The RHD vehicle has an additional switch in
the switch pod that controls the folding function of
the mirror assembly (Fig. 2).
All vehicles are equipped with a Ignition-Off Draw
Fuse, and they are disconnected when the vehicles
are originally shipped from the factory. Disconnecting
this fuse will help prevent the battery from discharge
during storage. The fuse is located in Power Distri-
bution Center (PDC) refer to the cover for proper
location.
This fuse is included in the power mirror circuity
and should be checked if the mirrors are inoperative.
The RHD vehicle mirror circuitry is powered from
the accessory feed circuit and protected by a 15 amp Fig. 2 Power Fold Away Mirror Switch
circuit breaker and power mirror relay. The relay represent only the LHD version, the diagnostic and
provides for the switching of the mirror. The circuit service procedures outlined can generally be
breaker and mirror relay are located in the inner applied to either version. Exceptions to this rule
door panel wire harness. have been clearly identified as LHD, RHD, or Export
if a special illustration or procedure is required.
NOTE: This group covers both Left-Hand Drive
(LHD) and Right-Hand Drive (RHD) versions of this
model. Whenever required and feasible, the RHD
versions of affected vehicle components have been
constructed as mirror-image of the LHD versions.
While most of the illustrations used in this group
Mirror MIRROR SWITCH BETWEEN
Mirror Selector KnobPINS 2 AND 4
CONTINUITY "R" Position
Selector Knob in CONTINUITY
in BETWEEN
CONTINUITY "L" 8 in A-8
A-1 in ITY
MirrorCONTINUITY CONTINU-
MIRROR SWITCH BETWEEN
Selector MOVE Position
Mirror FoldingANDOUT
PINS Knob LEVER
A-2 IN
B-1
A-5
A-6
A-3
A-4
"R"
"L"
A-7
MOVE LEVER PINS 1 AND 5
PINS 2 AND 6
PINS 1 AND 3
7
PINS 2 AND 5
8T - 2 POWER MIRRORS PINS 1 AND 4
8
7
PINS 2 AND 3
PL
PINS 1 AND 6
DIAGNOSIS AND TESTING
MIRROR SWITCH TEST
(1) Remove power mirror switch from mounting
position.
(2) Disconnect wiring harness at switch connector.
(3) Using an ohmmeter, test for continuity between
the terminals of the switch as shown in the Mirror
Switch Test (Fig. 3) and RHD Power Fold Away Mir-
ror Switch Test (Fig. 4)
(4) If test results are not obtained as shown in the
(Fig. 3) or (Fig. 4), replace the switch.
Fig. 4 Power Fold Away Mirror Switch Test
Fig. 3 Mirror Switch Test
MIRROR MOTOR
(1) Remove door trim panel, refer to Group 23
Front Door Trim.
(2) Remove switch mounting screws from back side
of trim panel and remove switch.
CONNECTOR IN
TOR RELAY CONNEC-
TERMINAL ENDSWIRING
MIRROR INSWITCH HARNESS
DOOR DOOR(S)
CONNECTORS
VIEWS
PL POWER MIRRORS 8T - 3
DIAGNOSIS AND TESTING (Continued)
(3) Disconnect wire connector.
(4) Using two jumper wires, one connected to a 12
volt source, and 2 the other connected to a good body
ground. Refer to the Mirror Test (Fig. 5) for appropri-
ate mirror response. RHD vehicle with Power Fold
TERMINAL END VIEW
Away Mirror refer to (Fig. 6)
(5) If test results are not obtained as shown in the
(Fig. 5), check for open or shorted circuit (Fig. 7), or
replace mirror assembly as necessary.
Fig. 5 Mirror Test
Fig. 6 Power Fold Away Mirror Test
SHOWNRIGHT CENTERDOOR
1/PNL RIGHTRIGHT (30 PORT
POWERIGNITION (15 POSI-
IN EXTENDED AMP)
POWER SEPARATE
MIRROR EXTEND
CIRCUITSWITCH
LEFT MIRROR
FRONTBRAKE
WINDOWS
RETRACT
CCW
SUP-
PTC
CW
DN
UP
RT
LT
TIONC
R
L
8T - 4 POWER MIRRORS PL
Fig. 7 Power Fold Away Mirrors Wiring Schematic
PL POWER MIRRORS 8T - 5
REMOVAL AND INSTALLATION
INSIDE MIRROR/READING LAMPS ASSEMBLY
REMOVAL
(1) Disconnect wiring connector.
(2) Loosen mirror set screw (Fig. 8).
(3) Lift mirror from mounting button.
INSTALLATION
For installation, reverse the above procedure.
Ensure the mirror is fully locked into place.
INSIDE MIRROR/READING LAMPS BULB/LENS
REMOVAL
(1) Using a small thin blade tool, pry at the center
of the lens nearest the mirror to remove lens (Fig. 8).
(2) Remove cartridge lamp and replace if neces-
sary.
INSTALLATION
Install lens by setting lens into position and apply- Fig. 8 Mirror/Reading Lamps
ing pressure until it is locked into position.
INSTALLATION
For installation, reverse the above procedures.
MIRROR SWITCH
REMOVAL MIRROR ASSEMBLY
(1) Remove door trim panel, refer to Group 23 For door trim panel and mirror removal and instal-
Front Door Trim. lation, refer to Group 23 Body. Test operation of mir-
(2) Remove switch mounting screws from back side ror before installing door trim panel.
of trim panel and remove switch.
(3) Disconnect wire connector.
