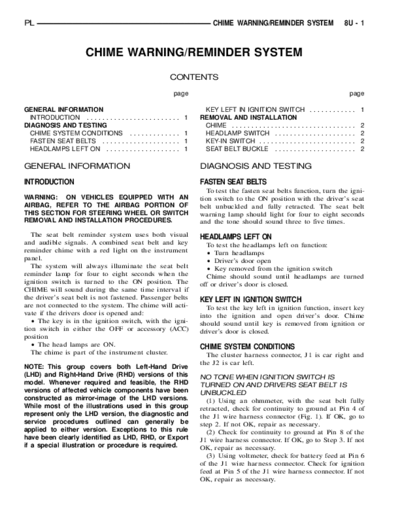

Image preview - the first page of the document



>> Download EPL_8U documenatation <<

Text preview - extract from the document

PL                                                             CHIME WARNING/REMINDER SYSTEM                                                   8U - 1



                     CHIME WARNING/REMINDER SYSTEM
                                                CONTENTS

                                                  page                                                                                             page

GENERAL INFORMATION                                        KEY LEFT IN IGNITION SWITCH                     ............ 1
  INTRODUCTION . . . . . . . . . .   .............. 1     REMOVAL AND INSTALLATION
DIAGNOSIS AND TESTING                                      CHIME . . . . . . . . . . . . . . . . . . . .   .   .   .   .   .   .   .   .   .   .   .   .   2
  CHIME SYSTEM CONDITIONS             ............. 1      HEADLAMP SWITCH . . . . . . . . .               .   .   .   .   .   .   .   .   .   .   .   .   2
  FASTEN SEAT BELTS . . . . . .      .............. 1      KEY-IN SWITCH . . . . . . . . . . . . .         .   .   .   .   .   .   .   .   .   .   .   .   2
  HEADLAMPS LEFT ON . . . . .        .............. 1      SEAT BELT BUCKLE . . . . . . . . .              .   .   .   .   .   .   .   .   .   .   .   .   2

GENERAL INFORMATION                                       DIAGNOSIS AND TESTING
INTRODUCTION                                              FASTEN SEAT BELTS
                                                             To test the fasten seat belts function, turn the igni-
WARNING: ON VEHICLES EQUIPPED WITH AN                     tion switch to the ON position with the driver's seat
AIRBAG, REFER TO THE AIRBAG PORTION OF                    belt unbuckled and fully retracted. The seat belt
THIS SECTION FOR STEERING WHEEL OR SWITCH                 warning lamp should light for four to eight seconds
REMOVAL AND INSTALLATION PROCEDURES.                      and the tone should sound three to five times.

   The seat belt reminder system uses both visual         HEADLAMPS LEFT ON
and audible signals. A combined seat belt and key            To test the headlamps left on function:
reminder chime with a red light on the instrument
