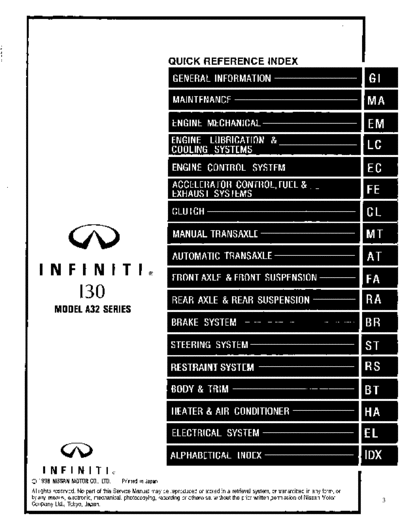

Image preview - the first page of the document
>> Download fwd documenatation <<
Text preview - extract from the document
3
4
1823
1825
2
Attachment No.11
TEST VALUE AND TEST LIMIT (GST ONLY -- NOT APPLICABLE TO CONSULT-II)
The following is the information specified in Mode 6 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is "OK" or "NG" while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
Items for which these data (test value and test limit) are displayed are the same as SRT code items.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
Test value
SRT item Self-diagnostic test item DTC (GST display) Test limit Conversion
TID CID
P0420 01H 01H Max. 1/128
Three way catalyst function (Bank 1)
P0420 02H 81H Min. 1
CATALYST
P0430 03H 02H Max. 1/128
Three way catalyst function (Bank 2)
P0430 04H 82H Min. 1
P0440 05H 03H Max. 1/128mm2
EVAP control system (Small leak)
EVAP SYSTEM P1440 05H 03H Max. 1/128mm2
EVAP control system purge flow monitoring P1447 06H 83H Min. 20mV
P0133 09H 04H Max. 10ms
P0131 0AH 84H Min. 10mV
Heated oxygen sensor 1 (Bank 1) P0130 0BH 04H Max. 10mV
P0132 0CH 04H Max. 10mV
P0134 0DH 04H Max. 1s
P0153 11H 05H Max. 10ms
P0151 12H 85H Min. 10mV
Heated oxygen sensor 1 (Bank 2) P0150 13H 05H Max. 10mV
P0152 14H 05H Max. 10mV
HO2S
P0154 15H 05H Max. 1s
P0139 19H 86H Min. 10mV/500ms
P0137 1AH 86H Min. 10mV
Heated oxygen sensor 2 (Bank 1)
P0140 1BH 06H Max. 10mV
P0138 1CH 06H Max. 10mV
P0159 21H 87H Min. 10mV/500ms
P0157 22H 87H Min. 10mV
Heated oxygen sensor 2 (Bank 2)
P0160 23H 07H Max. 10mV
P0158 24H 07H Max. 10mV
P0135 29H 08H Max. 20mV
Heated oxygen sensor 1 heater (Bank 1)
P0135 2AH 88H Min. 20mV
P0155 2BH 09H Max. 20mV
Heated oxygen sensor 1 heater (Bank 2)
P0155 2CH 89H Min. 20mV
HO2S HTR
P0141 2DH 0AH Max. 20mV
Heated oxygen sensor 2 heater (Bank 1)
P0141 2EH 8AH Min. 20mV
P0161 2FH 0BH Max. 20mV
Heated oxygen sensor 2 heater (Bank 2)
P0161 30H 8BH Min. 20mV
P0400 31H 8CH Min. 1
P0400 32H 8CH Min. 1
EGR SYSTEM EGR function P0400 33H 8CH Min. 1
P0400 34H 8CH Min. 1
P1402 35H 0CH Max. 1
Attachment No.12
TEST VALUE AND TEST LIMIT (GST ONLY -- NOT APPLICABLE TO CONSULT-II)
The following is the information specified in Mode 6 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is "OK" or "NG" while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
Items for which these data (test value and test limit) are displayed are the same as SRT code items.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
Test value
SRT item Self-diagnostic test item DTC (GST display) Test limit Conversion
TID CID
P0420 01H 01H Max. 1/128
CATALYST Three way catalyst function
P0420 02H 81H Min. 1
P0440 05H 03H Max. 1/128mm2
EVAP control system (Small leak)
EVAP SYSTEM P1440 05H 03H Max. 1/128mm2
EVAP control system purge flow monitoring P1447 06H 83H Min. 10mV
P0133 09H 04H Max. 10ms
P0131 0AH 84H Min. 10mV
Heated oxygen sensor 1 (Bank 1) P0130 0BH 04H Max. 10mV
P0132 0CH 04H Max. 10mV
P0134 0DH 04H Max. 1s
P0153 11H 05H Max. 10ms
P0151 12H 85H Min. 10mV
HO2S
Heated oxygen sensor 1 (Bank 2) P0150 13H 05H Max. 10mV
P0152 14H 05H Max. 10mV
P0154 15H 05H Max. 1s
P0139 19H 86H Min. 10mV/500ms
P0137 1AH 86H Min. 10mV
Heated oxygen sensor 2 (Bank 1)
P0140 1BH 06H Max. 10mV
P0138 1CH 06H Max. 10mV
P0135 29H 08H Max. 20mV
Heated oxygen sensor 1 heater (Bank 1)
P0135 2AH 88H Min. 20mV
P0155 2BH 09H Max. 20mV
HO2S HTR Heated oxygen sensor 1 heater (Bank 2)
P0155 2CH 89H Min. 20mV
P0141 2DH 0AH Max. 20mV
Heated oxygen sensor 2 heater
P0141 2EH 8AH Min. 20mV
P0400 31H 8CH Min. 1
P0400 32H 8CH Min. 1
EGR SYSTEM EGR function P0400 33H 8CH Min. 1
P0400 34H 8CH Min. 1
P1402 35H 0CH Max. 1
