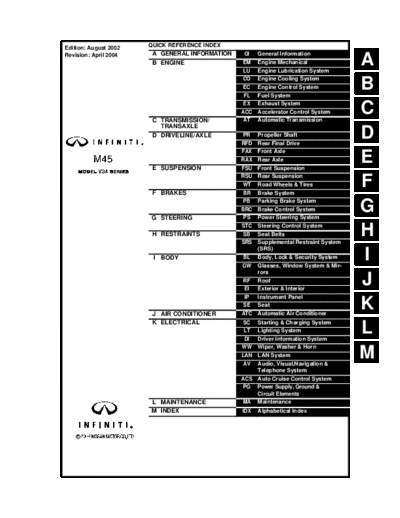

Image preview - the first page of the document
>> Download fwd documenatation <<
Text preview - extract from the document
Edition: August 2002 QUICK REFERENCE INDEX
A GENERAL INFORMATION GI General Information
Revision: April 2004
B ENGINE EM
LU
Engine Mechanical
Engine Lubrication System
A
CO
EC
FL
Engine Cooling System
Engine Control System
Fuel System
B
C TRANSMISSION/
EX
ACC
AT
Exhaust System
Accelerator Control System
Automatic Transmission
C
TRANSAXLE
D DRIVELINE/AXLE PR
RFD
Propeller Shaft
Rear Final Drive
D
FAX Front Axle
E SUSPENSION
RAX
FSU
Rear Axle
Front Suspension
E
F
RSU Rear Suspension
WT Road Wheels & Tires
F BRAKES BR Brake System
G STEERING
PB
BRC
PS
Parking Brake System
Brake Control System
Power Steering System
G
H RESTRAINTS
STC
SB
SRS
Steering Control System
Seat Belts
Supplemental Restraint System
H
(SRS)
I BODY BL
GW
Body, Lock & Security System
Glasses, Window System & Mir-
I
rors
RF
EI
Roof
Exterior & Interior
J
IP Instrument Panel
J AIR CONDITIONER
SE
ATC
Seat
Automatic Air Conditioner
K
K ELECTRICAL SC Starting & Charging System
LT
DI
Lighting System
Driver Information System
L
WW Wiper, Washer & Horn
LAN
AV
LAN System
Audio, Visual,Navigation &
M
Telephone System
ACS Auto Cruise Control System
PG Power Supply, Ground &
Circuit Elements
L MAINTENANCE MA Maintenance
M INDEX IDX Alphabetical Index
INCH TO METRIC CONVERSION TABLE METRIC TO INCH CONVERSION TABLE
(Rounded-off for automotive use) (Rounded-off for automotive use)
inches mm inches mm mm inches mm inches
.100 2.54 .610 15.49 1 .0394 51 2.008
.110 2.79 .620 15.75 2 .079 52 2.047
.120 3.05 .630 16.00 3 .118 53 2.087
.130 3.30 .640 16.26 4 .157 54 2.126
.140 3.56 .650 16.51 5 .197 55 2.165
.150 3.81 .660 16.76 6 .236 56 2.205
.160 4.06 .670 17.02 7 .276 57 2.244
.170 4.32 .680 17.27 8 .315 58 2.283
.180 4.57 .690 17.53 9 .354 59 2.323
.190 4.83 .700 17.78 10 .394 60 2.362
.200 5.08 .710 18.03 11 .433 61 2.402
.210 5.33 .720 18.29 12 .472 62 2.441
.220 5.59 .730 18.54 13 .512 63 2.480
.230 5.84 .740 18.80 14 .551 64 2.520
.240 6.10 .750 19.05 15 .591 65 2.559
.250 6.35 .760 19.30 16 .630 66 2.598
.260 6.60 .770 19.56 17 .669 67 2.638
.270 6.86 .780 19.81 18 .709 68 2.677
.280 7.11 .790 20.07 19 .748 69 2.717
.290 7.37 .800 20.32 20 .787 70 2.756
.300 7.62 .810 20.57 21 .827 71 2.795
.310 7.87 .820 20.83 22 .866 72 2.835
.320 8.13 .830 21.08 23 .906 73 2.874
.330 8.38 .840 21.34 24 .945 74 2.913
.340 8.64 .850 21.59 25 .984 75 2.953
.350 8.89 .860 21.84 26 1.024 76 2.992
.360 9.14 .870 22.10 27 1.063 77 3.031
.370 9.40 .880 22.35 28 1.102 78 3.071
.380 9.65 .890 22.61 29 1.142 79 3.110
.390 9.91 .900 22.86 30 1.181 80 3.150
.400 10.16 .910 23.11 31 1.220 81 3.189
.410 10.41 .920 23.37 32 1.260 82 3.228
.420 10.67 .930 23.62 33 1.299 83 3.268
.430 10.92 .940 23.88 34 1.339 84 3.307
.440 11.18 .950 24.13 35 1.378 85 3.346
.450 11.43 .960 24.38 36 1.417 86 3.386
.460 11.68 .970 24.64 37 1.457 87 3.425
.470 11.94 .980 24.89 38 1.496 88 3.465
.480 12.19 .990 25.15 39 1.535 89 3.504
.490 12.45 1.000 25.40 40 1.575 90 3.543
.500 12.70 2.000 50.80 41 1.614 91 3.583
.510 12.95 3.000 76.20 42 1.654 92 3.622
.520 13.21 4.000 101.60 43 1.693 93 3.661
.530 13.46 5.000 127.00 44 1.732 94 3.701
.540 13.72 6.000 152.40 45 1.772 95 3.740
.550 13.97 7.000 177.80 46 1.811 96 3.780
.560 14.22 8.000 203.20 47 1.850 97 3.819
.570 14.48 9.000 228.60 48 1.890 98 3.858
.580 14.73 10.000 254.00 49 1.929 99 3.898
.590 14.99 20.000 508.00 50 1.969 100 3.937
.600 15.24
QUICK REFERENCE CHART M45 2003
QUICK REFERENCE CHART M45 PFP:00000
ENGINE TUNE-UP DATA (VK45DE) ELS0003W
Engine model VK45DE
Firing order 1-8-7-3-6-5-4-2
Idle speed
