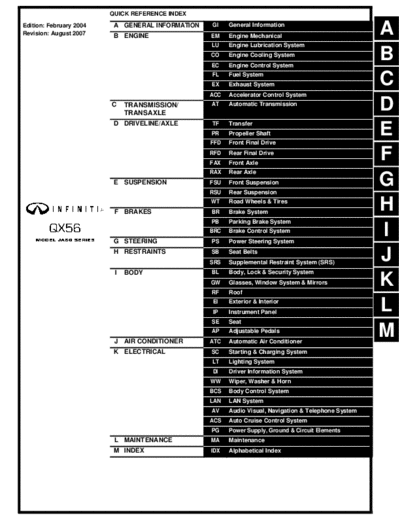

>> Download fwd documenatation <<Text preview - extract from the document QUICK REFERENCE INDEX
Edition: February 2004
Revision: August 2007
A GENERAL INFORMATION
B ENGINE
GI
EM
General Information
Engine Mechanical A
LU Engine Lubrication System
CO
EC
Engine Cooling System
Engine Control System
B
FL
EX
Fuel System
Exhaust System C
ACC Accelerator Control System
C TRANSMISSION/
TRANSAXLE
AT Automatic Transmission
D
D DRIVELINE/AXLE TF Transfer
PR
FFD
Propeller Shaft
Front Final Drive
E
RFD
FAX
Rear Final Drive
Front Axle
F
RAX Rear Axle
E SUSPENSION FSU
RSU
Front Suspension
Rear Suspension
G
F BRAKES
WT
BR
Road Wheels & Tires
Brake System
H
PB Parking Brake System
G STEERING
BRC
PS
Brake Control System
Power Steering System
I
H RESTRAINTS SB
SRS
Seat Belts
Supplemental Restraint System (SRS)
J
I BODY BL Body, Lock & Security System
GW
RF
Glasses, Window System & Mirrors
Roof
K
EI
IP
Exterior & Interior
Instrument Panel L
SE Seat
J AIR CONDITIONER
AP
ATC
Adjustable Pedals
Automatic Air Conditioner
M
K ELECTRICAL SC Starting & Charging System
LT Lighting System
DI Driver Information System
WW Wiper, Washer & Horn
BCS Body Control System
LAN LAN System
AV Audio Visual, Navigation & Telephone System
ACS Auto Cruise Control System
PG Power Supply, Ground & Circuit Elements
L MAINTENANCE MA Maintenance
M INDEX IDX Alphabetical Index
-1
QUICK REFERENCE CHART: QX56 2004
QUICK REFERENCE CHART: QX56 PFP:00000
Engine Tune-Up Data ELS000YK
Cylinder arrangement V-8
Displacement 5,552 cm (338.80 in3 )
3
Bore and stroke 98 x 92 mm (3.86 x 3.62 in)
Valve arrangement DOHC
Firing order 1-8-7-3-6-5-4-2
Compression 2
Number of piston rings
Oil 1
Number of main bearings 5
Compression ratio 9.8:1
Standard 1,520 kPa (15.5 kg/cm2 , 220 psi) / 200 rpm
Compression pressure Minimum 1,324 kPa (13.5 kg/cm2 , 192 psi) / 200 rpm
Differential limit between cylinders 98 kPa (1.0 kg/cm2 , 14 psi) / 200 rpm
Cylinder number
SEM957C
Valve timing
PBIC0187E
Unit: degree
a b c d e f
232
