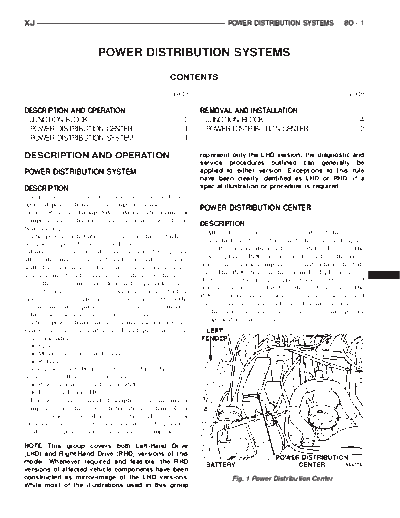

Image preview - the first page of the document
EXJ_8O


>> Download EXJ_8O documenatation <<

Text preview - extract from the document
XJ                                                                          POWER DISTRIBUTION SYSTEMS                   8O - 1



                            POWER DISTRIBUTION SYSTEMS
                                                        CONTENTS

                                                         page                                                              page

DESCRIPTION AND OPERATION                                         REMOVAL AND INSTALLATION
 JUNCTION BLOCK . . . . . . . . . . . . . . . . . . . . . . . 2    JUNCTION BLOCK . . . . . . . . . . . . . . . . . . . . . . . 4
 POWER DISTRIBUTION CENTER . . . . . . . . . . . . 1               POWER DISTRIBUTION CENTER . . . . . . . . . . . . 2
 POWER DISTRIBUTION SYSTEM . . . . . . . . . . . . 1

DESCRIPTION AND OPERATION                                         represent only the LHD version, the diagnostic and
                                                                  service procedures outlined can generally be
POWER DISTRIBUTION SYSTEM                                         applied to either version. Exceptions to this rule
                                                                  have been clearly identified as LHD or RHD, if a
DESCRIPTION                                                       special illustration or procedure is required.
   This group covers the various standard and
optional power distribution components used on this
model. Refer to Group 8W - Wiring Diagrams for
                                                                  POWER DISTRIBUTION CENTER
complete circuit diagrams of the various power distri-
bution components.
                                                                  DESCRIPTION
                                                                    All of the electrical current distributed throughout
   The power distribution system for this vehicle is
                                                                  this vehicle is directed through the standard equip-
designed to provide safe, reliable, and centralized dis-
                                                                  ment Power Distribution Center (PDC) (Fig. 1). The
tribution of the electrical current required to operate
                                                                  molded plastic PDC housing is located on the right
all of the many standard and optional factory-in-
                                                                  side of the engine compartment, just behind the bat-
stalled electrical and electronic powertrain, chassis,
                                                                  tery. The PDC housing has a molded plastic cover
safety, comfort and convenience systems. At the same
                                                                  that includes two integral pivot hooks on the inboard
time, these systems were designed to provide conve-
                                                                  side, and an integral latch on the outboard side. The
nient to access centralized locations for conducting
                                                                  PDC cover is easily removed for service access and
diagnosis of faulty circuits, and for sourcing the addi-
                                                                  has a convenient fuse and relay layout map integral
tional current requirements of many aftermarket
                                                                  to the inside surface of the cover to ensure proper
vehicle accessory and convenience items.
                                                                  component identification.
   These power distribution systems also incorporate
various types of circuit control and protection fea-
tures, including:
