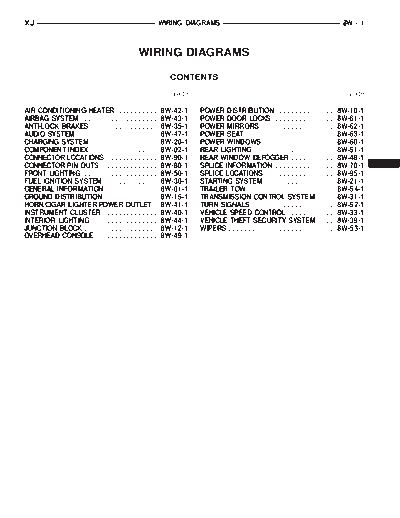

Image preview - the first page of the document
EXJ_8W


>> Download EXJ_8W documenatation <<

Text preview - extract from the document
XJ                                                     WIRING DIAGRAMS                                                           8W - 1



                                            WIRING DIAGRAMS
                                                         CONTENTS

                                                          page                                                                     page

AIR CONDITIONING-HEATER . . . . . . . . . .            8W-42-1   POWER DISTRIBUTION . . . . . . . . . . . . . .                 8W-10-1
AIRBAG SYSTEM . . . . . . . . . . . . . . . . . . .    8W-43-1   POWER DOOR LOCKS . . . . . . . . . . . . . . .                 8W-61-1
ANTI-LOCK BRAKES . . . . . . . . . . . . . . . . .     8W-35-1   POWER MIRRORS . . . . . . . . . . . . . . . . . .              8W-62-1
AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . .   8W-47-1   POWER SEAT . . . . . . . . . . . . . . . . . . . . . .         8W-63-1
CHARGING SYSTEM . . . . . . . . . . . . . . . . .      8W-20-1   POWER WINDOWS . . . . . . . . . . . . . . . . . .              8W-60-1
COMPONENT INDEX . . . . . . . . . . . . . . . . .      8W-02-1   REAR LIGHTING . . . . . . . . . . . . . . . . . . . .          8W-51-1
CONNECTOR LOCATIONS . . . . . . . . . . . . .          8W-90-1   REAR WINDOW DEFOGGER . . . . . . . . . . .                     8W-48-1
CONNECTOR PIN-OUTS . . . . . . . . . . . . . .         8W-80-1   SPLICE INFORMATION . . . . . . . . . . . . . . .               8W-70-1
FRONT LIGHTING . . . . . . . . . . . . . . . . . . .   8W-50-1   SPLICE LOCATIONS . . . . . . . . . . . . . . . . .             8W-95-1
FUEL/IGNITION SYSTEM . . . . . . . . . . . . .         8W-30-1   STARTING SYSTEM . . . . . . . . . . . . . . . . .              8W-21-1
GENERAL INFORMATION . . . . . . . . . . . . .          8W-01-1   TRAILER TOW . . . . . . . . . . . . . . . . . . . . . .        8W-54-1
GROUND DISTRIBUTION . . . . . . . . . . . . .          8W-15-1   TRANSMISSION CONTROL SYSTEM . . . .                            8W-31-1
HORN/CIGAR LIGHTER/POWER OUTLET .                      8W-41-1   TURN SIGNALS . . . . . . . . . . . . . . . . . . . . .         8W-52-1
INSTRUMENT CLUSTER . . . . . . . . . . . . . .         8W-40-1   VEHICLE SPEED CONTROL . . . . . . . . . . .                    8W-33-1
INTERIOR LIGHTING . . . . . . . . . . . . . . . . .    8W-44-1   VEHICLE THEFT SECURITY SYSTEM . . . .                          8W-39-1
JUNCTION BLOCK . . . . . . . . . . . . . . . . . . .   8W-12-1   WIPERS . . . . . . . . . . . . . . . . . . . . . . . . . . .   8W-53-1
OVERHEAD CONSOLE . . . . . . . . . . . . . . . .       8W-49-1
XJ                                          8W - 01 GENERAL INFORMATION                                                               8W - 01 - 1


                                       8W-01 GENERAL INFORMATION

                                                                                INDEX
                                                                        page                                                                   page

DESCRIPTION AND OPERATION                                                            TROUBLESHOOTING TESTS . . . . . . . . . . . . . . . . 9
  CIRCUIT FUNCTIONS . . . . . . . . . . . . . . . . .           .... 4               TROUBLESHOOTING TOOLS . . . . . . . . . . . . . . . 8
  CIRCUIT INFORMATION . . . . . . . . . . . . . . .             .... 4               TROUBLESHOOTING WIRING PROBLEMS . . . . 10
  CONNECTOR INFORMATION . . . . . . . . . . .                   .... 7              SERVICE PROCEDURES
  ELECTROSTATIC DISCHARGE (ESD)                                                      CONNECTOR AND TERMINAL REPLACEMENT . 12
    SENSITIVE DEVICES . . . . . . . . . . . . . . . .           .   .   .   .   8    CONNECTOR REPLACEMENT . . . . . . . . . . . . . . 11
  INTRODUCTION . . . . . . . . . . . . . . . . . . . . .        .   .   .   .   1    DIODE REPLACEMENT . . . . . . . . . . . . . . . . . . . 14
  NOTES, CAUTIONS, and WARNINGS . . . . .                       .   .   .   .   7    TERMINAL REPLACEMENT . . . . . . . . . . . . . . . . 13
  SECTION IDENTIFICATION . . . . . . . . . . . . .              .   .   .   .   5    TERMINAL/CONNECTOR REPAIR-MOLEX
  SPLICE LOCATIONS . . . . . . . . . . . . . . . . . .          .   .   .   .   7      CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . 10
  SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . .   .   .   .   .   5    TERMINAL/CONNECTOR REPAIR--THOMAS
  TAKE OUTS . . . . . . . . . . . . . . . . . . . . . . . . .   .   .   .   .   8      AND BETTS CONNECTORS . . . . . . . . . . . . . . 11
  TERMINOLOGY . . . . . . . . . . . . . . . . . . . . . .       .   .   .   .   7    WIRING REPAIR . . . . . . . . . . . . . . . . . . . . . . . . 10
DIAGNOSIS AND TESTING                                                               SPECIAL TOOLS
  INTERMITTENT AND POOR CONNECTIONS                             .... 9               WIRING/TERMINAL . . . . . . . . . . . . . . . . . . . . . . 15

DESCRIPTION AND OPERATION                                                             Components are shown two ways. A solid line
                                                                                    around a component indicates that the component is
INTRODUCTION                                                                        complete. A dashed line around a component indi-
  Chrysler wiring diagrams are designed to provide                                  cates that the component being shown is not com-
information regarding the vehicles wiring content. In                               plete. Incomplete components have a reference
order to effectively use Chrysler wiring diagrams to                                number to indicate the page where the component is
diagnose and repair a Chrysler vehicle, it is impor-                                shown complete.
tant to understand all of their features and charac-                                  It is important to realize that no attempt is made
teristics.                                                                          on the diagrams to represent components and wiring
  Diagrams are arranged such that the power (B+)                                    as they appear on the vehicle. For example, a short
side of the circuit is placed near the top of the page,                             piece of wire is treated the same as a long one. In
and the ground (B-) side of the circuit is placed near                              addition, switches and other components are shown
the bottom of the page.                                                             as simply as possible, with regard to function only.
  All switches, components, and modules are shown
in the at rest position with the doors closed and the
key removed from the ignition.
8W - 01 - 2                           8W - 01 GENERAL INFORMATION                                 XJ
DESCRIPTION AND OPERATION (Continued)




The System shown here is an EXAMPLE ONLY. It does not represent the actual circuit shown in the WIRING
                                      DIAGRAM SECTION.
XJ                            8W - 01 GENERAL INFORMATION                                 8W - 01 - 3
DESCRIPTION AND OPERATION (Continued)




The System shown here is an EXAMPLE ONLY. It does not represent the actual circuit shown in the WIRING
                                      DIAGRAM SECTION.
8W - 01 - 4                                 8W - 01 GENERAL INFORMATION                                   XJ
DESCRIPTION AND OPERATION (Continued)

CIRCUIT INFORMATION                                    CIRCUIT FUNCTIONS
   Each wire shown in the diagrams contains a code       All circuits in the diagrams use an alpha/numeric
which identifies the main circuit, part of the main    code to identify the wire and its function. To identify
circuit, gage of wire, and color (Fig. 1).             which circuit code applies to a system, refer to the
                                                       Circuit Identification Code Chart. This chart shows
                                                       the main circuits only and does not show the second-
                                                       ary codes that may apply to some models.
                                                          CIRCUIT IDENTIFICATION CODE CHART

                                                        CIRCUIT    FUNCTION
                                                           A       BATTERY FEED
                                                           B       BRAKE CONTROLS
                                                           C       CLIMATE CONTROLS
                                                           D       DIAGNOSTIC CIRCUITS
                                                           E       DIMMING ILLUMINATION CIRCUITS
                                                           F       FUSED CIRCUITS
                                                           G       MONITORING CIRCUITS (GAUGES)

          Fig. 1 Wire Code Identification                  H       OPEN
                                                           I       NOT USED
          WIRE COLOR CODE CHART
                                                           J       OPEN
                                   STANDARD                K       POWERTRAIN CONTROL MODULE
COLOR CODE        COLOR            TRACER                  L       EXTERIOR LIGHTING
                                   COLOR                   M       INTERIOR LIGHTING
BL                BLUE             WT                      N       NOT USED
BK                BLACK            WT                      O       NOT USED
BR                BROWN            WT                      P       POWER OPTION (BATTERY FEED)
DB                DARK BLUE        WT                      Q       POWER OPTIONS (IGNITION FEED)
DG                DARK GREEN       WT                      R       PASSIVE RESTRAINT
GY                GRAY             BK                      S       SUSPENSION/STEERING
LB                LIGHT BLUE       BK                      T       TRANSMISSION/TRANSAXLE/
LG                LIGHT GREEN      BK                              TRANSFER CASE
OR                ORANGE           BK                      U       OPEN
PK                PINK             BK or WT                V       SPEED CONTROL, WIPER/WASHER
RD                RED              WT                      W       OPEN
TN                TAN              WT                      X       AUDIO SYSTEMS
VT                VIOLET           WT                      Y       OPEN
WT                WHITE            BK                      Z       GROUNDS
YL                YELLOW           BK
*                 WITH TRACER
XJ                                8W - 01 GENERAL INFORMATION                                     8W - 01 - 5
DESCRIPTION AND OPERATION (Continued)

SECTION IDENTIFICATION                                    SYMBOLS
   The wiring diagrams are grouped into individual          International symbols are used throughout the wir-
sections. If a component is most likely found in a par-   ing diagrams. These symbols are consistent with
ticular group, it will be shown complete (all wires,      those being used around the world
connectors, and pins) within that group. For exam-
ple, the Auto Shutdown Relay is most likely to be
found in Group 30, so it is shown there complete. It
can, however, be shown partially in another group if
it contains some associated wiring.

        GROUP                       TOPIC
8W-01 thru 8W-09        General Information and
                        Diagram Overview
8W-10 thru 8W-19        Main Sources of Power and
                        Vehicle Grounding
8W-20 thru 8W-29        Starting and Charging
8W-30 thru 8W-39        Powertrain/Drivetrain
                        Systems
8W-40 thru 8W-49        Body Electrical items and A/C
8W-50 thru 8W-59        Exterior Lighting, Wipers, and
                        Trailer Tow
8W-60 thru 8W-69        Power Accessories
8W-70                   Splice Information
8W-80                   Connector Pin Outs
8W-90                   Connector Locations
                        (including grounds)
8W-95                   Splice Locations
8W - 01 - 6                8W - 01 GENERAL INFORMATION   XJ
DESCRIPTION AND OPERATION (Continued)




                            Wiring Diagram Symbols
XJ                                    8W - 01 GENERAL INFORMATION                                          8W - 01 - 7
DESCRIPTION AND OPERATION (Continued)

TERMINOLOGY
  This a list of terms with there definitions used in
the wiring diagrams.

Built-Up-Export . . . . . . . . Vehicles Built For Sale In
                     Markets Other Than North America
Except-Built-Up-Export . . Vehicles Built For Sale In
                                               North America
LHD . . . . . . . . . . . . . . . . . Left Hand Drive Vehicles
RHD . . . . . . . . . . . . . . . . Right Hand Drive Vehicles
ATX . . . Automatic Transmission-Front Wheel Drive                          Fig. 3 Connector Identification
MTX . . . . Manual Transmission-Front Wheel Drive                LOCATIONS
AT . . . . . Automatic Transmission-Rear Wheel Drive                Section 8W-90 contains connector/ground location
MT . . . . . . Manual Transmission-Rear Wheel Drive              illustrations. The illustrations contain the connector
SOHC . . . . . . . . . . . Single Over Head Cam Engine           name (or number)/ground number and component
DOHC . . . . . . . . . . . . Dual Over Head Cam Engine           identification. Connector/ground location charts in
                                                                 Section 8W-90 reference the illustration number for
CONNECTOR INFORMATION                                            components and connectors.
                                                                    Section 8W-80 shows each connector and the cir-
CAUTION: Not all connectors are serviced. Some
                                                                 cuits involved with that connector. The connectors
connectors are serviced only with a harness. A typ-
                                                                 are identified using the name/number on the Dia-
ical example might be the Supplemental Restraint
                                                                 gram pages.
System connectors. Always check parts availability
before attempting a repair.
                                                                 SPLICE LOCATIONS
                                                                    Splice Location charts in Section 8W-70 show the
IDENTIFICATION                                                   entire splice, and provide references to other sections
   In-line connectors are identified by a number, as             the splice serves.
follows:                                                            Section 8W-95 contains illustrations that show the
