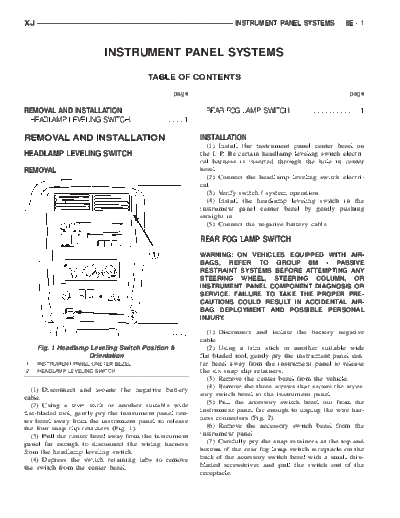

Image preview - the first page of the document
exj_8ea


>> Download exj_8ea documenatation <<

Text preview - extract from the document
XJ                                                                  INSTRUMENT PANEL SYSTEMS                8E - 1



                          INSTRUMENT PANEL SYSTEMS
                                        TABLE OF CONTENTS

                                                 page                                                        page

REMOVAL AND INSTALLATION                                  REAR FOG LAMP SWITCH. . . . . . . . . . . . . . . . . . 1
 HEADLAMP LEVELING SWITCH. . . . . . . . . . . . . . 1

REMOVAL AND INSTALLATION                                 INSTALLATION
                                                           (1) Install the instrument panel center bezel on
HEADLAMP LEVELING SWITCH                                 the I. P. Be certain headlamp leveling switch electri-
                                                         cal harness is inserted through the hole in center
REMOVAL                                                  bezel.
                                                           (2) Connect the headlamp leveling switch electri-
                                                         cal.
                                                           (3) Verify switch / system operation.
                                                           (4) Install the headlamp leveling switch in the
                                                         instrument panel center bezel by gently pushing
                                                         straight in.
                                                           (5) Connect the negative battery cable.

                                                         REAR FOG LAMP SWITCH
                                                         WARNING: ON VEHICLES EQUIPPED WITH AIR-
                                                         BAGS, REFER TO GROUP 8M - PASSIVE
                                                         RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
                                                         STEERING WHEEL, STEERING COLUMN, OR
                                                         INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
                                                         SERVICE. FAILURE TO TAKE THE PROPER PRE-
                                                         CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
                                                         BAG DEPLOYMENT AND POSSIBLE PERSONAL
                                                         INJURY.

                                                            (1) Disconnect and isolate the battery negative
                                                         cable.
     Fig. 1 Headlamp Leveling Switch Position &             (2) Using a trim stick or another suitable wide
                    Orientation                          flat-bladed tool, gently pry the instrument panel cen-
1
