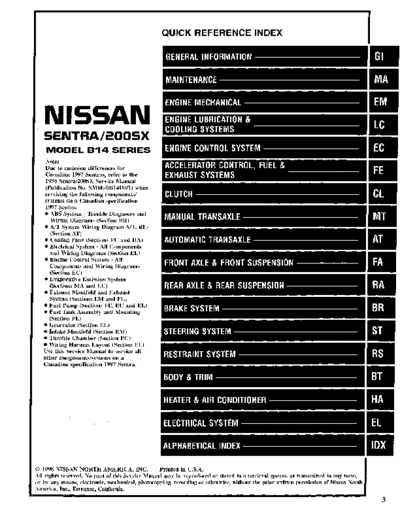

Image preview - the first page of the document
>> Download fwd documenatation <<
Text preview - extract from the document
3
4
1815
1819
Attachment No.1
TEST VALUE AND TEST LIMIT (GST ONLY -- NOT APPLICABLE TO CONSULT-II)
The following is the information specified in Mode 6 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is "OK" or "NG" while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
Items for which these data (test value and test limit) are displayed are the same as SRT code items.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
: Applicable : Not applicable
Test value
SRT item Self-diagnostic test item DTC (GST display) Te s t limit Application Unit
TID CID
P0420 01H 01H Max. X -
CATALYST Three way catalyst function
P04201 02H 81H Min. X -
EVAP control system (Small leak) P0440 05H 03H Max. X -
EVAP SYSTEM
EVAP control system purge flow monitoring P1447 06H 83H Min. X mV
P0130 09H 04H Max. X ms
P0130 0AH 84H Min. X mV
Heated oxygen sensor 1 P0130 0BH 04H Max. X mV
P0130 0CH 04H Max. X mV
HO2S P0130 0DH 04H Max. X s
P0136 19H 86H Min. X mV/500ms
P0136 1AH 86H Min. X mV
Heated oxygen sensor 2
P0136 1BH 06H Max. X mV
P0136 1CH 06H Max. X mV
P0135 29H 08H Max. X mV
Heated oxygen sensor 1 heater
P0135 2AH 88H Min. X mV
HO2S HTR
P0141 2DH 0AH Max. X mV
Heated oxygen sensor 2 heater
P0141 2EH 8AH Min. X mV
P0400 31H 8CH Min. X
P0400 32H 8CH Min. X
EGR function P0400 33H 8CH Min. X
EGR SYSTEM P0400 34H 8CH Min. X
P0400 35H 0CH Max. X
P0402 36H 0CH Max. X -
EGRC-BPT valve function
P0402 37H 8CH Min. X -
1Models B15 GA16DE engine 1997MY only.
