                              DRIVE COMPUTER
DRIVE COMPUTER                        To ESM

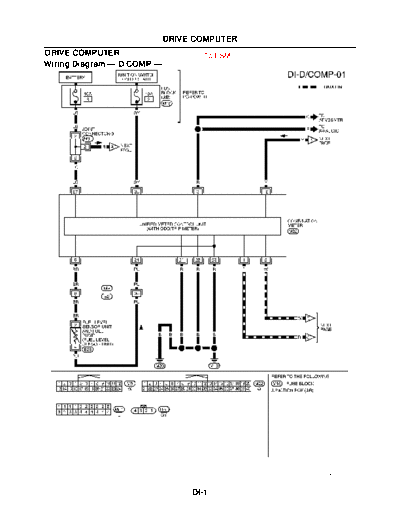

Wiring Diagram -- D/COMP --




                                               MKWA1548E




                                   DI-1
DRIVE COMPUTER




                 MKWA3090E




     DI-2
                                         DRIVE COMPUTER
Outside Air Temperature is not Displayed                            To ESM
1. CHECK OUTSIDE AIR TEMPERATURE SENSOR IN PUT SIGNAL
1.   Disconnect outside air temperature sensor connector.
2.   Turn ignition switch ON.
3.   Check voltage between outside air temperature sensor harness
     connector E52 terminal 3 (LG) and ground.
        3 (LG)
