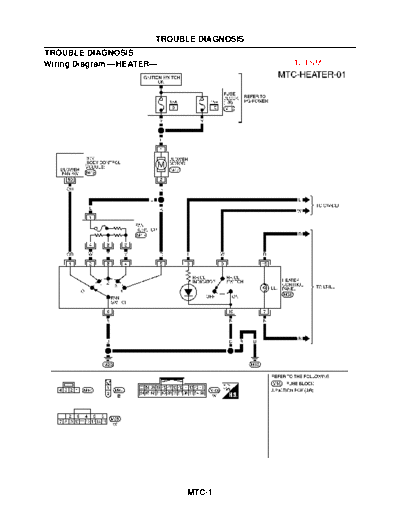

Image preview - the first page of the document
MTC-001

>> Download MTC-001 documenatation <<

Text preview - extract from the document

TROUBLE DIAGNOSIS
TROUBLE DIAGNOSIS
Wiring Diagram --HEATER-- To ESM

MJWA0114E

MTC-1
TROUBLE DIAGNOSIS
Wiring Diagram --A/C-- CR Engine Models To ESM

MJWA0115E

MTC-2
TROUBLE DIAGNOSIS

MJWA0019E

MTC-3
TROUBLE DIAGNOSIS
Wiring Diagram --A/C-- K9K Engine Models To ESM

MJWA0116E

MTC-4
TROUBLE DIAGNOSIS

MJWA0042E

MTC-5
TROUBLE DIAGNOSIS
Wiring Diagram --PTC/H-- To ESM

MJWA0145E

PTC heater function is intended to improve the heating performance with CTP electrical system for air heating
system which is broken down into several stages controlled by relays.

MTC-6
TROUBLE DIAGNOSIS
Blower Fan Motor System To ESM
INSPECTION PROCEDURE
Symptom: Blower fan motor does not operate.
1. START INSPECTION
Check blower fan motor operation at each fan speed.
1 : Blower fan motor does not operate at all.
2 : Blower fan motor does not operate at one of speeds 1 - 4.
Do inspection results indicate 1 or 2 above?
1 >> GO TO 2.
2 >> GO TO 6.

2. CHECK POWER SUPPLY CIRCUIT
Disconnect blower fan motor connector, turn ignition switch ON, and
check voltage between blower fan motor connector terminal and
ground.
Connector terminal Voltage
Blower fan motor
Ground Battery voltage
1

OK or NG
OK >> GO TO 3.
NG >> Check power supply circuit and 15A fuses [Nos. 9 and MJIB0124E
10, located in the fuse block (J/B)]. Refer to PG-4,
"POWER SUPPLY ROUTING" on ESM..
q If OK, check for open circuit in wiring harness. Repair or replace as necessary.

q If NG, replace fuse and check wiring harness for short circuit. Repair or replace as necessary.

3. CHECK CIRCUIT CONTINUITY
1. Turn the fan setting dial (fan switch) to any position except OFF.
2. Check continuity between blower fan motor connector terminal
and ground.

Connector terminal Continuity
Blower fan motor
2 (Without air conditioner) Ground Yes
1 (With air conditioner)
Does continuity exist?
MJIB0125E
YES >> GO TO 4.
NO >> GO TO 5.

MTC-7
TROUBLE DIAGNOSIS

4. CHECK BLOWER FAN MOTOR
Disconnect the blower fan motor connector, and check continuity
between blower fan motor terminals 1 and 2.
Connector terminal
Continuity
Blower fan motor
1 2 Yes

Does continuity exist?
YES >> End of trouble diagnosis
NO >> Replace the blower fan motor.
MJIB0126E

5. CHECK CIRCUIT CONTINUITY
Check continuity between blower fan motor connector terminal and
blower fan resistor terminal 1.
Connector terminal
Blower fan Continuity
Blower fan motor
Resistor
2 1 Yes
Does continuity exist?
YES >> GO TO 6.
NO >> Repair harness or connector. MJIB0127E

6. CHECK BLOWER FAN RESISTOR
Disconnect blower fan resistor connector, and check continuity
between blower fan resistor terminals 1 and 2, 3, 4.
Connector terminal
Continuity
Blower fan resistor
2 Approx. 0.32
1 3 Approx. 1.4
4 Approx. 2.7

Does continuity exist?
MJIB0128E
YES >> GO TO 7.
NO >> Replace blower fan resistor.

MTC-8
TROUBLE DIAGNOSIS

7. CHECK FAN SWITCH
Disconnect controller connector, and check continuity between con-
troller terminals 1 and 2, 3, 4, 5, 6.
Connector terminal
Condition Continuity
Controller
1 Fan: OFF
5 Fan: Speed 4
6 4 Fan: Speed 3 Yes
3 Fan: Speed 2
MJIA0181E
2 Fan: Speed 1
OK or NG
OK >> GO TO 8.
NG >> Replace controller.

8. CHECK CIRCUIT CONTINUITY
Check continuity between the controller and the blower fan resistor
terminals.
Connector terminal
Blower fan Continuity
Controller
Resistor
5 1
4 2
Yes
3 3
2 4 MJIB0129E

Does continuity exist?
YES >> GO TO 9.
NO >> Repair harness or connector.

9. CHECK FAN SWITCH GROUND CIRCUIT
Check continuity between controller terminal 6 and ground.
Connector terminal Continuity
Controller
Ground Yes
6
Does continuity exist?
YES >> End of trouble diagnosis
NO >> Repair harness or connector.

MJIA0183E

MTC-9
