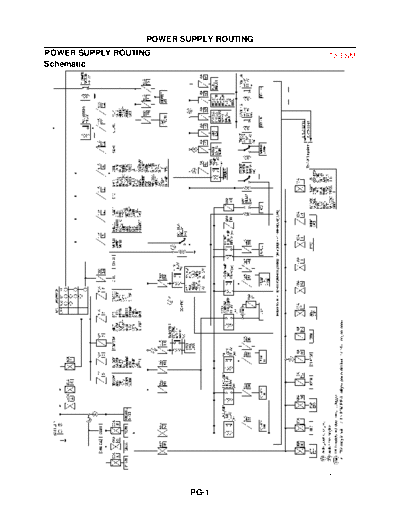

Image preview - the first page of the document
>> Download PG-005 documenatation <<
Text preview - extract from the document
POWER SUPPLY ROUTING
POWER SUPPLY ROUTING To ESM
Schematic
MKWA3101E
PG-1
POWER SUPPLY ROUTING
Wiring Diagram -- POWER --
BATTERY POWER SUPPLY -- IGNITION SW. IN ANY POSITION To ESM
MKWA3102E
PG-2
POWER SUPPLY ROUTING
MKWA1840E
PG-3
POWER SUPPLY ROUTING
MKWA1841E
PG-4
POWER SUPPLY ROUTING
MKWA1506E
PG-5
POWER SUPPLY ROUTING
MKWA1507E
PG-6
POWER SUPPLY ROUTING
MKWA3249E
PG-7
POWER SUPPLY ROUTING
ACCESSORY POWER SUPPLY -- IGNITION SW. IN "ACC" OR "ON" To ESM
MKWA1508E
PG-8
POWER SUPPLY ROUTING
IGNITION POWER SUPPLY -- IGNITION SW. IN "ON" AND/OR "START" To ESM
MKWA1843E
PG-9
POWER SUPPLY ROUTING
MKWA3250E
PG-10
POWER SUPPLY ROUTING
MKWA1511E
PG-11
POWER SUPPLY ROUTING
MKWA1844E
PG-12
POWER SUPPLY ROUTING
MKWA1513E
PG-13
HARNESS
HARNESS
Harness Layout
HOW TO READ HARNESS LAYOUTS To ESM
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
q Main Harness
q Engine Room Harness (Engine Compartment)
q Body Harness
q Body No.2 Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference. SEL252V
3. On the drawing, find the crossing of the grid reference letter col-
umn and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
CKIT0108E
PG-14
HARNESS
OUTLINE/CR ENGINE MODELS To ESM
MKWA1354E
PG-15
HARNESS
OUTLINE/K9K ENGINE MODELS
To ESM
MKWA1490E
PG-16
HARNESS
MAIN HARNESS/LHD MODELS
To ESM
MKWA3106E
PG-17
HARNESS
MKWA3107E
PG-18
HARNESS
MAIN HARNESS/RHD MODELS To ESM
MKWA3108E
PG-19
HARNESS
MKWA3109E
PG-20
HARNESS
ENGINE ROOM HARNESS/CR ENGINE MODELS To ESM
MKWA3110E
PG-21
HARNESS
MKWA3111E
PG-22
HARNESS
ENGINE ROOM HARNESS/K9K ENGINE MODELS To ESM
MKWA3112E
PG-23
HARNESS
MKWA3113E
PG-24
HARNESS
ENGINE CONTROL HARNESS/CR ENGINE MODELS To ESM
MKWA3114E
PG-25
HARNESS
MKWA3115E
PG-26
HARNESS
ENGINE CONTROL HARNESS/K9K ENGINE MODELS
To ESM
MKWA3116E
PG-27
HARNESS
MKWA3117E
PG-28
HARNESS
BODY HARNESS To ESM
MKWA3118E
PG-29
HARNESS
MKWA3119E
PG-30
HARNESS
MKWA3120E
PG-31
HARNESS
ROOM LAMP HARNESS To ESM
MKWA3121E
PG-32
HARNESS
FRONT DOOR HARNESS LH SIDE/LHD MODELS
To ESM
MKWA3122E
PG-33
HARNESS
FRONT DOOR HARNESS LH SIDE/RHD MODELS To ESM
MKWA3123E
PG-34
HARNESS
FRONT DOOR HARNESS RH SIDE/LHD MODELS
To ESM
MKWA3124E
PG-35
HARNESS
FRONT DOOR HARNESS RH SIDE/RHD MODELS
To ESM
MKWA3125E
PG-36
HARNESS
REAR DOOR HARNESS LH
To ESM
MKWA1488E
PG-37
HARNESS
REAR DOOR HARNESS RH
To ESM
MKWA1489E
PG-38
