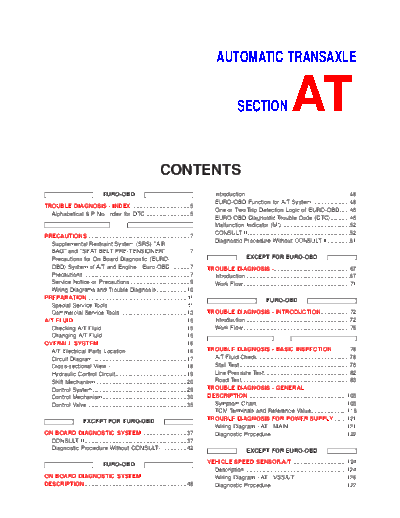

Image preview - the first page of the document
>> Download at documenatation <<
Text preview - extract from the document
AUTOMATIC TRANSAXLE
SECTION AT
CONTENTS
EURO-OBD Introduction ................................................................48
EURO-OBD Function for A/T System .......................48
TROUBLE DIAGNOSIS - INDEX ....................................5
One or Two Trip Detection Logic of EURO-OBD......48
Alphabetical & P No. Index for DTC ...........................5
EURO-OBD Diagnostic Trouble Code (DTC)............48
Malfunction Indicator (MI) ..........................................52
CONSULT-II ...............................................................52
PRECAUTIONS ...............................................................7
Diagnostic Procedure Without CONSULT-II..............61
Supplemental Restraint System (SRS) AIR
BAG and SEAT BELT PRE-TENSIONER...............7
Precautions for On Board Diagnostic (EURO- EXCEPT FOR EURO-OBD
OBD) System of A/T and Engine - Euro-OBD -..........7 TROUBLE DIAGNOSIS -...............................................67
Precautions ..................................................................7 Introduction ................................................................67
Service Notice or Precautions .....................................9 Work Flow..................................................................71
Wiring Diagrams and Trouble Diagnosis...................10
PREPARATION .............................................................11 EURO-OBD
Special Service Tools ................................................11
Commercial Service Tools .........................................13 TROUBLE DIAGNOSIS - INTRODUCTION..................72
A/T FLUID ......................................................................15 Introduction ................................................................72
Checking A/T Fluid ....................................................15 Work Flow..................................................................76
Changing A/T Fluid ....................................................15
OVERALL SYSTEM ......................................................16
A/T Electrical Parts Location .....................................16 TROUBLE DIAGNOSIS - BASIC INSPECTION ...........78
Circuit Diagram ..........................................................17 A/T Fluid Check .........................................................78
Cross-sectional View -...............................................18 Stall Test ....................................................................78
Hydraulic Control Circuit............................................19 Line Pressure Test.....................................................82
Shift Mechanism ........................................................20 Road Test...................................................................83
Control System ..........................................................29 TROUBLE DIAGNOSIS - GENERAL
Control Mechanism....................................................30 DESCRIPTION .............................................................103
Control Valve .............................................................35 Symptom Chart........................................................103
TCM Terminals and Reference Value......................116
EXCEPT FOR EURO-OBD TROUBLE DIAGNOSIS FOR POWER SUPPLY........121
Wiring Diagram - AT - MAIN....................................121
ON BOARD DIAGNOSTIC SYSTEM ............................37 Diagnostic Procedure ..............................................122
CONSULT-II ...............................................................37
Diagnostic Procedure Without CONSULT-II..............42 EXCEPT FOR EURO-OBD
EURO-OBD VEHICLE SPEED SENSOR.A/T..................................124
Description ...............................................................124
ON BOARD DIAGNOSTIC SYSTEM Wiring Diagram - AT - VSSA/T ................................126
DESCRIPTION ...............................................................48 Diagnostic Procedure ..............................................127
CONTENTS (Cont'd)
VHCL SPEED SEN.MTR VEHICLE ............................129 DTC P0710 A/T FLUID TEMPERATURE SENSOR
Description ...............................................................129 CIRCUIT .......................................................................187
Wiring Diagram - AT - VSSMTR..............................130 Description ...............................................................187
Diagnostic Procedure ..............................................131 Wiring Diagram - AT - FTS ......................................189
THROTTLE POSITION ................................................132 Diagnostic Procedure ..............................................190
Description ...............................................................132 Component Inspection.............................................192
Wiring Diagram - AT - TPS......................................134 DTC P0720 VEHICLE SPEED SENSOR.A/T..............193
Diagnostic Procedure ..............................................135 Description ...............................................................193
Component Inspection.............................................139 Wiring Diagram - AT - VSSA/T ................................195
SHIFT SOLENOID VALVE A ......................................140 Diagnostic Procedure ..............................................196
Description ...............................................................140 DTC P0725 ENGINE SPEED SIGNAL .......................198
Wiring Diagram - AT - SSV/A ..................................142 Description ...............................................................198
Diagnostic Procedure ..............................................143 Wiring Diagram - AT - ENGSS ................................199
Component Inspection.............................................145 Diagnostic Procedure ..............................................200
SHIFT SOLENOID VALVE B ......................................146 DTC P0731 A/T 1ST GEAR FUNCTION ....................202
Description ...............................................................146 Description ...............................................................202
Wiring Diagram - AT - SSV/B ..................................148 Wiring Diagram - AT - 1ST ......................................205
Diagnostic Procedure ..............................................149 Diagnostic Procedure ..............................................206
Component Inspection.............................................151 Component Inspection.............................................207
OVERRUN CLUTCH SOLENOID................................152 DTC P0732 A/T 2ND GEAR FUNCTION....................209
Description ...............................................................152 Description ...............................................................209
Wiring Diagram - AT - OVRCSV..............................153 Wiring Diagram - AT - 2ND......................................212
Diagnostic Procedure ..............................................154 Diagnostic Procedure ..............................................213
Component Inspection.............................................156 Component Inspection.............................................214
TORQUE CONVERTER CLUTCH...............................157 DTC P0733 A/T 3RD GEAR FUNCTION....................215
Description ...............................................................157 Description ...............................................................215
Wiring Diagram - AT - TCV......................................159 Wiring Diagram - AT - 3RD......................................218
Diagnostic Procedure ..............................................160 Diagnostic Procedure ..............................................219
Component Inspection.............................................162 Component Inspection.............................................220
BATT/FLUID TEMP SEN (A/T FLUID TEMP DTC P0734 A/T 4TH GEAR FUNCTION ....................221
SENSOR CIRCUIT AND TCM POWER SOURCE) ....163 Description ...............................................................221
Description ...............................................................163 Wiring Diagram - AT - 4TH ......................................225
Wiring Diagram - AT - BA/FTS ................................165 Diagnostic Procedure ..............................................226
Diagnostic Procedure ..............................................166 Component Inspection.............................................230
Component Inspection.............................................169 DTC P0740 TORQUE CONVERTER CLUTCH ..........231
ENGINE SPEED SIGNAL............................................170 Description ...............................................................231
Description ...............................................................170 Wiring Diagram - AT - TCV......................................233
Wiring Diagram - AT - ENGSS ................................171 Diagnostic Procedure ..............................................234
Diagnostic Procedure ..............................................172 Component Inspection.............................................236
LINE PRESSURE SOLENOID ....................................174 DTC P0745 LINE PRESSURE SOLENOID VALVE ...237
Description ...............................................................174 Description ...............................................................237
Wiring Diagram - AT - LPSV....................................176 Wiring Diagram - AT - LPSV....................................239
Diagnostic Procedure ..............................................177 Diagnostic Procedure ..............................................240
Component Inspection.............................................180 Component Inspection.............................................243
DTC P0750 SHIFT SOLENOID VALVE A ..................244
EURO-OBD Description ...............................................................244
Wiring Diagram - AT - SSV/A ..................................246
DTC P0705 PARK/NEUTRAL POSITION (PNP) Diagnostic Procedure ..............................................247
SWITCH .......................................................................181 Component Inspection.............................................249
Description ...............................................................181 DTC P0755 SHIFT SOLENOID VALVE B ..................250
Wiring Diagram - AT - PNP/SW...............................183 Description ...............................................................250
Diagnostic Procedure ..............................................184 Wiring Diagram - AT - SSV/B ..................................252
Component Inspection.............................................186
AT-2
CONTENTS (Cont'd)
Diagnostic Procedure ..............................................253 14. Lock-up Is Not Released...................................319
Component Inspection.............................................255 15. Engine Speed Does Not Return To Idle (Light
DTC P1705 THROTTLE POSITION SENSOR ...........256 Braking D4 -> D3).....................................................320
Description ...............................................................256 16. Vehicle Does Not Start From D1 .......................322
Wiring Diagram - AT - TPS......................................259 17. A/T Does Not Shift: D4 -> D3, When
Diagnostic Procedure ..............................................260 Overdrive Control Switch ON -> OFF ...............323
Component Inspection.............................................264 18. A/T Does Not Shift: D3 -> 22, When Selector
DTC P1760 OVERRUN CLUTCH SOLENOID Lever D -> 2 Position.........................................324
VALVE..........................................................................265 19. A/T Does Not Shift: 22 -> 11, When Selector
Description ...............................................................265 Lever 2 -> 1 Position .........................................325
Wiring Diagram - AT - OVRCSV..............................267 20. Vehicle Does Not Decelerate By Engine
Diagnostic Procedure ..............................................268 Brake........................................................................326
Component Inspection.............................................270 21. TCM Self-diagnosis Does Not Activate (PNP,
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP Overdrive Control and Throttle Position Switches
SENSOR CIRCUIT AND TCM POWER SOURCE) ....271 Circuit Checks) ........................................................326
Description ...............................................................271 A/T SHIFT LOCK SYSTEM.........................................335
Wiring Diagram - AT - BA/FTS ................................273 Description ...............................................................335
Diagnostic Procedure ..............................................274 Shift Lock System Electrical Parts Location............335
Component Inspection.............................................277 Wiring Diagram - SHIFT -........................................336
DTC VHCL SPEED SEN.MTR VEHICLE SPEED ......278 Diagnostic Procedure ..............................................337
Description ...............................................................278 KEY INTERLOCK CABLE ..........................................341
Wiring Diagram - AT - VSSMTR..............................280 Components.............................................................341
Diagnostic Procedure ..............................................281 Removal...................................................................341
Installation................................................................342
ON-VEHICLE SERVICE ..............................................343
DTC CONTROL UNIT (RAM), CONTROL UNIT Control Valve Assembly and Accumulators.............343
(ROM)...........................................................................282 Control Cable Adjustment........................................344
Description ...............................................................282 Park/Neutral Position (PNP) Switch Adjustment .....344
Diagnostic Procedure ..............................................282 Differential Side Oil Seal Replacement ...................345
DTC CONTROL UNIT (EEP ROM) .............................284 Revolution Sensor Replacement .............................345
Description ...............................................................284 REMOVAL AND INSTALLATION ...............................346
Diagnostic Procedure ..............................................285 Removal...................................................................346
TROUBLE DIAGNOSES FOR SYMPTOMS ...............286 Installation................................................................347
Wiring Diagram - AT - NONDTC .............................286 OVERHAUL .................................................................349
1. O/D OFF Indicator Lamp Does Not Come On....288 Components-1 .........................................................349
2. Engine Cannot Be Started In P and N Components-2 .........................................................350
Position ....................................................................291 Components-3 .........................................................351
3. In P Position, Vehicle Moves Forward Or Oil Channel ..............................................................352
Backward When Pushed .........................................292 Locations of Adjusting Shims, Needle Bearings,
4. In N Position, Vehicle Moves ...........................293 Thrust Washers and Snap Rings ............................353
5. Large Shock. N -> R Position .......................295 DISASSEMBLY............................................................354
6. Vehicle Does Not Creep Backward In R REPAIR FOR COMPONENT PARTS .........................368
Position ....................................................................297 Manual Shaft............................................................368
7. Vehicle Does Not Creep Forward In D, 2 Oil Pump ..................................................................371
Or 1 Position.........................................................300 Control Valve Assembly...........................................375
8. Vehicle Cannot Be Started From D1 ...................303 Control Valve Upper Body .......................................384
9. A/T Does Not Shift: D1 -> D2 Or Does Not Control Valve Lower Body .......................................388
Kickdown: D4 -> D2..................................................306 Reverse Clutch ........................................................390
10. A/T Does Not Shift: D2 -> D3.............................309 High Clutch ..............................................................394
11. A/T Does Not Shift: D3 -> D4 .............................312 Forward Clutch and Overrun Clutch........................399
12. A/T Does Not Perform Lock-up .........................315 Low & Reverse Brake..............................................406
13. A/T Does Not Hold Lock-up Condition ..............317
AT-3
CONTENTS (Cont'd)
Rear Internal Gear, Forward Clutch Hub and Clutch and Brakes ...................................................451
Overrun Clutch Hub.................................................410 Clutch and Brake Return Springs............................452
Output Shaft, Idler Gear, Reduction Pinion Gear Oil Pump ..................................................................453
and Bearing Retainer...............................................414 Input Shaft ...............................................................453
Band Servo Piston Assembly ..................................419 Planetary Carrier......................................................453
Final Drive................................................................424 Final Drive................................................................453
ASSEMBLY..................................................................428 Reduction Pinion Gear ............................................455
Assembly (1)............................................................428 Output Shaft.............................................................456
Adjustment (1) .........................................................429 Bearing Retainer......................................................457
Assembly (2)............................................................434 Total End Play..........................................................457
Adjustment (2) .........................................................438 Reverse Clutch End Play ........................................457
Assembly (3)............................................................442 Accumulator .............................................................457
Assembly (4)............................................................444 Band Servo ..............................................................458
SERVICE DATA AND SPECIFICATIONS (SDS) .......449 Removal and Installation .........................................458
General Specifications.............................................449 Shift Solenoid Valves...............................................458
Shift Schedule..........................................................449 Resistance ...............................................................458
Stall Revolution........................................................450 ATF Temp. Sensor ...................................................458
Line Pressure...........................................................450 Revolution Sensor ...................................................458
Control Valves..........................................................450 Dropping Resistor ....................................................458
AT-4
TROUBLE DIAGNOSIS -- INDEX EURO-OBD
Alphabetical & P No. Index for DTC
Alphabetical & P No. Index for DTC NJAT0243
ALPHABETICAL INDEX FOR DTC NJAT0243S01
Check if the vehicle is a model with Euro-OBD system or not by the
"Type approval number" on the identification plate. Refer to GI-40,
"IDENTIFICATION PLATE".
Type approval number Model
Available With Euro-OBD system
Not available (blank) Without Euro-OBD system
DTC
Items
CONSULT-II Reference page
(CONSULT-II screen terms)
GST*1
A/T 1ST GR FNCTN P0731 AT-202
A/T 2ND GR FNCTN P0732 AT-209
A/T 3RD GR FNCTN P0733 AT-215
A/T 4TH GR FNCTN P0734 AT-221
ATF TEMP SEN/CIRC P0710 AT-187
ENGINE SPEED SIG P0725 AT-198
L/PRESS SOL/CIRC P0745 AT-237
O/R CLTCH SOL/CIRC P1760 AT-265
PNP SW/CIRC P0705 AT-181
SFT SOL A/CIRC*2 P0750 AT-244
SFT SOL B/CIRC*2 P0755 AT-250
TCC SOLENOID/CIRC P0740 AT-231
TP SEN/CIRC A/T*2 P1705 AT-256
VEH SPD SEN/CIR AT*3 P0720 AT-193
*1: These numbers are prescribed by SAE J2012.
*2: When the fail-safe operation occurs, the MIL illuminates.
*3: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at
the same time.
AT-5
TROUBLE DIAGNOSIS -- INDEX EURO-OBD
Alphabetical & P No. Index for DTC (Cont'd)
P NO. INDEX FOR DTC =NJAT0243S02
Check if the vehicle is a model with Euro-OBD system or not by the
"Type approval number" on the identification plate. Refer to GI-40,
"IDENTIFICATION PLATE".
Type approval number Model
Available With Euro-OBD system
Not available (blank) Without Euro-OBD system
DTC
Items
CONSULT-II Reference page
(CONSULT-II screen terms)
GST*1
P0705 PNP SW/CIRC AT-181
P0710 ATF TEMP SEN/CIRC AT-187
P0720 VEH SPD SEN/CIR AT*3 AT-193
P0725 ENGINE SPEED SIG AT-198
P0731 A/T 1ST GR FNCTN AT-202
P0732 A/T 2ND GR FNCTN AT-209
P0733 A/T 3RD GR FNCTN AT-215
P0734 A/T 4TH GR FNCTN AT-221
P0740 TCC SOLENOID/CIRC AT-231
P0745 L/PRESS SOL/CIRC AT-237
P0750 SFT SOL A/CIRC*2 AT-244
P0755 SFT SOL B/CIRC*2 AT-250
P1705 TP SEN/CIRC A/T*2 AT-256
P1760 O/R CLTCH SOL/CIRC AT-265
*1: These numbers are prescribed by SAE J2012.
*2: When the fail-safe operation occurs, the MIL illuminates.
*3: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at
the same time.
AT-6
PRECAUTIONS
Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NJAT0249
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL N16 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Precautions for On Board Diagnostic (EURO-
OBD) System of A/T and Engine -- Euro-OBD
-- NJAT0245
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
+ Be sure to turn the ignition switch "OFF" and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc.
will cause the MIL to light up.
+ Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
+ Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
+ Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system,
etc.
+ Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Precautions NJAT0246
+ Before connecting or disconnecting the TCM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the
TCM. Because battery voltage is applied to TCM even if
ignition switch is turned off.
SEF289H
AT-7
PRECAUTIONS
Precautions (Cont'd)
+ When connecting or disconnecting pin connectors into or
from TCM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on TCM
pin terminal, when connecting pin connectors.
AAT470A
+ Before replacing TCM, perform TCM input/output signal
inspection and make sure whether TCM functions prop-
erly or not. (See page AT-116.)
MEF040DA
+ After performing each TROUBLE DIAGNOSIS, perform
"DTC (Diagnostic Trouble Code) CONFIRMATION PROCE-
DURE".
The DTC should not be displayed in the "DTC CONFIRMA-
TION PROCEDURE" if the repair is completed.
SAT964I
+ Before proceeding with disassembly, thoroughly clean the out-
side of the transaxle. It is important to prevent the internal parts
from becoming contaminated by dirt or other foreign matter.
+ Disassembly should be done in a clean work area.
+ Use lint-free cloth or towels for wiping parts clean. Common
shop rags can leave fibers that could interfere with the opera-
tion of the transaxle.
+ Place disassembled parts in order for easier and proper
assembly.
+ All parts should be carefully cleaned with a general purpose,
non-flammable solvent before inspection or reassembly.
+ Gaskets, seals and O-rings should be replaced any time the
transaxle is disassembled.
+ It is very important to perform functional tests whenever they
are indicated.
+ The valve body contains precision parts and requires extreme
care when parts are removed and serviced. Place disas-
sembled valve body parts in order for easier and proper
assembly. Care will also prevent springs and small parts from
becoming scattered or lost.
+ Properly installed valves, sleeves, plugs, etc. will slide along
bores in valve body under their own weight.
+ Before assembly, apply a coat of recommended ATF to all
AT-8
PRECAUTIONS
Precautions (Cont'd)
parts. Apply petroleum jelly to protect O-rings and seals, or
hold bearings and washers in place during assembly. Do not
use grease.
+ Extreme care should be taken to avoid damage to O-rings,
seals and gaskets when assembling.
+ After overhaul, refill the transaxle with new ATF.
+ When the A/T drain plug is removed, only some of the fluid is
drained. Old A/T fluid will remain in torque converter and ATF
cooling system.
Always follow the procedures under "Changing A/T Fluid" in the
AT section when changing A/T fluid. Refer to "Changing A/T
Fluid", AT-15.
Service Notice or Precautions NJAT0247
FAIL-SAFE NJAT0247S01
The TCM has an electronic Fail-Safe (limp home mode). This allows the vehicle to be driven even if a major
electrical input/output device circuit is damaged.
Under Fail-Safe, the vehicle always runs in third gear, even with a shift lever position of "1", "2" or "D". The
customer may complain of sluggish or poor acceleration.
When the ignition key is turned "ON" following Fail-Safe operation, O/D OFF indicator lamp blinks for about
8 seconds. (For EXCEPT FOR EURO-OBD; "SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)",
refer to AT-42 and for EURO-OBD; "TCM SELF-DIAGNOSTIC PROCEDURE (No Tools)", refer to AT-61.)
Fail-Safe may occur without electrical circuit damage if the vehicle is driven under extreme conditions (such
as excessive wheel spin followed by sudden braking). To recover normal shift pattern, turn the ignition key
"OFF" for 5 seconds, then "ON".
The blinking of the O/D OFF indicator lamp for about 8 seconds will appear only once and be cleared. The
customer may resume normal driving conditions.
Always follow the "WORK FLOW" [Refer to AT-71 (Except for Euro-OBD), AT-76 (EURO-OBD).]
The SELF-DIAGNOSIS results will be as follows:
The first SELF-DIAGNOSIS will indicate damage to the vehicle speed sensor or the revolution sensor.
During the next SELF-DIAGNOSIS, performed after checking the sensor, no damages will be indicated.
TORQUE CONVERTER SERVICE NJAT0247S02
The torque converter should be replaced under any of the following conditions:
+ External leaks in the hub weld area.
+ Converter hub is scored or damaged.
+ Converter pilot is broken, damaged or fits poorly into crankshaft.
+ Steel particles are found after flushing the cooler and cooler lines.
+ Pump is damaged or steel particles are found in the converter.
+ Vehicle has TCC shudder and/or no TCC apply. Replace only after all hydraulic and electrical diagnoses
have been made. (Converter clutch material may be glazed.)
+ Converter is contaminated with engine coolant containing antifreeze.
+ Internal failure of stator roller clutch.
+ Heavy clutch debris due to overheating (blue converter).
+ Steel particles or clutch lining material found in fluid filter or on magnet when no internal parts in unit are
worn or damaged -- indicates that lining material came from converter.
The torque converter should not be replaced if:
AT-9
PRECAUTIONS
Service Notice or Precautions (Cont'd)
+ The fluid has an odor, is discolored, and there is no evidence of metal or clutch facing particles.
+ The threads in one or more of the converter bolt holes are damaged.
+ Transaxle failure did not display evidence of damaged or worn internal parts, steel particles or clutch plate
lining material in unit and inside the fluid filter.
+ Vehicle has been exposed to high mileage (only). The exception may be where the torque converter clutch
dampener plate lining has seen excess wear by vehicles operated in heavy and/or constant traffic, such
as taxi, delivery or police use.
EURO-OBD SELF-DIAGNOSIS -- EURO-OBD -- NJAT0247S04
+ A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the O/D OFF indicator or the malfunction indicator (MI). Refer to the table on AT-53
for the indicator used to display each self-diagnostic result.
+ The self-diagnostic results indicated by the MI are automatically stored in both the ECM and TCM memo-
ries.
Always perform the procedure "HOW TO ERASE DTC" on AT-50 to complete the repair and avoid
unnecessary blinking of the MI.
+ The following self-diagnostic items can be detected using ECM self-diagnostic results mode* only when
the O/D OFF indicator lamp does not indicate any malfunctions.
- PNP switch
- A/T 1st, 2nd, 3rd, or 4th gear function
*: For details of EURO-OBD, refer to EC-57, "ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION".
+ Certain systems and components, especially those related to EURO-OBD, may use a new style
slide-locking type harness connector.
For description and how to disconnect, refer to EL-5, "HARNESS CONNECTOR".
Wiring Diagrams and Trouble Diagnosis NJAT0248
When you read wiring diagrams, refer to the following:
+ GI-12, "HOW TO READ WIRING DIAGRAMS"
+ EL-10, "POWER SUPPLY ROUTING"
When you perform trouble diagnosis, refer to the following:
+ GI-32, "HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS"
+ GI-21, "HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT"
AT-10
PREPARATION
Special Service Tools
Special Service Tools NJAT0006
Tool number
Description
Tool name
ST2505S001 Measuring line pressure
Oil pressure gauge set
1 ST25051001
Oil pressure gauge
2 ST25052000
Hose
3 ST25053000
Joint pipe
4 ST25054000
Adapter
5 ST25055000
Adapter NT097
KV31103000 Installing differential oil seal
Drift (Use with ST35325000.)
a: 59 mm (2.32 in) dia.
b: 49 mm (1.93 in) dia.
NT105
ST35325000 Installing differential oil seal
Drift (Use with KV31103000.)
a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12 x 1.5P
NT417
KV31103200 Removing and installing clutch return spring
Clutch spring compres- a: 320 mm (12.60 in)
sor b: 174 mm (6.85 in)
NT423
ST23540000 Removing and installing parking rod plate, manual
Pin punch plate and differential pinion mate shaft retaining
pins
a: 2.3 mm (0.091 in) dia.
b: 4 mm (0.16 in) dia.
NT442
KV32101000 Installing throttle lever and manual shaft retaining
Pin punch pins
a: 4 mm (0.16 in) dia.
NT410
ST25710000 Aligning groove of manual shaft and hole of trans-
Pin punch mission case
a: 2 mm (0.08 in) dia.
NT410
AT-11
PREPARATION
Special Service Tools (Cont'd)
Tool number
Description
Tool name
ST3306S001 Removing differential side bearing inner race
Differential side bearing a: 39 mm (1.54 in) dia.
puller set b: 29.5 mm (1.161 in) dia.
1 ST33051001 c: 130 mm (5.12 in)
Puller d: 135 mm (5.31 in)
2 ST33061000 e: 120 mm (4.72 in)
Adapter
NT745
KV381054S0 + Removing idler gear bearing outer race
Puller + Removing differential side oil seals
+ Removing differential side bearing outer race
+ Removing needle bearing from bearing retainer
a: 250 mm (9.84 in)
b: 160 mm (6.30 in)
NT414
ST27180001 + Removing idler gear
Puller a: 100 mm (3.94 in)
b: 110 mm (4.33 in)
c: M8 x 1.25P
NT424
ST30031000 Removing reduction gear bearing inner race
Puller a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.
NT411
ST35272000 + Installing reduction gear bearing inner race
Drift + Installing idler gear bearing inner race
a: 72 mm (2.83 in) dia.
b: 35.5 mm (1.398 in) dia.
NT426
ST37830000 Installing idler gear bearing outer race
Drift a: 62 mm (2.44 in) dia.
b: 39 mm (1.54 in) dia.
NT427
AT-12
PREPARATION
Special Service Tools (Cont'd)
Tool number
Description
Tool name
ST35321000 Installing output shaft bearing
Drift a: 49 mm (1.93 in) dia.
b: 41 mm (1.61 in) dia.
NT073
ST30633000 Installing differential side bearing outer race
Drift a: 67 mm (2.64 in) dia.
b: 49 mm (1.93 in) dia.
NT073
ST35271000 + Installing idler gear
Drift a: 72 mm (2.83 in) dia.
b: 63 mm (2.48 in) dia.
NT115
ST33400001 + Installing oil pump housing oil seal
Drift a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
NT115
KV38105710 + Measuring clearance between side gear and
Preload adapter differential case
NT087
KV40104840 + Installing output shaft bearing outer race onto
Drift bearing retainer
a: 49 mm (1.93 in) dia.
b: 42 mm (1.65 in) dia.
NT108
Commercial Service Tools NJAT0007
Tool name Description
Puller + Removing idler gear bearing inner race
+ Removing and installing band servo
piston snap ring
NT077
AT-13
PREPARATION
Commercial Service Tools (Cont'd)
Tool name Description
Drift Removing idler gear bearing inner race
a: 34 mm (1.34 in) dia.
NT109
Drift Installing differential left side bearing
a: 86 mm (3.39 in) dia.
b: 80 mm (3.15 in) dia.
NT115
Drift Installing differential right side bearing
a: 46 mm (1.81 in) dia.
b: 40 mm (1.57 in) dia.
NT115
AT-14
A/T FLUID
Checking A/T Fluid
Checking A/T Fluid NJAT0228
1. Warm up engine.
2. Check for fluid leakage.
3. Before driving, fluid level can be checked at fluid temperatures
of 30 to 50◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
