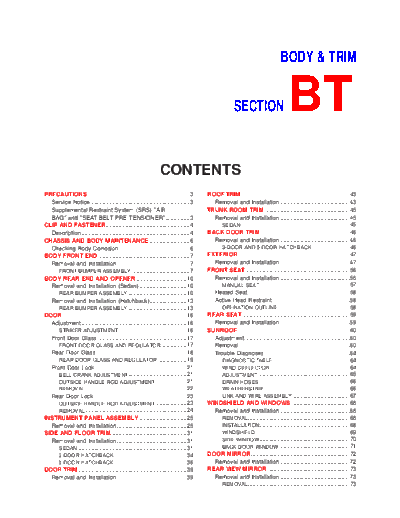

Image preview - the first page of the document
>> Download bt documenatation <<Text preview - extract from the document BODY & TRIM
SECTION BT
CONTENTS
PRECAUTIONS ...............................................................3 ROOF TRIM ...................................................................43
Service Notice..............................................................3 Removal and Installation ...........................................43
Supplemental Restraint System (SRS) AIR TRUNK ROOM TRIM .....................................................45
BAG and SEAT BELT PRE-TENSIONER...............3 Removal and Installation ...........................................45
CLIP AND FASTENER....................................................4 SEDAN ...................................................................45
Description ...................................................................4 BACK DOOR TRIM .......................................................46
CHASSIS AND BODY MAINTENANCE .........................6 Removal and Installation ...........................................46
Checking Body Corrosion............................................6 3-DOOR AND 5-DOOR HATCHBACK .......................46
BODY FRONT END.........................................................7 EXTERIOR .....................................................................47
Removal and Installation .............................................7 Removal and Installation ...........................................47
FRONT BUMPER ASSEMBLY ....................................7 FRONT SEAT ................................................................56
BODY REAR END AND OPENER................................10 Removal and Installation ...........................................56
Removal and Installation (Sedan) .............................10 MANUAL SEAT........................................................57
REAR BUMPER ASSEMBLY ....................................10 Heated Seat...............................................................58
Removal and Installation (Hatchback).......................13 Active Head Restraint................................................58
REAR BUMPER ASSEMBLY ....................................13 OPERATION OUTLINE ............................................58
DOOR.............................................................................16 REAR SEAT...................................................................59
Adjustment .................................................................16 Removal and Installation ...........................................59
STRIKER ADJUSTMENT ..........................................16 SUNROOF......................................................................60
Front Door Glass .......................................................17 Adjustment .................................................................60
FRONT DOOR GLASS AND REGULATOR ................17 Removal.....................................................................60
Rear Door Glass........................................................18 Trouble Diagnoses.....................................................64
REAR DOOR GLASS AND REGULATOR ..................19 DIAGNOSTIC TABLE................................................64
Front Door Lock.........................................................21 WIND DEFLECTOR .................................................64
BELL CRANK ADJUSTMENT ....................................21 ADJUSTMENT .........................................................65
OUTSIDE HANDLE ROD ADJUSTMENT ...................21 DRAIN HOSES ........................................................66
REMOVAL ...............................................................22 WEATHERSTRIP .....................................................66
Rear Door Lock .........................................................23 LINK AND WIRE ASSEMBLY ....................................67
OUTSIDE HANDLE ROD ADJUSTMENT ...................23 WINDSHIELD AND WINDOWS ....................................68
REMOVAL ...............................................................24 Removal and Installation ...........................................68
INSTRUMENT PANEL ASSEMBLY .............................25 REMOVAL ...............................................................68
Removal and Installation ...........................................25 INSTALLATION........................................................68
SIDE AND FLOOR TRIM...............................................31 WINDSHIELD ..........................................................69
Removal and Installation ...........................................31 SIDE WINDOW ........................................................70
SEDAN ...................................................................31 BACK DOOR WINDOW ............................................71
3-DOOR HATCHBACK .............................................34 DOOR MIRROR .............................................................72
5-DOOR HATCHBACK .............................................36 Removal and Installation ...........................................72
DOOR TRIM ...................................................................39 REAR VIEW MIRROR ...................................................73
Removal and Installation ...........................................39 Removal and Installation ...........................................73
REMOVAL ...............................................................73
CONTENTS (Cont'd)
INSTALLATION........................................................73 ENGINE COMPARTMENT ........................................75
BODY (ALIGNMENT) ....................................................74 UNDERBODY ..........................................................77
Alignment ...................................................................74
BT-2
PRECAUTIONS
Service Notice
Service Notice NJBT0001
+ When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
+ Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil
or damage them.
+ Apply sealing compound where necessary when installing parts.
+ When applying sealing compound, be careful that the sealing compound does not protrude from parts.
+ When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NJBT0002
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL N16 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
BT-3
CLIP AND FASTENER
Description
Description NJBT0003
+ Clips and fasteners in BT section correspond to the following numbers and symbols.
+ Replace any clips and/or fasteners which are damaged during removal or installation.
Symbol No. Shapes Removal & Installation
C101
SBF302H
SBF367BA
C103
SBT095
SBF423H
C203
SBF258G
SBF708E
C205
MBT080A SBF638CA
C206
MBF519B
MBF520B
BT-4
CLIP AND FASTENER
Description (Cont'd)
Symbol No. Shapes Removal & Installation
CE103
SBF104B
SBF147B
CF110
SBF648B
SBF649B
CF118
SBF151D SBF259G
CR103
SBF768B
SBF770B
BT-5
CHASSIS AND BODY MAINTENANCE
Checking Body Corrosion
Checking Body Corrosion NJBT0033
Visually check the body sheet metal panel for corrosion, paint damage (scratches, chipping, rubbing, etc.) or
damage to the anti-corrosion materials. In particular, check the following locations.
Hemmed portion
Hood front end, door lower end, trunk lid rear end, etc.
Panel joint
Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine
compartment, etc.
Panel edge
Trunk lid opening, sunroof opening, fender wheelarch flange, fuel filler lid flange, around holes in panel, etc.
Parts contact
Waist molding, windshield molding, bumper, etc.
Protectors
Damage or condition of mudguard, fender protector, chipping protector, etc.
Anti-corrosion materials
Damage or separation of anti-corrosion materials under the body.
Drain holes
Condition of drain holes at door and side sill.
When repairing corroded areas, refer to the Corrosion Repair Manual.
BT-6
BODY FRONT END
Removal and Installation
Removal and Installation NJBT0004
+ When removing or installing hood, place a cloth or other padding on hood. This prevents vehicle body from
being scratched.
+ Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
+ Hood adjustment: Adjust at hinge portion.
+ Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
locks engaging mechanism.
+ Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.
FRONT BUMPER ASSEMBLY NJBT0004S01
1. Remove clips securing front grille, then remove front grille.
2. Remove front turn signal lamp, then disconnect harness connectors.
3. Remove clips and screws securing left and right sides of fender protectors.
4. Remove clips and screws securing left and right sides of fender protectors in wheelhoulse.
5. Remove screws securing left and right front fenders to bumper fascia.
6. Remove screws securing left and right radiator core support side to bumper fascia.
7. Remove bolts securing radiator core support lower to bumper fascia.
8. Remove clips securing radiator core support upper to bumper fascia.
9. Extract bumper fascia assembly. Then disconnect harness connectors. (Models with fog lamp assembly)
10. Remove energy absorber. (Where fitted)
11. Remove bolts and hooks securing the headlamp assembly, then disconnect harness connectors. In
case of headlamp bracket breakage, repair of the headlamp unit is possible by means of the bracket repair
kit.
Headlamp bracket repair kit part number:
KE260
