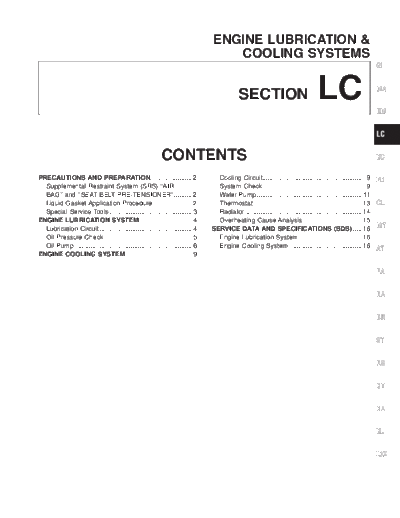

Image preview - the first page of the document
>> Download lc documenatation <<Text preview - extract from the document ENGINE LUBRICATION &
COOLING SYSTEMS
GI
SECTION LC MA
EM
LC
CONTENTS EC
PRECAUTIONS AND PREPARATION....................... 2 Cooling Circuit......................................................... 9 FE
Supplemental Restraint System (SRS) ``AIR System Check......................................................... 9
BAG'' and ``SEAT BELT PRE-TENSIONER''.......... 2 Water Pump .......................................................... 11
Liquid Gasket Application Procedure...................... 2 Thermostat ............................................................ 13 CL
Special Service Tools.............................................. 3 Radiator................................................................. 14
ENGINE LUBRICATION SYSTEM ............................. 4 Overheating Cause Analysis................................. 15
Lubrication Circuit ................................................... 4 SERVICE DATA AND SPECIFICATIONS (SDS) ..... 16 MT
Oil Pressure Check................................................. 5 Engine Lubrication System ................................... 16
Oil Pump ................................................................. 6 Engine Cooling System ........................................ 16 AT
ENGINE COOLING SYSTEM..................................... 9
FA
RA
BR
ST
RS
BT
HA
EL
IDX
PRECAUTIONS AND PREPARATION
Supplemental Restraint System (SRS) ``AIR
BAG'' and ``SEAT BELT PRE-TENSIONER''
The Supplemental Restraint System such as ``AIR BAG'' and ``SEAT BELT PRE-TENSIONER'' used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. The SRS composition which is available to NISSAN MODEL L30 is as follows (The
composition varies according to the destination and optional equipment.):
q For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the
steering wheel), front passenger air bag module (located on the instrument panel on passenger side),
seat belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
q For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side
of front seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this service
manual.
WARNING:
q To avoid rendering the SRS inoperative, which could increase the risk of personal injury or
death in the event of a collision which would result in air bag inflation, all maintenance should
be performed by an authorized NISSAN dealer. For removal of Spiral cable and Air Bag Module,
see the RS section.
q Improper maintenance, including incorrect removal and installation of the SRS, can lead to
personal injury caused by unintentional activation of the system.
q Do not use electrical test equipment on any circuit related to the SRS unless instructed to in
this Service Manual. Spiral cable and wiring harnesses (except ``SEAT BELT PRE-TEN-
SIONER'') covered with yellow insulation either just before the harness connectors or for the
complete harness are related to the SRS.
Liquid Gasket Application Procedure
a. Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.
b. Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine RTV silicone sealant Part No. 999MP-A7007
or equivalent.)
q For oil pan, be sure liquid gasket diameter is 3.5 to 4.5
mm (0.138 to 0.177 in).
q For areas except oil pan, be sure liquid gasket diameter
SEM164F
is 2.0 to 3.0 mm (0.079 to 0.118 in).
c. Apply liquid gasket around the inner side of bolt holes
(unless otherwise specified).
d. Assembly should be done within 5 minutes after coating.
e. Wait at least 30 minutes before refilling engine oil and
engine coolant.
AEM080
LC-2
PRECAUTIONS AND PREPARATION
Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
GI
Tool number
(Kent-Moore No.) Description
Tool name
MA
(J34301-C) Measuring oil pressure
Oil pressure gauge set
1 (J34301-1) EM
Oil pressure gauge
2 (J34301-2)
Hoses LC
3 (J34298)
Adapter
4 (J34282-1) EC
Adapter
5 (790-301-1230-A)
60
