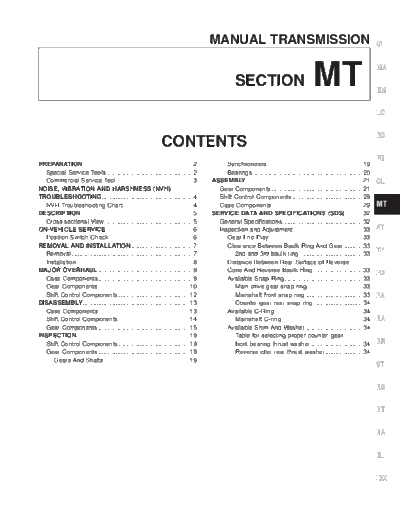

Image preview - the first page of the document
>> Download MT documenatation <<
Text preview - extract from the document
MANUAL TRANSMISSION GI
SECTION MT MA
EM
LC
EC
CONTENTS
FE
PREPARATION................................................................2 Synchronizers........................................................19
Special Service Tools ..................................................2 Bearings ................................................................20
Commercial Service Tool.............................................3 ASSEMBLY....................................................................21 CL
NOISE, VIBRATION AND HARSHNESS (NVH) Gear Components .....................................................21
TROUBLESHOOTING .....................................................4 Shift Control Components .........................................29
NVH Troubleshooting Chart.........................................4 Case Components .....................................................29 MT
DESCRIPTION .................................................................5 SERVICE DATA AND SPECIFICATIONS (SDS) ..........32
Cross-sectional View ...................................................5 General Specifications...............................................32
ON-VEHICLE SERVICE ..................................................6 Inspection and Adjustment ........................................33 AT
Position Switch Check .................................................6 Gear End Play.......................................................33
REMOVAL AND INSTALLATION ....................................7 Clearance Between Baulk Ring And Gear ...........33
Removal.......................................................................7 2nd and 3rd baulk ring .....................................33
TF
Installation....................................................................8 Distance Between Rear Surface of Reverse
MAJOR OVERHAUL .......................................................9 Cone And Reverse Baulk Ring .............................33 PD
Case Components .......................................................9 Available Snap Ring..............................................33
Gear Components .....................................................10 Main drive gear snap ring ................................33
Shift Control Components .........................................12 Mainshaft front snap ring..................................33 FA
DISASSEMBLY..............................................................13 Counter gear rear snap ring.............................34
Case Components .....................................................13 Available C-Ring ...................................................34
Shift Control Components .........................................14 Mainshaft C-ring ...............................................34 RA
Gear Components .....................................................15 Available Shim And Washer..................................34
INSPECTION..................................................................19 Table for selecting proper counter gear
Shift Control Components .........................................19 front bearing thrust washer ..............................34 BR
Gear Components .....................................................19 Reverse idler rear thrust washer ......................34
Gears And Shafts..................................................19
ST
RS
BT
HA
EL
IDX
PREPARATION
Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.) Description
Tool name
ST23540000 Removing and installing retaining pin
(J25689-A)
Pin punch
a: 2.3 mm (0.091 in) dia.
NT442 b: 4 mm (0.16 in) dia.
ST30031000 Removing 1st & 2nd synchronizer assembly
(J22912-01) Removing counter gear rear thrust bearing
Puller Removing main drive bearing
a: 90 mm (3.54 in) dia.
NT411 b: 50 mm (1.97 in) dia.
ST33230000 Removing mainshaft and counter gear
( -- )
Drift
a: 51 mm (2.01 in) dia.
NT084 b: 28.5 mm (1.122 in) dia.
ST22350000 Removing counter gear front bearing
(J25678-01) (Use with KV38100300)
Drift
a: 34 mm (1.34 in) dia.
NT065 b: 28 mm (1.10 in) dia.
KV38100300 Removing counter gear front bearing
(J25523) (Use with ST22350000)
Drift Installing counter gear rear bearing
a: 54 mm (2.13 in) dia.
NT065 b: 32 mm (1.26 in) dia.
ST30720000 1 Removing mainshaft front bearing
1 (J34286) 2 Installing mainshaft front bearing
2 (J34331)
Drift
a: 77 mm (3.03 in) dia.
NT115 b: 55.5 mm (2.185 in) dia.
ST33210000 1 Installing counter gear front bearing
1 (J25523) 2 Installing front cover oil seal
2 (J25803-01)
Drift
a: 44 mm (1.73 in) dia.
NT084 b: 24.5 mm (0.965 in) dia.
ST30613000 Installing main drive gear bearing
(J25742-3)
Drift
a: 72 mm (2.83 in) dia.
NT073 b: 48 mm (1.89 in) dia.
MT-2
PREPARATION
Special Service Tools (Cont'd)
GI
Tool number
(Kent-Moore No.) Description
Tool name
MA
ST37750000 1 Removing counter gear rear bearing
1 (J34286) 2 Installing OD gear bushing
2 (J34332) 2 Removing and installing mainshaft rear EM
3 (J34334) bearing
4 (J25679-01) 2 Installing reverse cone
Drift 3 Installing reverse counter gear LC
4 Installing counter gear rear end bearing
a: 40 mm (1.57 in) dia.
NT065 b: 31 mm (1.22 in) dia. EC
ST22452000 Installing reverse hub
(J34337) Installing mainshaft rear bearing
Drift (2WD model)
FE
a: 45 mm (1.77 in) dia.
NT065 b: 36 mm (1.42 in) dia. CL
(J26349-3) Installing mainshaft and counter gear
Puller leg (Use with J34328)
MT
NT078
AT
(J34328) Installing mainshaft and counter gear
Puller (Use with J26349-3)
TF
NT079 PD
(J26092) Installing sub-gear snap ring
Drift
FA
a: 44.5 mm (1.752 in) dia.
NT065 b: 38.5 mm (1.516 in) dia. RA
(J34342) Installing OD main gear
Drift Installing reverse gear bushing
BR
a: 44.5 mm (1.752 in) dia.
NT065 b: 40.5 mm (1.594 in) dia.
ST
ST33220000 Installing mainshaft rear bearing
(J25804-01)
Drift RS
a: 37 mm (1.46 in) dia.
NT084 b: 22 mm (0.87 in) dia. BT
Commercial Service Tool HA
Tool name Description
Puller Removing counter gear rear end bearing
Removing mainshaft rear bearing
EL
Removing reverse synchronizer hub
Removing reverse counter gear
IDX
NT077
MT-3
Symptom
Reference page
(Possible cause)
Noise
SUSPECTED PARTS
Oil leakage
Jumps out of gear
MANUAL TRANSMISSION
Hard to shift or will not shift
1
OIL (Level low)
tion. If necessary, repair or replace these parts.
Refer to MA secton (``Checking M/T Oil'',
1
3
2
OIL (Wrong)
CHASSIS AND BODY MAINTENANCE'').
MT-4
1
1
OIL (Level too high)
2
GASKET (Damaged) MT-9
2
OIL SEAL (Worn or damaged) MT-9
2
O-RING (Worn or Damaged) MT-12
CHECK PLUG RETURN SPRING AND
1
MT-12
NVH Troubleshooting Chart
CHECK BALL (Worn or damaged)
2
SHIFT FORK (Worn) MT-12
2
3
GEAR (Worn or damaged) MT-10
3
BEARING (Worn or damaged) MT-10
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
2
BAULK RING (Worn or damaged) MT-10
2
INSERT SPRING (Damaged) MT-10
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
DESCRIPTION
Cross-sectional View GI
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX
SMT869C
MT-5
ON-VEHICLE SERVICE
Position Switch Check
Switch Gear position Continuity
Reverse Yes
Back-up lamp switch
Except reverse No
Park/neutral position Neutral Yes
(PNP) switch Except neutral No
AMT165
MT-6
REMOVAL AND INSTALLATION
Removal GI
MA
EM
LC
EC
FE
CL
MT
AMT164
1. Remove battery negative terminal. AT
2. Remove control lever from transmission and transfer.
3. Remove clutch operating cylinder from transmission. Tighten
clutch operating cylinder to the specified torque. Refer to CL TF
section (``CLUTCH SYSTEM'').
4. Disconnect speed sensor, back-up lamp switch, rear heated
oxygen sensor and Park/neutral position (PNP) switch harness PD
connectors.
5. Remove starter motor from transmission.
: 41 - 52 N m (4.2 - 5.3 kg-m, 30 - 38 ft-lb) FA
6. Remove front and rear propeller shafts. Refer to PD section
(``Removal'', ``PROPELLER SHAFT'').
q Insert plug into rear oil seal after removing propeller shaft. RA
q Be careful not to damage spline, sleeve yoke and rear oil
seal when removing propeller shaft.
7. Remove exhaust tube mounting bracket from transmission. BR
Refer to FE section (``EXHAUST SYSTEM'').
8. Remove front exhaust tubes and center pipe.
9. Remove torsion bars and mounts. ST
10. Remove rear torsion bar cross mount.
11. Remove gussets from transmission or engine.
12. Support manual transmission with a jack. RS
13. Remove rear mounting member. Tighten rear mounting mem-
ber to the specified torque. Refer to EM section (``ENGINE
REMOVAL''). BT
14. Lower manual transmission as much as possible.
15. Remove crankshaft position sensor (OBD) from upper side of
transmission case. HA
16. Remove transmission bolts.
WARNING:
Support Manual Transmission together with transfer, while EL
removing it.
IDX
SMT558A
MT-7
REMOVAL AND INSTALLATION
Installation
q Apply sealant as below:
AMT163
q Tighten bolt securing transmission.
Bolt No. Tightening torque N m (kg-m, ft-lb) l mm (in)
1 39 - 49 (4.0 - 5.0, 29 - 36) 65 (2.56)
2 39 - 49 (4.0 - 5.0, 29 - 36) 58 (2.28)
3 29 - 39 (3.0 - 4.0, 22 - 29) 25 (0.98)
Gusset to engine 29 - 39 (3.0 - 4.0, 22 - 29) 20 (0.79)
SMT573AB
MT-8
MAJOR OVERHAUL
Case Components GI
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX
AMT162
MT-9
MAJOR OVERHAUL
Gear Components
AMT161
MT-10
MAJOR OVERHAUL
Gear Components (Cont'd)
GI
MA
EM
LC
EC
FE
CL
MT
AT
TF
PD
FA
RA
BR
ST
RS
BT
HA
EL
IDX
AMT160
MT-11
MAJOR OVERHAUL
Shift Control Components
AMT159
MT-12
DISASSEMBLY
Case Components GI
1. Remove check ball plug, check spring and check ball. Then
remove interlock stopper. MA
q If interlock assembly is removed as a unit, the check ball
can fall into transmission case.
q Be careful not to lose check ball. EM
LC
SMT366A
2. Remove control housing, return spring and check ball. EC
q Be careful not to lose check ball.
FE
CL
MT
SMT367A
3. Drive out retaining pin from striking arm. AT
TF
PD
FA
SMT368A
4. Remove OD gear case together with striking arm by tapping RA
lightly.
BR
ST
RS
SMT135C
5. Remove front cover and gasket.
BT
HA
EL
IDX
SMT370A
MT-13
DISASSEMBLY
Case Components (Cont'd)
6. Remove stopper ring and main drive bearing snap ring.
SMT371A
7. Remove transmission case by tapping lightly.
SMT372A
8. Remove front cover oil seal.
SMT392A
Shift Control Components
1. Mount adapter plate on vise.
2. Remove OD & reverse fork rod.
SMT373A
3. Drive out retaining pin from striking lever.
4. While pulling out striking rod, remove striking lever and strik-
ing interlock. Then remove 1st & 2nd, 3rd & 4th and reverse
shift fork.
SMT374A
MT-14
DISASSEMBLY
Shift Control Components (Cont'd)
5. Drive out retaining pin from OD shift fork. GI
6. Pull out OD fork rod and then remove OD shift fork.
MA
EM
LC
SMT375A
Gear Components EC
1. Before removing gears and shafts, measure each gear end
play. FE
Gear end play:
Refer to SDS, MT-33.
q If not within specification, disassemble and check contact sur- CL
face of gear to hub, washer, bushing, needle bearing and shaft.
MT
SMT376A
2. Remove rear side components on mainshaft and counter gear. AT
a. Remove reverse coupling sleeve.
TF
PD
FA
SMT463A
b. Remove mainshaft rear snap ring and counter gear rear snap RA
ring.
c. Remove C-ring holder and mainshaft C-rings from mainshaft.
Use punch and hammer to remove C-rings. BR
ST
RS
SMT377A
d. Pull out counter gear rear end bearing.
BT
e. Remove reverse idler gear and reverse idler thrust washers.
HA
EL
IDX
SMT378A
MT-15
DISASSEMBLY
Gear Components (Cont'd)
f. Pull out mainshaft rear bearing.
SMT379A
g. Pull out reverse main gear together with mainshaft spacer and
reverse synchronizer hub. Then remove reverse gear needle
bearings.
SMT380A
h. Pull out reverse counter gear.
i. Remove OD coupling sleeve together with OD baulk ring,
reverse baulk ring and spring inserts.
SMT773A
j. Pull out reverse gear bushing.
SMT770A
k. Pull out OD counter gear together with reverse cone.
SMT771A
MT-16
DISASSEMBLY
Gear Components (Cont'd)
3. Press out mainshaft and counter gear alternately. GI
MA
EM
LC
EC
FE
CL
MT
SMT772A
4. Remove front side components on mainshaft. AT
a. Remove 1st gear washer and steel ball.
b. Remove 1st main gear and 1st gear needle bearing.
q Be careful not to lose steel ball. TF
PD
FA
SMT383A
c. Press out 2nd main gear together with 1st gear bushing and RA
1st & 2nd synchronizer assembly.
d. Remove mainshaft front snap ring.
BR
ST
RS
SMT482C
e. Press out 3rd main gear together with 3rd & 4th synchronizer
BT
assembly and 3rd gear needle bearing.
HA
EL
IDX
SMT385A
MT-17
DISASSEMBLY
Gear Components (Cont'd)
5. Remove front side components on counter gear.
a. Remove counter gear rear thrust bearing.
SMT404A
b. Remove sub gear components.
SMT470A
6. Remove main drive gear bearing.
a. Remove main drive gear snap ring.
b. Press out main drive gear bearing.
SMT420A 7. Remove bearings from case components.
AMT166
MT-18
INSPECTION
Shift Control Components GI
q Check contact surface and sliding surface for wear, scratches,
projections or other damage. MA
EM
LC
SMT398A
Gear Components EC
GEARS AND SHAFTS
q Check shafts for cracks, wear or bending. FE
q Check gears for excessive wear, chips or cracks.
CL
MT
SMT386A
AT
TF
PD
FA
SMT423A
SYNCHRONIZERS RA
q Check spline portion of coupling sleeves, hubs, and gears for
wear or cracks. BR
q Check baulk rings for cracks or deformation.
q Check shifting inserts for wear or deformation.
q Check insert springs for deformation. ST
RS
SMT427C
q Measure wear of main drive, 1st and OD baulk rings.
BT
Clearance between baulk ring and gear:
Refer to SDS, MT-33.
q If the clearance is smaller than the wear limit, replace baulk HA
ring.
EL
IDX
SMT140
MT-19
INSPECTION
Gear Components (Cont'd)
q Measure wear of 2nd and 3rd baulk rings.
a. Place baulk rings in position on synchronizer cone.
b. While holding baulk rings against synchronizer cone as far as
it will go, measure dimensions ``A'' and ``B''.
Standard:
A 0.7 - 0.9 mm (0.028 - 0.035 in)
B 0.6 - 1.1 mm (0.024 - 0.043 in)
Wear limit:
0.2 mm (0.008 in)
q If dimension ``A'' or ``B'' is smaller than the wear limit,
replace outer baulk ring, inner baulk ring and synchro-
SMT041B
nizer cone as a set.
SMT042B
q Measure wear of reverse baulk ring.
a. Place baulk ring in position on reverse cone.
b. While holding baulk ring against reverse cone as far as it will
go, measure dimension ``A'' with dial indicator.
Dimension ``A'':
Standard -0.1 to 0.35 mm (-0.0039 to 0.0138 in)
Wear limit 0.7 mm (0.028 in)
c. If dimension ``A'' is larger than the wear limit, replace baulk
ring.
SMT424A
BEARINGS
q Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
SMT418A
MT-20
ASSEMBLY
Gear Components GI
MA
EM
LC
EC
FE
CL
MT
AMT167
1. Install bearings into case components. AT
2. Install main drive gear bearing. TF
a. Press main drive gear bearing.
PD
FA
SMT425A
b. Select proper main drive gear snap ring to minimize clearance RA
of groove.
Allowable clearance of groove:
0 - 0.1 mm (0 - 0.004 in) BR
Main drive gear snap ring:
Refer to SDS, MT-33.
c. Install selected snap ring on main drive gear. ST
RS
SMT426A
3. Install components on counter gear.
BT
a. Install sub-gear components.
q When installing sub-gear snap ring, tap sub-gear snap HA
ring into position on counter gear.
EL
IDX
SMT577A
MT-21
ASSEMBLY
Gear Components (Cont'd)
b. Install counter gear rear thrust bearing.
SMT405A
4. Install front side components on mainshaft.
a. Assemble 1st & 2nd synchronizer.
SMT614B
b. Assemble 3rd & 4th synchronizer.
SMT615B
c. Press on 3rd & 4th synchronizer assembly together with 3rd
main gear and 3rd gear needle bearing.
q Pay attention to direction of synchronizer assembly.
SMT399A
d. Select proper snap ring to minimize clearance of groove.
Allowable clearance of groove:
0 - 0.1 mm (0 - 0.004 in)
Mainshaft front snap ring:
Refer to SDS, MT-33.
e. Install selected snap ring on mainshaft.
SMT400A
MT-22
ASSEMBLY
Gear Components (Cont'd)
f. Press on 1st & 2nd synchronizer assembly together with 2nd GI
main gear and 2nd gear needle bearing.
MA
EM
LC
SMT401A
g. Press on 1st gear bushing using 1st gear washer. EC
h. Install 1st main gear and needle bearing.
FE
CL
MT
SMT402A
i. Install steel ball and 1st gear washer. AT
q Apply multi-purpose grease to steel ball and 1st gear
washer before installing.
TF
PD
FA
SMT403A
5. Select proper counter gear front bearing thrust washer when RA
replacing transmission case, counter gear, counter gear rear
thrust bearing or sub-gear components.
a. Install counter gear with sub-gear components, counter gear BR
front and rear bearing thrust washer on adapter plate.
b. Remove counter gear front bearing thrust washer from trans-
mission case. ST
c. Place adapter plate and counter gear assembly in transmis-
sion case (case inverted).
RS
BT
HA
EL
IDX
SMT427AA
MT-23
ASSEMBLY
Gear Components (Cont'd)
d. Tighten adapter plate to transmission case using 2 bolts.
e. Place dial indicator on rear end of counter gear.
f. Move counter gear up and down and measure dial indicator
deflection.
g. Select proper thrust washer using table below as a guide.
Counter gear end play:
0.10 - 0.26 mm (0.0039 - 0.0098 in)
Table for selecting proper counter gear front bearing
thrust washer:
Refer to SDS, MT-34.
SMT578A
6. Select proper reverse idler rear thrust washer when replacing
OD gear case, reverse idler gear, reverse idler shaft.
a. Install reverse idler gear, reverse idler needle bearings,
reverse idler front thrust washers and reverse idler shaft into
OD gear case.
q When replacing reverse idler rear thrust washer, install
either A or B.
Reverse idler rear thrust washer:
Refer to SDS, MT-34.
AMT170
MT-24
ASSEMBLY
Gear Components (Cont'd)
b. Place dial indicator on front end of reverse idler shaft. GI
c. Put straightedge on front surface of rear extension (or OD gear
case) as a stopper of reverse idler shaft.
d. Move reverse idler shaft up and down and measure reverse MA
idler gear end play.
Reverse idler gear end play:
0.30 - 0.53 mm (0.0118 - 0.0209 in) EM
e. If not within specification, replace reverse idler rear thrust
washer with the other (A or B) and check again.
LC
EC
FE
CL
MT
SMT433A
7. Install mainshaft and counter gear on adapter plate and main AT
drive gear on mainshaft.
a. Mount adapter plate on vise and apply multi-purpose grease to
counter gear rear bearing. TF
PD
FA
SMT438A
b. Install mainshaft a little on mainshaft front bearing. RA
q To allow for installation of counter gear, do not install
mainshaft completely.
BR
ST
RS
SMT440A
c. Install counter gear on counter gear rear bearing and install
BT
main drive gear, pilot bearing and spacer on mainshaft.
HA
EL
IDX
SMT441A
MT-25
ASSEMBLY
Gear Components (Cont'd)
q When installing counter gear into counter gear rear
bearing, push up on upper roller of counter gear rear bear-
ing with screwdriver.
SMT442A
d. Install Tools (J26349-3) onto adapter plate and C-ring and
C-ring holder on mainshaft.
e. Install Tool (J34328) on mainshaft.
SMT064C
f. Install mainshaft and counter gear completely by extending
length of (J26349-3).
SMT579A
8. Install rear side components on mainshaft and counter gear.
a. Install OD gear bushing while pushing on the front of counter
gear.
SMT444A
b. Install OD main gear.
q Pay attention to direction of OD main gear. (B is wider than
A as shown at left.)
c. Install adapter plate with gear assembly onto transmission
case.
d. Install OD gear needle bearing and then install OD counter
gear and reverse idler shaft.
SMT580AA
MT-26
ASSEMBLY
Gear Components (Cont'd)
e. Install reverse cone. GI
MA
EM
LC
SMT582A
f. Install insert springs and reverse baulk ring on OD coupling EC
sleeve. Then install them and OD baulk ring on OD counter
gear.
q Pay attention to direction of OD coupling sleeve. FE
CL
MT
SMT571AA
AT
TF
PD
FA
SMT583A
g. Install reverse counter gear. RA
h. Install reverse gear needle bearing and then install reverse
main gear, reverse idler gear and reverse idler thrust washers.
BR
ST
RS
SMT584A
i. Install reverse hub.
BT
q Pay attention to its direction.
HA
EL
IDX
SMT585A
MT-27
ASSEMBLY
Gear Components (Cont'd)
j. Install mainshaft spacer and mainshaft rear bearing.
SMT586A
k. Install counter gear rear end bearing.
l. Separate adapter plate from transmission case and mount
adapter plate on vice again.
SMT485C
m. Select proper mainshaft C-ring to minimize clearance of
groove.
Allowable clearance of groove:
0 - 0.1 mm (0 - 0.004 in)
Mainshaft C-ring:
Refer to SDS, MT-34.
SMT452A
n. Install selected C-ring, C-ring holder and mainshaft rear snap
ring.
SMT454A
o. Select proper counter gear rear snap ring to minimize clear-
ance of groove.
Allowable clearance of groove:
0 - 0.1 mm (0 - 0.004 in)
Counter gear rear snap ring:
Refer to SDS, MT-34.
p. Install selected counter gear rear snap ring.
SMT453A
MT-28
ASSEMBLY
Gear Components (Cont'd)
GI
MA
EM
LC
SMT455A
q. Install reverse coupling sleeve. EC
q Pay attention to its direction.
r. Measure each gear end play as a final check. Refer to
FE
``DISASSEMBLY'', MT-15.
CL
MT
SMT456A
Shift Control Components AT
1. Install OD fork rod and OD shift fork. Then install retaining pin
into OD shift fork. TF
2. Install 1st & 2nd, 3rd & 4th and reverse shift fork onto coupling
sleeve.
PD
FA
SMT457A
3. Install striking rod into hole of shift forks, striking lever and RA
interlock and then install retaining pin into striking lever.
q Make sure that striking rod moves smoothly.
BR
ST
RS
SMT374A
BT
Case Components
1. Install front cover oil seal.
q Apply multi-purpose grease to seal lip. HA
2. Install selected counter gear front bearing shim onto transmis-
sion case.
q Apply multi-purpose grease. EL
3. Apply sealant to mating surface of transmission case.
IDX
SMT393A
MT-29
ASSEMBLY
Case Components (Cont'd)
4. Install gear assembly onto transmission case.
5. Install check spring and check ball into interlock stopper.
q Apply multi-purpose grease to check ball.
SMT588A
6. Install interlock stopper assembly and then tighten check ball
plug.
q Apply sealant to thread of check ball plug.
SMT460A
7. Install stopper ring and main drive bearing snap ring.
SMT371A
8. Install front cover and gasket.
q Apply sealant to thread of 3 bolts shown left.
9. Apply sealant to mating surface of adapter plate.
SMT459A
10. Install OD gear case together with striking arm.
SMT461A
MT-30
ASSEMBLY
Case Components (Cont'd)
11. Install retaining pin into striking arm. GI
MA
EM
LC
SMT368A
12. Install return spring and check ball and then install control EC
housing.
q Apply sealant to mating surface of OD gear case.
FE
CL
MT
SMT462A
13. Tighten control housing bolts. AT
Bolt head size:
A bolts 12 mm (0.47 in)
B bolts 13 mm (0.51 in) TF
PD
FA
AMT168
RA
BR
ST
RS
BT
HA
EL
IDX
MT-31
SERVICE DATA AND SPECIFICATIONS (SDS)
General Specifications
VG33E
Applied model
4WD
Transmission FS5R30A
Number of speed 5
Shift pattern
Synchromesh type Warner
Gear ratio
1st 3.580
2nd 2.077
3rd 1.360
4th 1.000
OD 0.811
Reverse 3.636
Number of teeth
Mainshaft
Drive 22
1st 32
2nd 30
3rd 29
OD 24
Reverse 30
Countershaft
Drive 32
1st 13
2nd 21
3rd 31
OD 43
Reverse 12
Reverse idler
22
gear
Oil capacity
5.1 (10-3/4, 9)
l (US pt, Imp pt)
Remarks 2nd & 3rd double baulk ring type synchronizer
MT-32
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment GI
GEAR END PLAY DISTANCE BETWEEN REAR SURFACE OF
REVERSE CONE AND REVERSE BAULK MA
Gear End play mm (in) RING
1st main gear 0.23 - 0.33 (0.0091 - 0.0130)
2nd main gear 0.23 - 0.33 (0.0091 - 0.0130) EM
3rd main gear 0.06 - 0.16 (0.0024 - 0.0063)
OD counter gear 0.23 - 0.33 (0.0091 - 0.0130)
LC
Reverse main gear 0.33 - 0.43 (0.0130 - 0.0169)
Counter gear 0.10 - 0.25 (0.0039 - 0.0098) Unit: mm (in)
Reverse idler gear 0.30 - 0.53 (0.0118 - 0.0209)
EC
Standard Wear limit
-0.1 to 0.35
Dimension ``A'' 0.7 (0.028)
CLEARANCE BETWEEN BAULK RING AND (-0.0039 to 0.0138) FE
GEAR
Unit: mm (in) AVAILABLE SNAP RING
Standard Wear limit CL
Main drive gear snap ring
1st 1.05 - 1.3 (0.0413 - 0.0512)
Allowable clearance 0 - 0.1 mm (0 - 0.004 in)
Main drive 1.05 - 1.3 (0.0413 - 0.0512) 0.7 (0.028) MT
OD 1.05 - 1.3 (0.0413 - 0.0512) Thickness mm (in) Part number
1.89 (0.0744) 32204-01G60
2nd and 3rd baulk ring 1.95 (0.0768) 32204-01G61 AT
1.99 (0.0783) 32204-01G62
2.03 (0.0799) 32204-01G63 TF
2.07 (0.0815) 32204-01G64
2.11 (0.0831) 32204-01G65
PD
Mainshaft front snap ring
FA
Allowable clearance 0 - 0.1 mm (0 - 0.004 in)
Thickness mm (in) Part number
1.99 (0.0783) 32204-01G62 RA
SMT742C 2.03 (0.0799) 32204-01G63
Unit: mm (in) 2.07 (0.0815) 32204-01G64 BR
Dimension Standard Wear limit 2.11 (0.0831) 32204-01G65
0.7 - 0.9 2.15 (0.0846) 32204-01G66
A
(0.028 - 0.035) ST
0.2 (0.008) 2.19 (0.0862) 32204-01G67
0.6 - 1.1
B
(0.024 - 0.043)
RS
BT
HA
EL
IDX
MT-◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
