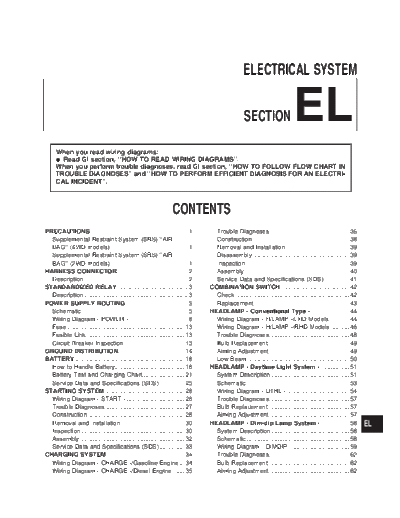

Image preview - the first page of the document
>> Download el documenatation <<Text preview - extract from the document ELECTRICAL SYSTEM
SECTION EL
When you read wiring diagrams:
q Read GI section, ``HOW TO READ WIRING DIAGRAMS''.
When you perform trouble diagnoses, read GI section, ``HOW TO FOLLOW FLOW CHART IN
TROUBLE DIAGNOSES'' and ``HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRI-
CAL INCIDENT''.
CONTENTS
PRECAUTIONS ......................................................... 1 Trouble Diagnoses............................................... 36
Supplemental Restraint System (SRS) ``AIR Construction ......................................................... 38
BAG'' (4WD models).............................................. 1 Removal and Installation ..................................... 39
Supplemental Restraint System (SRS) ``AIR Disassembly......................................................... 39
BAG'' (2WD models).............................................. 1 Inspection............................................................. 39
HARNESS CONNECTOR.......................................... 2 Assembly.............................................................. 40
Description ............................................................. 2 Service Data and Specifications (SDS)............... 41
STANDARDIZED RELAY.......................................... 3 COMBINATION SWITCH ........................................ 42
Description ............................................................. 3 Check ................................................................... 42
POWER SUPPLY ROUTING..................................... 5 Replacement ........................................................ 43
Schematic .............................................................. 5 HEADLAMP - Conventional Type -....................... 44
Wiring Diagram - POWER -................................... 6 Wiring Diagram - H/LAMP -/LHD Models............ 44
Fuse ..................................................................... 13 Wiring Diagram - H/LAMP -/RHD Models ........... 46
Fusible Link.......................................................... 13 Trouble Diagnoses............................................... 48
Circuit Breaker Inspection.................................... 13 Bulb Replacement................................................ 49
GROUND DISTRIBUTION....................................... 14 Aiming Adjustment ............................................... 49
BATTERY................................................................. 18 Low Beam ............................................................ 50
How to Handle Battery......................................... 18 HEADLAMP - Daytime Light System - ................. 51
Battery Test and Charging Chart......................... 21 System Description .............................................. 51
Service Data and Specifications (SDS)............... 25 Schematic ............................................................ 53
STARTING SYSTEM ............................................... 26 Wiring Diagram - DTRL -..................................... 54
Wiring Diagram - START - .................................. 26 Trouble Diagnoses............................................... 57
Trouble Diagnoses............................................... 27 Bulb Replacement................................................ 57
Construction ......................................................... 28 Aiming Adjustment ............................................... 57
Removal and Installation ..................................... 30 HEADLAMP - Dim-dip Lamp System - ................. 58 EL
Inspection............................................................. 30 System Description .............................................. 58
Assembly.............................................................. 32 Schematic ............................................................ 58
Service Data and Specifications (SDS)............... 33 Wiring Diagram - DIMDIP -.................................. 59
CHARGING SYSTEM .............................................. 34 Trouble Diagnoses............................................... 62
Wiring Diagram - CHARGE -/Gasoline Engine ... 34 Bulb Replacement................................................ 62
Wiring Diagram - CHARGE -/Diesel Engine ....... 35 Aiming Adjustment ............................................... 62
HEADLAMP - Headlamp Aiming Control -........... 63 Wiring Diagram - WIPER -/RHD Models with
System Description .............................................. 63 Intermittent ......................................................... 124
Wiring Diagram - H/AIM - .................................... 64 Trouble Diagnoses............................................. 126
PARKING, LICENSE AND TAIL LAMPS ............... 66 Wiper Installation and Adjustment ..................... 127
Wiring Diagram - TAIL/L -/Except for LHD Washer Nozzle Adjustment ............................... 128
Models for Europe ............................................... 66 Washer Tube Layout ......................................... 128
Wiring Diagram - TAIL/L -/LHD Models for Wiper Linkage .................................................... 129
Europe.................................................................. 68 HEADLAMP WASHER .......................................... 130
STOP LAMP ............................................................ 70 Wiring Diagram - HLC - ..................................... 130
Wiring Diagram - STOP/L - ................................. 70 Trouble Diagnoses............................................. 131
BACK-UP LAMP...................................................... 71 Washer Tube Layout ......................................... 131
Wiring Diagram - BACK/L - ................................. 71 Check Valve....................................................... 131
REAR FOG LAMP ................................................... 72 HORN ..................................................................... 132
Wiring Diagram - R/FOG -/LHD Models.............. 72 Wiring Diagram - HORN -.................................. 132
Wiring Diagram - R/FOG -/RHD Models ............. 73 CIGARETTE LIGHTER.......................................... 133
TURN SIGNAL AND HAZARD WARNING Wiring Diagram - CIGAR -................................. 133
LAMPS ..................................................................... 74 CLOCK................................................................... 134
Schematic ............................................................ 74 Wiring Diagram - CLOCK -................................ 134
Wiring Diagram - TURN -/Except 4WD Models REAR WINDOW DEFOGGER............................... 135
for Europe ............................................................ 75 Wiring Diagram - DEF - ..................................... 135
Wiring Diagram - TURN -/4WD Models for Electrical Components Inspection ..................... 136
Europe.................................................................. 77 Filament Check .................................................. 136
Trouble Diagnoses............................................... 80 Filament Repair.................................................. 137
Combination Flasher Unit Check......................... 80 AUDIO .................................................................... 138
ILLUMINATION........................................................ 81 Wiring Diagram - AUDIO -/LHD Models Type-
Wiring Diagram - ILL -/LHD Models .................... 81 2 ......................................................................... 138
Wiring Diagram - ILL -/RHD Models.................... 83 Wiring Diagram - AUDIO -/LHD Models Type-
INTERIOR AND SPOT LAMPS............................... 85 3 ......................................................................... 139
Wiring Diagram - INT/L - ..................................... 85 Wiring Diagram - AUDIO -/RHD Models ........... 141
Combination Meter............................................... 87 Trouble Diagnoses............................................. 142
Schematic ............................................................ 89 CATS (Code) System/For Europe RHD ............ 143
Wiring Diagram - METER -/LHD Models............. 90 NATS Audio Link/For Europe LHD (KA24E) ..... 144
Wiring Diagram - METER -/RHD Models ............ 93 AUDIO ANTENNA ................................................. 146
Unified Control Meter System Description .......... 96 Manual Antenna................................................. 146
Meter/gauge Operation and Odo/Trip Meter Power Antenna/Wiring Diagram - P/ANT -........ 147
Segment Check in Diagnosis Mode .................... 96 Power Antenna .................................................. 148
Flexible Print Circuit (FPC) .................................. 97 POWER DOOR MIRROR ...................................... 150
Trouble Diagnoses............................................... 98 Wiring Diagram - MIRROR -.............................. 150
Electrical Components Inspection ..................... 103 HEATED SEAT ...................................................... 152
WARNING LAMPS ................................................ 105 Wiring Diagram - H/SEAT - ............................... 152
Schematic .......................................................... 105 POWER WINDOW ................................................. 154
Wiring Diagram - WARN -/LHD Models ............ 106 System Description ............................................ 154
Wiring Diagram - WARN -/RHD Models............ 111 Schematic .......................................................... 156
Electrical Components Inspection ..................... 116 Wiring Diagram - WINDOW -/LHD Models ....... 157
WARNING BUZZER .............................................. 117 Wiring Diagram - WINDOW -/RHD Models....... 161
Wiring diagram - BUZZER -/LHD Models for Trouble Diagnoses............................................. 165
Europe................................................................ 117 POWER DOOR LOCK........................................... 166
Wiring diagram - BUZZER -/RHD Models for System Description ............................................ 166
Europe................................................................ 118 Wiring Diagram - D/LOCK -............................... 167
Electrical Components Inspection ..................... 119 Trouble Diagnosis .............................................. 169
FRONT WIPER AND WASHER ............................ 120 MULTI-REMOTE CONTROL SYSTEM/FOR
System Description ............................................ 120 EUROPE ................................................................ 173
Wiring Diagram - WIPER -/LHD Models with System Description ............................................ 173
Intermittent ......................................................... 122 Schematic .......................................................... 174
Wiring Diagram - MULTI -/LHD Models ............ 175 LOCATION OF ELECTRICAL UNITS................... 217
Trouble Diagnoses............................................. 179 Engine Compartment ......................................... 217
ID Code Entry Procedure .................................. 182 Passenger Compartment ................................... 218
NATS (Nissan Anti-Theft System)/Gasoline HARNESS LAYOUT .............................................. 220
engine for LHD models........................................ 183 Outline................................................................ 220
Component Parts and Harness Connector How to Read Harness Layout ........................... 221
Location.............................................................. 183 Main Harness..................................................... 222
System Description ............................................ 183 Engine Room Harness....................................... 232
System Composition .......................................... 184 Engine Control Harness..................................... 240
Wiring Diagram - NATS -................................... 185 Engine Harness ................................................. 242
CONSULT .......................................................... 186 Alternator Harness ............................................. 244
Trouble Diagnoses............................................. 188 Instrument Harness............................................ 245
How to Replace NATS IMMU............................ 197 Room Lamp Harness/LHD Models.................... 246
NATS (Nissan Anti-Theft System)/Diesel Room Lamp Harness/RHD Models ................... 247
engine .................................................................... 198 Chassis Harness and Tail Harness ................... 248
Component Parts and Harness Connector Front Door Harness (LH side) ........................... 249
Location.............................................................. 198 Front Door Harness (RH side)........................... 250
System Description ............................................ 199 Rear Door Harness............................................ 251
System Composition .......................................... 199 BULB SPECIFICATIONS ...................................... 252
Wiring Diagram - NATS -/LHD Models.............. 200 Headlamp........................................................... 252
Wiring Diagram - NATS -/RHD Models ............. 201 Exterior Lamp..................................................... 252
CONSULT .......................................................... 202 Interior Lamp...................................................... 252
Trouble Diagnoses............................................. 205 WIRING DIAGRAM CODES (CELL CODES)....... 253
WIRING DIAGRAM REFERENCE CHART
COOLING FAN .......................................................................................................... LC SECTION
ECCS, IGNITION SYSTEM, QUICK-GLOW SYSTEM, FUEL HEATER SYSTEM .. EC SECTION
ANTI-LOCK BRAKE SYSTEM .................................................................................. BR SECTION
SRS ``AIR BAG'' ........................................................................................................ RS SECTION
HEATER AND AIR CONDITIONER .......................................................................... HA SECTION
PRECAUTIONS
Supplemental Restraint System (SRS) ``AIR
BAG'' (4WD models)
The Supplemental Restraint System ``AIR BAG'', used along with a seat belt, helps to reduce the risk or
severity of injury to the driver in a frontal collision. The Supplemental Restraint System consists of an air
bag module (located in the center of the steering wheel), a diagnosis sensor unit, warning lamp, wiring har-
ness and spiral cable. Information necessary to service the system safely is included in the RS section of
this Service Manual.
WARNING:
q To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
q Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
q Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses are covered with yellow insulation either just before the
harness connectors or for the complete harness, for easy identification.
Supplemental Restraint System (SRS) ``AIR
BAG'' (2WD models)
The Supplemental Restraint System ``AIR BAG'', used along with a seat belt, helps to reduce the risk or
severity of injury to the driver in a frontal collision. The Supplemental Restraint System consists of an air
bag module (located in the center of the steering wheel), a diagnosis sensor unit, warning lamp and spiral
cable. Information necessary to service the system safely is included in the RS section of this Service
Manual.
WARNING:
q To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
q Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
q Do not use electrical test equipment on any circuit related to the SRS.
EL-1
HARNESS CONNECTOR
Description
HARNESS CONNECTOR
q All harness connectors have been modified to prevent accidental looseness or disconnection.
q The connector can be disconnected by pushing or lifting the locking section.
CAUTION:
Do not pull the harness when disconnecting the connector.
[Example]
SEL769D
EL-2
STANDARDIZED RELAY
Description
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
SEL881H
TYPE OF STANDARDIZED RELAYS
1M ................ 1 Make 2M ................ 2 Make
1T ................ 1 Transfer 1Mz1B ................ 1 Make 1 Break
SEL882H
EL-3
STANDARDIZED RELAY
Description (Cont'd)
SEL661TA
EL-4
POWER SUPPLY ROUTING
Schematic
HEL309A
EL-5
POWER SUPPLY ROUTING
Wiring Diagram -- POWER --
BATTERY POWER SUPPLY -- IGNITION SWITCH IN ANY POSITION
HEL310A
EL-6
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
HEL311A
EL-7
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
BATTERY POWER SUPPLY -- IGNITION SW. IN ANY POSITION
HEL312A
EL-8
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
HEL313A
EL-9
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
ACCESSORY POWER SUPPLY -- IGNITION SW. IN ``ACC'' OR ``ON''
HEL314A
EL-10
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
IGNITION POWER SUPPLY -- IGNITION SW. IN ``ON'' AND/OR ``START''
HEL315A
EL-11
POWER SUPPLY ROUTING
Wiring Diagram -- POWER -- (Cont'd)
HEL316A
EL-12
POWER SUPPLY ROUTING
Fuse
a. If fuse is blown, be sure to eliminate cause of problem
before installing new fuse.
b. Use fuse of specified rating. Never use fuse of more than
specified rating.
c. Do not partially install fuse; always insert it into fuse
holder properly.
d. Remove fuse for ``ELEC B'' if vehicle is not used for a
long period of time.
SEL954JA
Fusible Link
A melted fusible link can be detected either by visual inspection
or by feeling with finger tip. If its condition is questionable, use
circuit tester or test lamp.
CAUTION:
q If fusible link should melt, it is possible that critical cir-
cuit (power supply or large current carrying circuit) is
shorted. In such a case, carefully check and eliminate
cause of problem.
q Never wrap outside of fusible link with vinyl tape. Impor-
GEL186
tant: Never let fusible link touch any other wiring
harness, vinyl or rubber parts.
Circuit Breaker Inspection
For example, when current is 30A, the circuit is broken within 8
to 20 seconds.
Circuit breakers are used in the following systems.
q Power window
q Power door lock
q Multi-remote control system
SBF284E
EL-13
GROUND DISTRIBUTION
EARTH CONNECT TO CONN. NO. CELL CODE
M1/M54 ACCESSORY RELAY (In fuse block) M14 EL-POWER
AIR BAG DIAGNOSIS SENSOR UNIT (4WD M110 RS-SRS
models)
ASHTRAY ILLUMINATION M34 EL-ILL
BLOWER RELAY (In fuse block) M14 EL-POWER
CHECK CONNECTOR (NA engine) M12 EC-CHOKE
CHECK CONNECTOR (Z engine) M13 EC-CHOKE
CIGARETTE LIGHTER SOCKET M37 EL-CIGAR
COMBINATION FLASHER UNIT M15 EL-TURN
DOOR LOCK TIMER M51 EL-D/LOCK
DOOR SWITCH DRIVER SIDE (For Europe) M118 EL-BUZZER EL-MULTI
ECM (ENGINE CONTROL MODULE) M66 EC-GLOW EC-PLA EC-EGRC/V
FAN SWITCH ILLUMINATION (Except for M403 HA-HEATER HA-A/C,M EL-ILL
Europe and Australia)
FAN SWITCH ILLUMINATION (For Europe and M40 HA-HEATER HA-A/C,M EL-ILL
Australia)
FAN SWITCH (Except for Europe and Australia) M404 EC-FIPOT HA-HEATER HA-A/C,M
FAN SWITCH (For Europe and Australia) M39 HA-HEATER HA-A/C,M
FRONT SEAT LH M119 EL-H/SEAT
FRONT SEAT RH M122 EL-H/SEAT
FRONT WIPER AMPLIFIER
(RHD models without KA engine and LHD mod- M220 EL-WIPER
els)
FRONT WIPER AND WASHER SWITCH M28 EL-WIPER
FRONT WIPER MOTOR
(RHD models without KA engine and LHD mod- M221 EL-WIPER
els)
FUEL FILTER SWITCH (LHD models with die- M259 EL-WARN EL-BUZZER
sel engine)
FUEL PUMP CONTROL MODULE M22 EC-FPCM
FUEL RETURN CONTROL SOLENOID VALVE M257 EC-F/RTN
(LHD models with NA engine)
GLOW CONTROL UNIT
(TD27 engine except for cold areas and QD M29 EC-GLOW EC-PLA
engine)
GLOW CONTROL UNIT (TD27 engine for cold M30 EC-GLOW EC-PLA
areas)
GLOW RELAY-1 (LHD models with diesel
engine except for Europe) M253 EC-GLOW
GLOW RELAY-2 (TD27 engine for cold areas) M256 EC-GLOW
HAZARD SWITCH M41 EL-TURN EL-ILL
HEADLAMP WASHER SWITCH M70 EL-ILL EL-HLC
HEATED SEAT SWITCH LH M602 EL-H/SEAT
HEATED SEAT SWITCH RH M603 EL-H/SEAT
IACV-FICD SOLENOID VALVE (KA engine) M203 EC-FICD HA-A/C,M
IGNITION RELAY (In fuse block) M14 EL-POWER
MULTI-REMOTE CONTROL RELAY-3 M706 EL-MULTI
MULTI-REMOTE CONTROL RELAY-4 M707 EL-MULTI
MULTI-REMOTE CONTROL UNIT M703 EL-MULTI
POWER WINDOW RELAY M9 EL-WINDOW
REAR WINDOW DEFOGGER SWITCH M42 EL-DEF
SEAT BELT SWITCH M109 EL-WARN
SPIRAL CABLE (2WD models with air bag) M26 RS-SRS
COMBINATION METER (4WD WARNING
LAMP) N6 EL-WARN
COMBINATION METER (ABS WARNING N6 BR-ABS EL-WARN
LAMP)
EL-14
GROUND DISTRIBUTION
EARTH CONNECT TO CONN. NO. CELL CODE
M1/M54 COMBINATION METER (AIR BAG WARNING N5 RS-SRS EL-WARN
LAMP)
COMBINATION METER (CLOCK ILLUMINA- N6 EL-ILL EL-CLOCK
TION)
COMBINATION METER (DIGITAL CLOCK) N6 EL-CLOCK
COMBINATION METER (FUEL GAUGE) N5 EL-METER
COMBINATION METER (HIGH BEAM INDICA- N5 EL-H/LAMP EL-DTRL EL-DIMDIP
TOR)
COMBINATION METER (METER ILLUMINA- N6 EL-ILL
TION)
COMBINATION METER (ODO/TRIP METER N6 EL-ILL
ILLUMINATION)
COMBINATION METER (REAR FOG LAMP
INDICATOR) N6 EL-R/FOG
COMBINATION METER (TURN LH INDICA- N6 EL-TURN
TOR)
COMBINATION METER (TURN RH INDICA- N6 EL-TURN
TOR)
COMBINATION METER (UNIFIED METER N5 EC-VSS EC-GLOW EL-METER
CONTROL UNIT)
COMBINATION METER (WATER TEMP. N5 EL-METER
GAUGE)
DOOR MIRROR REMOTE CONTROL SWITCH N3 EL-MIRROR
FRONT WIPER AMPLIFIER (RHD models with
KA engine) F20 EL-WIPER
FRONT WIPER MOTOR (RHD models with KA F21 EL-WIPER
engine)
HEADLAMP AIMING SWITCH N7 EL-H/AIM
INTERIOR LAMP (Single cab and King cab) R4 EL-INT/L
SPOT LAMP R3 EL-INT/L
FUEL TANK GAUGE UNIT (With electric fuel C3 EC-FPCM EC-F/PUMP EL-METER
pump) EL-WARN
FUEL TANK GAUGE UNIT (With mechanical C4 EL-METER EL-WARN
fuel pump)
LICENSE PLATE LAMP LH (With step bumper) T7 EL-TAIL/L
LICENSE PLATE LAMP LH (Without step T6 EL-TAIL/L
bumper)
LICENSE PLATE LAMP RH (With step bumper) T3 EL-TAIL/L
LICENSE PLATE LAMP RH (Without step T5 EL-TAIL/L
bumper)
REAR COMBINATION LAMP LH (BACK-UP)
(A-chassis models, and except for Europe, T8 EL-BACK/L
Australia and China)
REAR COMBINATION LAMP LH (BACK-UP)
(For Europe, Australia and China except T9 EL-BACK/L
A-chassis models)
REAR COMBINATION LAMP LH (REAR FOG) T9 EL-R/FOG
(LHD models except A-chassis)
REAR COMBINATION LAMP LH (TAIL AND
STOP) (A-chassis models, and except for T8 EL-TAIL/L EL-STOP/L
Europe, Australia and China)
REAR COMBINATION LAMP LH (TAIL AND
STOP) (For Europe, Australia and China except T9 EL-TAIL/L EL-STOP/L
A-chassis models)
REAR COMBINATION LAMP LH (TURN SIG-
NAL) (A-chassis models, and except for T8 EL-TURN
Europe, Australia and China)
REAR COMBINATION LAMP LH (TURN SIG-
NAL) (For Europe, Australia and China except T9 EL-TURN
A-chassis models)
REAR COMBINATION LAMP RH (BACK-UP)
(A-chassis models, and except for Europe, Aus- T1 EL-BACK/L
tralia and China)
REAR COMBINATION LAMP RH (BACK-UP)
(For Europe, Australia and China except T2 EL-BACK/L
A-chassis models)
EL-15
GROUND DISTRIBUTION
EARTH CONNECT TO CONN. NO. CELL CODE
M1/M54 REAR COMBINATION LAMP RH (REAR FOG) T2 EL-R/FOG
(RHD models except A-chassis)
REAR COMBINATION LAMP RH (TAIL AND
STOP) (A-chassis models, and except for T1 EL-TAIL/L EL-STOP/L
Europe, Australia and China)
REAR COMBINATION LAMP RH (TAIL AND
STOP) (For Europe, Australia and China except T2 EL-TAIL/L EL-STOP/L
A-chassis models)
REAR COMBINATION LAMP RH (TURN SIG-
NAL) (A-chassis models, and except for T1 EL-TURN
Europe, Australia and China)
REAR COMBINATION LAMP RH (TURN SIG-
NAL) (For Europe, Australia and China except T2 EL-TURN
A-chassis models)
REAR FOG LAMP LH (LHD A-chassis models) T12 EL-R/FOG
REAR FOG LAMP RH (RHD A-chassis models) T10 EL-R/FOG
DOOR LOCK ACTUATOR DRIVER SIDE
(Unlock sensor) D10 EL-MULTI
LOCK KNOB SWITCH D8 EL-D/LOCK
POWER WINDOW MAIN SWITCH (Double cab) D5 EL-WINDOW EL-D/LOCK
POWER WINDOW MAIN SWITCH (Single cab D6 EL-WINDOW EL-D/LOCK
and King cab)
M33/M207 CONDENSER M210 EC-IGN/SG
(LHD models DISTRIBUTOR (POWER TRANSISTOR) M214 EC-IGN/SG
with KA
engine) ECM (ECCS CONTROL MODULE) M32 EC-MAIN
M208 DATA LINK CONNECTOR FOR CONSULT M11 EC-MIL/DL
(LHD models DISTRIBUTOR (CAMSHAFT POSITION
with KA SENSOR) M214 EC-CMPS
engine)
ECM (ECCS CONTROL MODULE) M32 EC-MAIN
NATS IMMU M68 EL-NATS
SHIELD WIRE (CAMSHAFT POSITION M214 EC-CMPS
SENSOR)
SHIELD WIRE (MASS AIR FLOW SENSOR) M204 EC-MAFS
SHIELD WIRE (THROTTLE POSITION M302 EC-TPS
SENSOR)
SHIELD WIRE (HEATED OXYGEN SENSOR) E3 EC-HO2S
E6/E39 NATS IMMU (Diesel engine) M69 EL-NATS
ABS ACTUATOR AND ELECTRIC UNIT E4 BR-ABS
BRAKE FLUID LEVEL SWITCH E2 EL-WARN
COOLING FAN MOTOR E24 LC-COOL/F
DAYTIME LIGHT UNIT E64 EL-DTRL
DIM-DIP LAMP UNIT E67 EL-DIMDIP
FRONT COMBINATION LAMP LH (PARKING) E11 EL-TAIL/L
(Except for Europe, Australia and China)
FRONT COMBINATION LAMP LH (PARKING) E12 EL-TAIL/L
(For Europe, Australia and China)
FRONT COMBINATION LAMP LH (TURN SIG- E11 EL-TURN
NAL) (Except for Europe, Australia and China)
FRONT COMBINATION LAMP LH (TURN SIG- E12 EL-TURN
NAL) (For Europe, Australia and China)
FRONT COMBINATION LAMP RH (PARKING) E27 EL-TAIL/L
(Except for Europe, Australia and China)
FRONT COMBINATION LAMP RH (PARKING) E28 EL-TAIL/L
(For Europe, Australia and China)
FRONT COMBINATION LAMP RH (TURN SIG- E27 EL-TURN
NAL) (Except for Europe, Australia and China)
FRONT COMBINATION LAMP RH (TURN SIG- E28 EL-TURN
NAL) (For Europe, Australia and China)
FUEL FILTER (FUEL HEATER) E56 EC-F/HEAT
FUEL FILTER SWITCH (RHD models with die-
sel engine) E5 EL-WARN EL-BUZZER
FUEL RETURN CONTROL SOLENOID VALVE E40 EC-F/RTN
(RHD models with NA engine)
EL-16
GROUND DISTRIBUTION
EARTH CONNECT TO CONN. NO. CELL CODE
E6/E39 GLOW RELAY (RHD models with diesel engine E44 EC-GLOW
except for Europe)
HEADLAMP AIMING MOTOR LH E57 EL-H/AIM
HEADLAMP AIMING MOTOR RH E60 EL-H/AIM
HEADLAMP LH E13 EL-H/LAMP EL-DTRL
HEADLAMP RH E26 EL-H/LAMP EL-DTRL EL-DIMDIP
HEADLAMP WASHER AMPLIFIER E65 EL-HLC
IACV-FICD SOLENOID VALVE (Diesel engine) E37 HA-A/C,M
ISC-FI POT CONTROL SOLENOID VALVE E37 EC-FIPOT HA-A/C,M
POWER ANTENNA E46 EL-P/ANT
SHIELD WIRE (FRONT WHEEL SENSOR LH) E15 BR-ABS
SHIELD WIRE (FRONT WHEEL SENSOR RH) E31 BR-ABS
SIDE TURN SIGNAL LAMP LH E1 EL-TURN
SIDE TURN SIGNAL LAMP RH E45 EL-TURN
THERMOSWITCH E18 LC-COOL/F
TRIPLE-PRESSURE SWITCH E25 LC-COOL/F
VACUUM CONTROL SOLENOID VALVE E20 EC-IDLE
ALTERNATOR (Gasoline engine) E211 EC-CHOKE EC-FPCM EL-CHARGE
EL-WARN
NEUTRAL POSITION SWITCH E220 EC-PNP/SW
POWER STEERING OIL PRESSURE SWITCH
(RHD 2WD models with KA engine and LHD E208 EC-PST/SW
models)
POWER STEERING OIL PRESSURE SWITCH E207 EC-PST/SW
(RHD 4WD models with KA engine)
SHIELD WIRE (REAR WHEEL SENSOR LH) C5 BR-ABS
(4WD models)
SHIELD WIRE (REAR WHEEL SENSOR RH) C5 BR-ABS
(4WD models)
SHIELD WIRE (REAR WHEEL SENSOR) (2WD C6 BR-ABS
models)
F7/F52 CONDENSER F10 EC-IGN/SG
(RHD models DISTRIBUTOR (POWER TRANSISTOR) F14 EC-IGN/SG
with KA
engine) ECM (ECCS CONTROL MODULE) F51 EC-MAIN
F8 DATA LINK CONNECTOR FOR CONSULT M11 EC-MIL/DL
(RHD models DISTRIBUTOR (CAMSHAFT POSITION
with KA F14 EC-CMPS
SENSOR)
engine)
ECM (ECCS CONTROL MODULE) F51 EC-MAIN
SHIELD WIRE (CAMSHAFT POSITION
SENSOR) F14 EC-CMPS
SHIELD WIRE (MASS AIR FLOW SENSOR) F4 EC-MAFS
SHIELD WIRE (THROTTLE POSITION F102 EC-TPS
SENSOR)
A1 (Diesel ALTERNATOR A7 EC-GLOW EL-CHARGE EL-WARN
engine) ENGINE COOLANT TEMPERATURE SENSOR
(Except for Europe) A11 EC-GLOW
R54 REAR WINDOW DEFOGGER R53 EL-DEF
EL-17
BATTERY
CAUTION:
If it becomes necessary to start the engine with a booster
battery and jumper cables,
a. Use a 12-volt booster battery.
b. After connecting battery cables, ensure that they are
tightly clamped to battery terminals for good contact.
c. Never add distilled water through the hole used to check
specific gravity.
How to Handle Battery
METHODS OF PREVENTING OVER-DISCHARGE
The following precautions must be taken to prevent over-dis-
charging a battery.
q The battery surface (particularly its top) should always be
kept clean and dry.
q The terminal connections should be clean and tight.
q At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as ``low mainte-
MEL040F nance'' and ``maintenance-free''.
q When the vehicle is not going to be used over a long period
of time, disconnect the negative battery terminal.
MEL041F
q Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep
a close check on charge condition to prevent over-discharge.
MEL042F
CHECKING ELECTROLYTE LEVEL
WARNING:
Do not allow battery fluid to come in contact with skin, eyes,
fabrics, or painted surfaces. After touching a battery, do not
touch or rub your eyes until you have thoroughly washed
your hands. If acid contacts eyes, skin or clothing, immedi-
ately flush with water for 15 minutes and seek medical atten-
tion.
EL-18
BATTERY
How to Handle Battery (Cont'd)
q Remove the cell plug using a suitable tool.
q Add distilled water up to the MAX level.
MEL043F
SULPHATION
A battery will be completely discharged if it is left unat-
tended for a long time and the specific gravity will become
less than 1.100. This may result in sulphation on the cell
plates.
To determine if a battery has been ``sulphated'', note its
voltage and current when charging it. As shown in the
figure, less current and higher voltage are observed in the
initial stage of charging sulphated batteries.
A sulphated battery may sometimes be brought back into
SEL709E service by means of a long, slow charge, 12 hours or more,
followed by a battery capacity test.
SPECIFIC GRAVITY CHECK
1. Read hydrometer and thermometer indications at eye level.
MEL042FA
EL-19
BATTERY
How to Handle Battery (Cont'd)
2. Convert into specific gravity at 20
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
