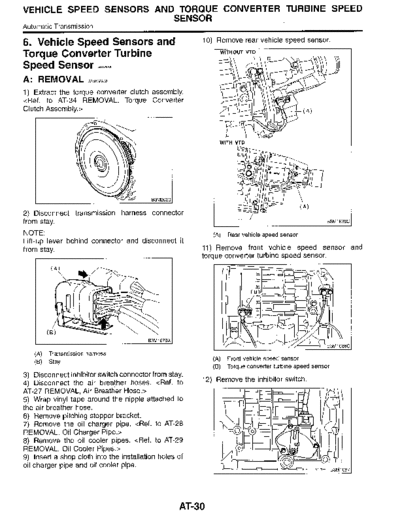

VEHICLE SPEED SENSORS AND TORQUE CONVERTER TURBINE SPEED
SENSOR
Automatic Transmission
6 . Vehicle Speed Sensors and 10) Remove rear vehicle speed sensor.
Torque Converter Turbine
Speed Sensor 5510586
A : REMOVAL 5510586A78
1) Extract the torque converter clutch assembly .
a o
0
O
0
o
O
0
O
O
B3M2020
2) Disconnect transmission harness connector
from stay.
NOTE : (A) Rear vehicle speed sensor
Lift-up lever behind connector and disconnect it
from stay. 11) Remove front vehicle speed sensor and
torque converter turbine speed sensor.
o'
I) B3M1066C
(A) Transmission harness
(B) Stay (A) Front vehicle speed sensor
(B) Torque converter turbine speed sensor
3) Disconnect inhibitor switch connector from stay.
12) Remove the inhibitor switch.
4) Disconnect the air breather hoses.
5) Wrap vinyl tape around the nipple attached to
the air breather hose .
6) Remove pitching stopper bracket.
7) Remove the oil charger pipe .
8) Remove the oil cooler pipes.
9) Insert a shop cloth into the installation holes of
oil charger pipe and oil cooler pipe .
83M1087
AT30
vcni~Lt brttu btN,urc, HIVU IVfiGtUt (:UNVthi I tFi IUHt31Nt SNEEU
SENSOR
Automatic Transmission
13) Prepare a block of wood. Turn over the trans- 16) Remove transmission harness.
mission case and make it secure with the block of
wood. G
NOTE : 1
Turn over in the direction the inhibitor switch was
installed .
14) Remove the oil pan. J)
NOTE:
Use a scraper to remove oil pan .
OLJ ~\\
B3M1067B
(A) Transmission harness
U B : INSTALLATION S510586A11
1) Install and route the transmission harness.
CAUTION :
~OC~ Be careful not to damage the harness .
B3M2022
G
15) Disconnect the harness connectors for the
solenoids, duty solenoids, ATF temperature sensor
and the ground cord .
(a) (J) (a) (c) J)
"oo ~
'-
< o
L
` \\
oyo,o
