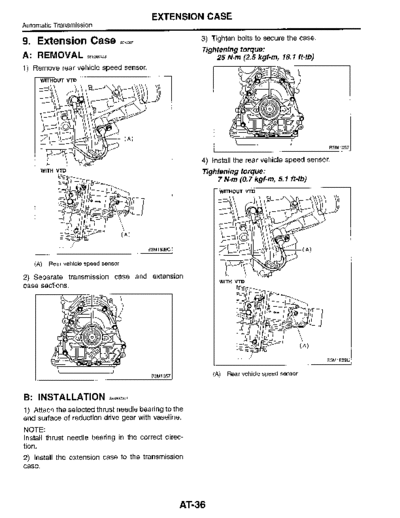

Image preview - the first page of the document
>> Download MSA5T0128A34677 documenatation <<Text preview - extract from the document EXTENSION CASE
Automatic Transmission
Extension Case 55,0587 3) Tighten bolts to secure the case.
Tightening torque:
A: REMOVAL S5f0587A78
25 N~m (2.5 kgf-m, 18.1 ft-Ib)
1) Remove rear vehicle speed sensor. L\ A,.,4_--I \
83M1057
4) Install the rear vehicle speed sensor .
Tightening torque:
7 N~m (0.7 kgf-m, 5.1 ft-Ib)
(A) Rear vehicle speed sensor
2) Separate transmission case and extension
case sections .
B3M1057 (A) Rear vehicle speed sensor
B : INSTALLATION S5f0587A77
1) Attach the selected thrust needle bearing to the
end surface of reduction drive gear with vaseline .
NOTE:
Install thrust needle bearing in the correct direc-
tion.
2) Install the extension case to the transmission
case .
AT36
EXTENSION CASE
Automatic Transmission
C : DISASSEMBLY S570587A06 2. WITH VTD 5510587A0602
y . WITHOUT VTD 55,o587AOSO, 1) Using ST1, ST2, ST3 and a press, remove
snap ring.
1) Take out the transfer clutch by lightly tapping
ST1 398673600 COMPRESSOR
the end of the rear drive shaft .
ST2 498627100 SEAT
CAUTION: ST3 398663600 PLIERS
Be careful not to damage the oil seal in the
extension.
(A)
(B)
B3M1089BI
21 Remove test nlua .
(A) Extension case
(B) Transfer clutch
2) Remove the transfer pipe .
CAUTION:
Be careful not to bend the nine_
\!-,/ -Lciioiui . ~.aav
(B) Test plug
3) Remove clutch piston by comnresseci air
~(,/ ~nici iaivi i ~aac
L
(B) Transfer clutch O
3) Remove the dust cover from the extension
case .
4) Remove the oil seal from the extension case.
H3M1848
AT37
EXTENSION CASE
Automatic Transmission
4) Remove transfer clutch pipe . NOTE :
Insert the clutch assembly fully into position until
CAUTION:
the bearing shoulder bottoms .
Be careful not to bend the pipe .
(o/
1
A
O
a or
B3M11068
(A) Transfer clutch
5) Remove the dust cover trom the extension (B) Extension case
case .
6) Remove the oil seal from the extension case . 2. WITH VTD 5510587A0202
1) Using the ST and a press, press in a new oil
D : ASSEMBLY S5f0587A02
seal.
1 . WITHOUT VTD S5f0587A0201 ST 498057300 INSTALLER
1) Using the ST and a press, press in a new oil 2) Press in the dust cover.
seal . 3) Install transfer clutch pipe .
ST 498057300 INSTALLER CAUTION :
2) Press in the dust cover. Be careful not to bend the pipe .
3) Install the transfer pipe to extension case .
CAUTION :
Be careful not to bend the pipe .
p O (A)
O `
