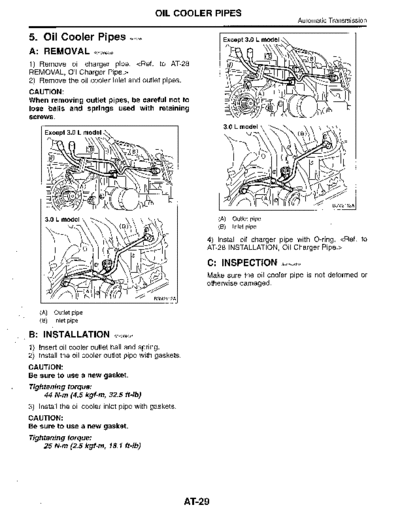

Image preview - the first page of the document
>> Download MSA5T0128A34673 documenatation <<Text preview - extract from the document OIL COOLER PIPES
Automatic Transmission
5 . Oil Cooler Pipes 55,020.9 Except 3.0 L model
A: REMOVAL 55,ozo9A,8
(B)
1) Remove oil charger pipe . [
2) Remove the oil cooler inlet and outlet pipes. I
CAUTION :
When removing outlet pipes, be careful not to 0
lose balls and springs used with retaining _ ~ I . I1
screws.
3.0 L model
Except 3.0 L model
~0 (gym
II r ~ .
-'\ o
~(fNI B3M2112A
3.0 L model (A) Outlet pipe
(B) Inlet pipe
4) Install oil charger pipe with O-ring . ][
C : INSPECTION SS,ozo9A,o
o ~l Make sure the oil cooler pipe is not deformed or
otherwise damaged.
~a)I m
B3M2112A
(A) Outlet pipe
(B) Inlet pipe
B: INSTALLATION S510209A11
1) Insert oil cooler outlet ball and spring .
2) Install the oil cooler outlet pipe with gaskets .
CAUTION :
Be sure to use a new gasket.
Tightening torque:
44 N~m (4.5 kgf-m, 32.5 ft-Ib)
3) Install the oil cooler inlet pipe with gaskets .
CAUTION :
Be sure to use a new gasket.
Tightening torque:
25 N~m (2.5 kgf-m, i8.1 ft-Ib)
AT 29
]
