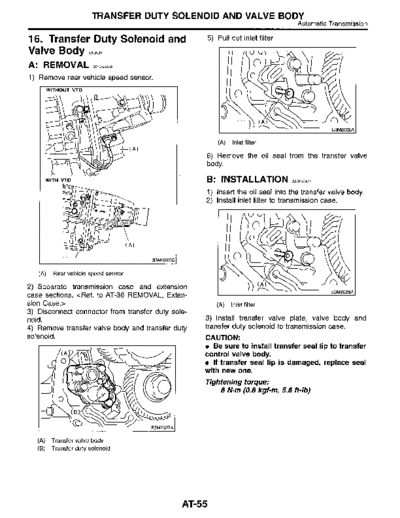

>> Download MSA5T0128A34684 documenatation <<Text preview - extract from the document TRANSFER DUTY SOLENOID AND VALVE BODY
Automatic Transmission
16. Transfer Duty Solenoid and 5) Pull out inlet filter
Valve Body s5,o,6,
A: REMOVAL S510167A18
1) Remove rear vehicle speed sensor . il t_~
(A) Inlet filter
6) Remove the oil seal from the transfer valve
body.
B : INSTALLATION S5f016fA77
1) Insert the oil seal into the transfer valve body.
2) Install inlet filter to transmission case .
(A) Rear vehicle speed sensor
2) Separate transmission case and extension
case sections . [ (A) Inlet filter
3) Disconnect connector from transfer duty sole-
noid . 3) Install transfer valve plate, valve body and
4) Remove transfer valve body and transfer duty transfer duty solenoid to transmission case .
solenoid . CAUTION :
9 Be sure to install transfer seal lip to transfer
control valve body.
* If transfer seal lip is damaged, replace seal
with new one.
Tightening torque:
8 N~m (0.8 kgf-m, 5.8 ft-Ib)
(A) Transfer valve body
(B) Transfer duty solenoid
AT55
TRANSFER DUTY SOLENOID AND VALVE BODY
Automatic Transmission
(A) Transfer valve body
(B) Transfer duty solenoid
4) Install the extension case from the transmission
case . ][
CAUTION :
Be sure to use a new gasket.
5) Install the rear vehicle speed sensor.
Tightening torque:
7 N~m (0.7 kgf-m, 5.1 ft-Ib)
(A) Rear vehicle speed sensor
C : INSPECTION 5510161A70
Check each component for harmful cuts, damage
and other faults .
AT56
]
