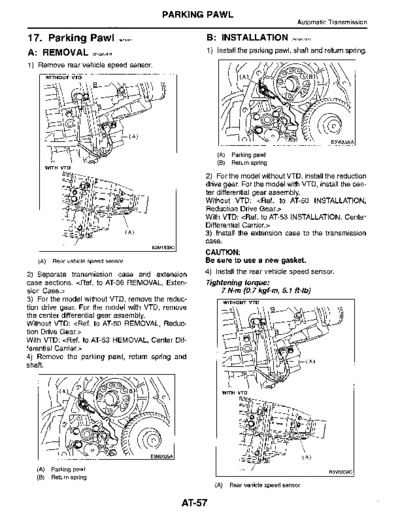

Image preview - the first page of the document
>> Download MSA5T0128A34685 documenatation <<Text preview - extract from the document PARKING PAWL
Automatic Transmission
17. Parking Pawl S5f0201 B : INSTALLATION S570207A17
A: REMOVAL ~,o2o,A,e 1) Install the parking pawl, shaft and return spring .
1) Remove rear vehicle speed sensor.
(A) Parking pawl
(B) Return spring
2) For the model without VTD, install the reduction
drive gear. For the model with VTD, install the cen-
ter differential gear assembly.
Without VTD: [
With VTD : ][
3) Install the extension case to the transmission
case .
CAUTION :
(A) Rear vehicle speed sensor Be sure to use a new gasket.
2) Separate transmission case and extension 4) Install the rear vehicle speed sensor.
case sections . ][ 7 N~m (0.7 kgf-m, 5.1 ft-Ib)
3) For the model without VTD, remove the reduc-
tion drive gear. For the model with VTD, remove
the center differential gear assembly .
Without VTD: ][
With VTD: ][
4) Remove the parking pawl, return spring and
shaft.
(A) Parking pawl
(B) Return spring
(A) Rear vehicle speed sensor
AT57
PARKING PAWL
Automatic Transmission
C: INSPECTION S51020fAf0
Make sure that the tab of the packing pole on the
reduction gear is not worn or otherwise damaged.
AT58
]
