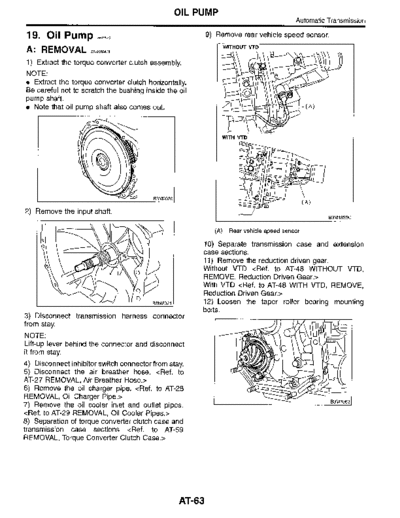

>> Download MSA5T0128A34687 documenatation <<Text preview - extract from the document OIL PUMP
Automatic Transmission
19. Oil Pump 55,000 9) Remove rear vehicle speed sensor.
A : REMOVAL 5510070AiH
1) Extract the torque converter clutch assembly .
NOTE :
Extract the torque converter clutch horizontally.
Be careful not to scratch the bushing inside the oil
pump shaft.
Note that oil pump shaft also comes out.
0
O
0
O
0
O
~
O
B3M2020
2) Remove the input shaft.
(A) Rear vehicle speed sensor
10) Separate transmission case and extension
case sections .
11) Remove the reduction driven gear.
Without VTD [
With VTD ][
12) Loosen the taper roller bearing mounting
bolts.
3) Disconnect transmission harness connector
from stay.
NOTE:
Lift-up lever behind the connector and disconnect O
it from stay.
4) Disconnect inhibitor switch connector from stay.
5) Disconnect the air breather hose . ][
6) Remove the oil charger pipe . ][
B3M1063
7) Remove the oil cooler inlet and outlet pipes .
][
8) Separation of torque converter clutch case and
transmission case sections ][
AT63
OIL PUMP
Automatic Transmission
13) Place two wooden blocks on the workbench, CAUTION:
and stand the transmission case with its rear end Be careful not to damage O-ring .
facing down. 17) Remove the drive pinion assembly .
CAUTION :
* Be careful not to scratch the rear mating sur- B : INSTALLATION 55,~~oA
face of the transmission case. 1) Assemble the drive pinion assembly to the oil
Note that the parking rod and drive pinion pump housing .
protrude from the mating surface.
CAUTION :
" Be careful not to bend the shims.
" Be careful not to force the pinion against the
housing bore .
2) Tighten four bolts to secure the roller bearing.
JJ
Tightening torque:
41 N~m (4.2 kgf-m, 30.4 ft-Ib)
55 mm
(2 .17 in)
B3M1064A
14) Remove the oil pump housing .
CAUTION :
Be careful not to lose the total end play adjust-
ing thrust washer.
3) Install two oil seals to the oil seal retainer with
ST.
CAUTION :
Always discard old oil seals, and install new
ones .
* Pay attention to the orientation of the oil
seals .
ST 499247300 INSTALLER
(A) Oil pump housing
15) Remove the oil seal retainer. (a)
Also remove the O-ring and oil seal (air breather) .
O( e)
B3M2089A
(A) Oil seal
(B) Oil seal retainer
(A) Oil seal retainer
(B) Drive pinion shaft
16) Remove 0-rings from oil pump housing.
AT64
OIL PUMP
Automatic Transmission
4) Attach the O-ring to the oil seal retainer with
vaseline . Install the seal to the oil pump housing
bore.
CAUTION :
Always discard old O-rings and install new
ones.
~e
0o ~ D0 0
]
