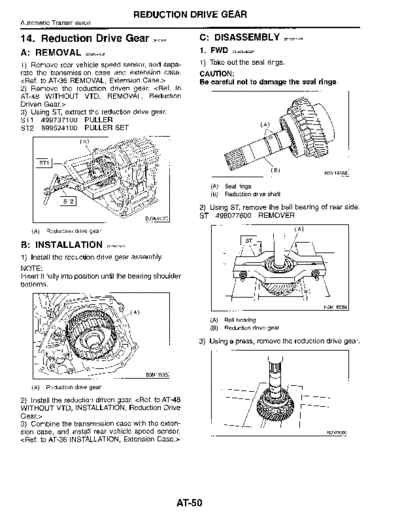

Image preview - the first page of the document
>> Download MSA5T0128A34682 documenatation <<Text preview - extract from the document REDUCTION DRIVE GEAR
Automatic Transmission
14. Reduction Drive Gear 55,059, C: DISASSEMBLY 5570597A06
A . REMOVAL S5f0591A18
," FWD 5510597A0601
1) Remove rear vehicle speed sensor, and sepa- 1) Take out the seal rings.
rate the transmission case and extension case . CAUTION:
[ Be careful not to damage the seal rings.
2) Remove the reduction driven gear. ][
3) Using ST, extract the reduction drive gear .
ST1 499737100 PULLER
ST2 899524100 PULLER SET f~ &
(A) Seal rings
(B) Reduction drive shaft
2) Using ST, remove the ball bearing of rear side.
ST 498077600 REMOVER
(A) Reduction drive gear
B : INSTALLATION 5570591A11
1) Install the reduction drive gear assembly .
NOTE :
Insert it fully into position until the bearing shoulder
bottoms .
\- ~\
(A)
(A) Ball bearing
. `` o (B) Reduction drive gear
3) Using a press, remove the reduction drive gear.
o
~~ \o 0
T~ B3M1113B
(A) Reduction drive gear
2) Install the reduction driven gear . ][
3) Combine the transmission case with the exten-
sion case, and install rear vehicle speed sensor.
][
AT50
REDUCTION DRIVE GEAR
Automatic Transmission
4) Using a press, remove the ball bearing . 3) Using a press, remove the reduction drive gear.
ST1 499577000 ADAPTER
ST2 498077600 REMOVER
(A) Reduction drive gear
D : ASSEMBLY S51Q59fA02
2. AWD S570591A0602
1 . FWD 5570591A0207
1) Take out the seal rings.
1) Press-fit the ball bearing to the reduction drive
CAUTION: gear .
Be careful not to damage the seal rings. ST 398437700 ADAPTER
(A) Seal rings (A) Ball bearing
(B) Reduction drive shaft (B) Reduction drive gear
2) Using ST, remove the ball bearing . 2) Press-fit the reduction drive gear.
ST 498077600 REMOVER 3) Press-fit the ball bearing to reduction drive
shaft.
ST 398437700 ADAPTER
ST
- -- i -
I
B3M0962C
(A) Ball bearing
(B) Reduction drive gear
(A) Ball bearing
(B) Reduction drive gear
AT51
REDUCTION DRIVE GEAR
Automatic Transmission
4) Attach two seal rings .
NOTE :
To make subsequent assembly easier, apply vase-
line to the grooves of the shaft and to the exterior
of the seal ring .
(A) Seal rings
(B) Reduction drive shaft
2. AW D 5570591A0202
1) Press-fit the reduction drive gear to the shaft.
2) Press-fit the ball bearing to the reduction drive
gear.
3) Attach two seal rings .
NOTE :
To make subsequent assembly easier, apply vase-
line to the grooves of the shaft and to the exterior
of the seal ring .
(A) Seal rings
(B) Reduction drive shaft
E : INSPECTION 55,o59,A,o
* Make sure that each component is free of harm-
ful gouges, cuts, or dust .
e Measure the extension end play and adjust it to
within specifications . ][
AT52
]
