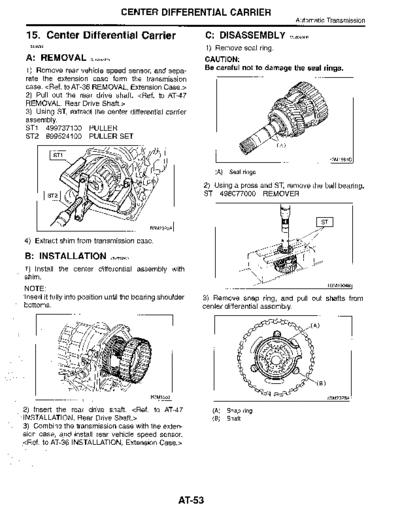

Image preview - the first page of the document



>> Download MSA5T0128A34683 documenatation <<

Text preview - extract from the document

                                         CENTER DIFFERENTIAL CARRIER
                                                                                         Automatic Transmission

 15. Center Differential Carrier                            C : DISASSEMBLY           5510592A06

  5510592
                                                            1) Remove seal ring.
 A: REMOVAL            S510592Ai8                           CAUTION :
1) Remove rear vehicle speed sensor, and sepa-              Be careful not to damage the seal rings.
rate the extension case form the transmission
case .
2) Pull out the rear drive shaft.
3) Using ST, extract the center differential carrier
assembly.
ST1 499737100 PULLER
ST2 899524100 PULLER SET



                                                               (A)   Seal rings

                                                            2) Using a press and ST, remove the ball bearing .
                                                            ST 498077000 REMOVER




4) Extract shim from transmission case .

B : INSTALLATION                    S510592A11


1) Install the center differential assembly with
shim .
NOTE:
Insert it fully into position until the bearing shoulder   3) Remove snap ring, and pull out shafts from
bottoms .                                                  center differential assembly.




2) Insert the rear drive shaft .                               (B)    Shaft
3) Combine the transmission case with the exten-
sion case, and install rear vehicle speed sensor.





                                                     AT53
                                       CENTER DIFFERENTIAL CARRIER
Automatic Transmission

4) Remove thrust washer, pinion gears and wash-
ers from center differential assembly .

                                           (A)



                                       0




                                                 H3M18668

   (A)   Pinion gear

5) Pull out intermediate shaft and thrust bearing.

D : ASSEMBLY S5,o59zAOz
1) Install thrust washer to intermediate shaft.
2) Install thrust bearing and intermediate shaft.
3) Install pinion gears and washers .
4) Put shaft in center differential assembly .
5) Install snap ring.
6) Using a press, press-fit the ball bearing to cen-
ter differential assembly .
ST 498077000 REMOVER
CAUTION:
Be sure to use a new ball bearing.




   (A)   Plate
   (B)   Center differential carrier

E : INSPECTION S5,o592A,o
   Make sure that each component is free of harm-
ful gouges, cuts, or dust .
o Measure the extension end play and adjust it to
within specifications .




                                                            AT54
