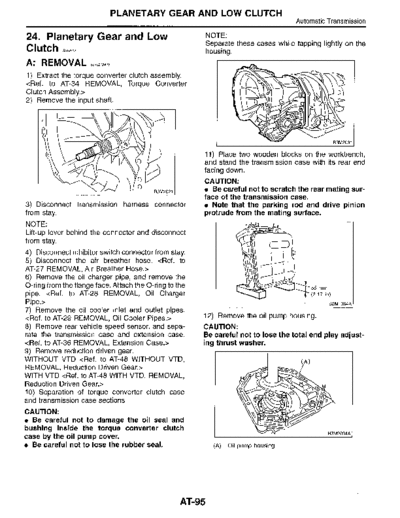

Image preview - the first page of the document
>> Download MSA5T0128A34692 documenatation <<Text preview - extract from the document PLANETARY GEAR AND LOW CLUTCH
Automatic Transmission
24. Planetary Gear and Low NOTE :
Separate these cases while tapping lightly on the
Clutch S5,02,2 housing .
A : REMOVAL SS,oz,ZA,e
1) Extract the torque converter clutch assembly .
[
2) Remove the input shaft.
o /1I
0
0 11) Place two wooden blocks on the workbench,
n and stand the transmission case with its rear end
facing down .
CAUTION :
B3M2021 * Be careful not to scratch the rear mating sur-
face of the transmission case.
3) Disconnect transmission harness connector Note that the parking rod and drive pinion
from stay. protrude from the mating surface.
NOTE :
Lift-up lever behind the connector and disconnect
from stay.
O~
4) Disconnect inhibitor switch connector from stay.
5) Disconnect the air breather hose . ][
6) Remove the oil charger pipe, and remove the
J,
O-ring from the flange face . Attach the O-ring to the 55 mm
pipe . 133M 1064A
7) Remove the oil cooler inlet and outlet pipes .
][ 12) Remove the oil pump housing .
8) Remove rear vehicle speed sensor, and sepa- CAUTION:
rate the transmission case and extension case . Be careful not to lose the total end play adjust-
][ ing thrust washer.
9) Remove reduction driven gear.
WITHOUT VTD ][
WITH VTD ][
10) Separation of torque converter clutch case
and transmission case sections
CAUTION :
* Be careful not to damage the oil seal and
bushing inside the torque converter clutch
case by the oil pump cover.
* Be careful not to lose the rubber seal . (A) Oil pump housing
AT95
PLANETARY GEAR AND LOW CLUTCH
Automatic Transmission
13) Take out the high clutch and reverse clutch 17) Take out retaining plate, drive plate and driven
assembly. ][
14) Take out the front sun gear and the thrust O
%-- ,
bearing.
c
. 0 B3M1075
(B) II II 18) Take out the thrust needle bearing, planetary
B3M1072C
gear assembly and the low clutch assembly .
(A) Front sun gear
(B) Thrust needle bearing
15) Pull out leaf spring .
CAUTION :
Be careful not to bend leaf spring during
removal.
NOTE :
Remove it while pressing down on lower leaf
spring .
B : INSTALLATION 55,o2,2A
(A)
1) Install planetary gear and low clutch assembly
to transmission case .
O Install carefully while rotating the low clutch and
planetary gear assembly slowly paying special
S attention not to damage the seal ring .
O(B) Imo/ ]
