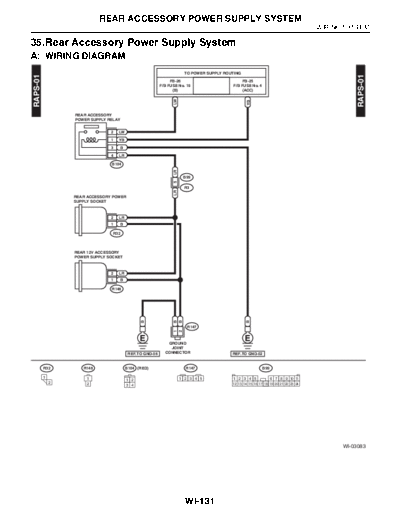

Image preview - the first page of the document
>> Download Rear Accessory Power Supply System documenatation <<
Text preview - extract from the document
REAR ACCESSORY POWER SUPPLY SYSTEM
WIRING SYSTEM
35.Rear Accessory Power Supply System
A: WIRING DIAGRAM
TO POWER SUPPLY ROUTING
RAPS-01
RAPS-01
FB-26 FB-25
F/B FUSE No. 19 F/B FUSE No. 4
(B) (ACC)
LW
YB
REAR ACCESSORY
POWER SUPPLY RELAY
2 LW
1 YB
3 B
4 LR
B104
LR
B99
5
R3
LR
REAR ACCESSORY POWER
SUPPLY SOCKET
2 LR
1 B
R32
REAR 12V ACCESSORY
POWER SUPPLY SOCKET
2 LR
1 B
R146
B
B
B
B
R147
1
2
GROUND
JOINT
REF. TO GND-06 CONNECTOR REF. TO GND-02
R32 R146 B104 (RED) R147 B99
1 1 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 11
1 2
2 2 12 13 14 15 16 17 18 19 20 21 22 23 24
3 4
WI-03083
WI-131
