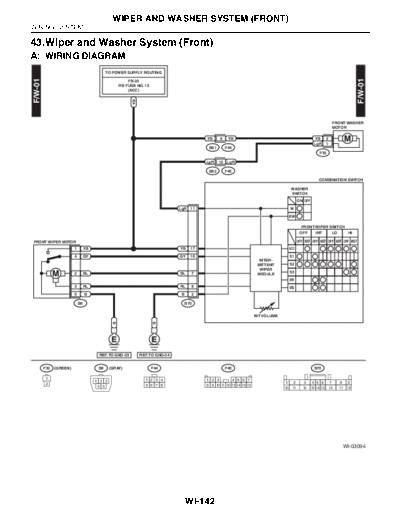

Image preview - the first page of the document
>> Download Wiper and Washer System (Front) documenatation <<
Text preview - extract from the document
WIPER AND WASHER SYSTEM (FRONT)
WIRING SYSTEM
43.Wiper and Washer System (Front)
A: WIRING DIAGRAM
TO POWER SUPPLY ROUTING
F/W-01
F/W-01
FB-23
F/B FUSE NO. 15
(ACC)
YB
FRONT WASHER
MOTOR
YB 6 YB YB 2
LgR 1
B61 F44
F32
LgR 12 LgR
B62 F45
COMBINATION SWITCH
WASHER
SWITCH
ON OFF
LgR 11 W
EW
FRONT WIPER SWITCH
OFF INT LO HI
FRONT WIPER MOTOR OFF MIST OFF MIST OFF MIST OFF MIST
1 YB YB 17 ACC
4 GY GY 16 S1
INTER-
MITTENT S2
WIPER
2 BL BL 7 MODULE S3
INT1
3 RL RL 8 INT2
5 B B 2
B8 B70
INT VOLUME
B
B
REF. TO GND-03 REF. TO GND-04
F32 (GREEN) B8 (GRAY) F44 F45 B70
1 1 2 3 4 1 2 3 4 5 6 7
1 2 3 1 2 3 4 5 6 7 8 9
2 5 6 7 8 8 9 10 11 12 13 14 15 16
4 5 10 11 12 13 14 15 16 17 18
WI-03094
WI-142
