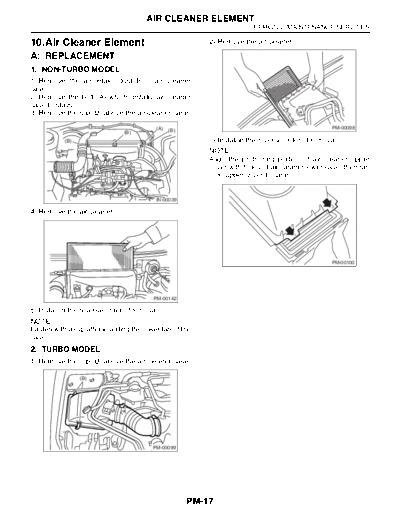

Image preview - the first page of the document



>> Download 10. Air Cleaner Element documenatation <<

Text preview - extract from the document

                                       AIR CLEANER ELEMENT
                                                                         PERIODIC MAINTENANCE SERVICES

10.Air Cleaner Element                                     2) Remove the air cleaner.

A: REPLACEMENT
1. NON-TURBO MODEL
1) Remove the air intake duct from air cleaner
case.
2) Remove the bolt (A) which installs air cleaner
case to stays.
3) Remove the clip (B) above the air cleaner case.

                                           (A)   (B)                                                PM-00098
                                (B)
           (B)                                             3) Install in the reverse order of removal.
                                                           NOTE:
                                                           Align the protruding portion of air cleaner upper
                                                           cover with holes of air cleaner lower case, then se-
                                                           cure upper cover to case.


                                           IN-00039

4) Remove the air cleaner.




                                                                                                   PM-00100




                                          PM-00142

5) Install in the reverse order of removal.
NOTE:
Fasten with a clip after inserting the lower tab of the
case.
2. TURBO MODEL
1) Remove the clip (B) above the air cleaner case.

                 (B)




                                          PM-00099




                                                       PM-17
