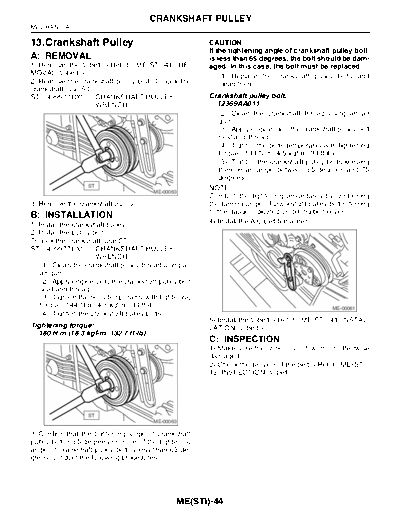

Image preview - the first page of the document
13. Crankshaft Pulley


>> Download 13. Crankshaft Pulley documenatation <<

Text preview - extract from the document
                                       CRANKSHAFT PULLEY
MECHANICAL

13.Crankshaft Pulley                                    CAUTION:
                                                        If the tightening angle of crankshaft pulley bolt
A: REMOVAL                                              is less than 65 degrees, the bolt should be dam-
1) Remove the V-belt.                                              (1) Replace the crankshaft pulley bolts and
2) Remove the crankshaft pulley bolt. To lock the           clean them.
crankshaft, use ST.
ST 499977100        CRANKSHAFT PULLEY                   Crankshaft pulley bolt:
                    WRENCH                                12369AA011
                                                          (2) Clean the crankshaft thread using an air
                                                          gun.
                                                          (3) Apply engine oil to the crankshaft pulley bolt
                                                          seat and thread.
                                                          (4) Tighten the bolts temporarily with tightening
                                                          torque of 44 N
