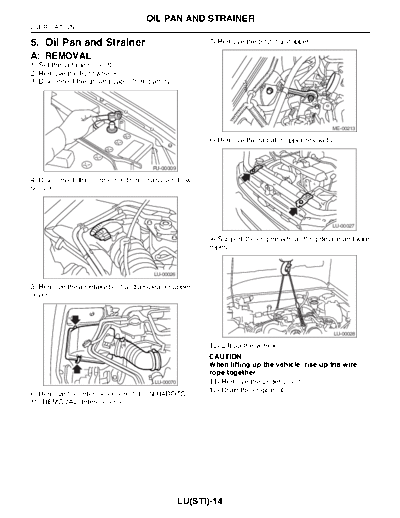

Image preview - the first page of the document



>> Download 05. Oil Pan and Strainer documenatation <<

Text preview - extract from the document

                                    OIL PAN AND STRAINER
LUBRICATION

5. Oil Pan and Strainer                                  7) Remove the pitching stopper.

A: REMOVAL
1) Set the vehicle on a lift.
2) Remove the front wheels.
3) Disconnect the ground cable from battery.




                                                                                                 ME-00213

                                                         8) Remove the radiator upper brackets.


                                      FU-00009

4) Disconnect the connector from mass air flow
sensor.




                                                                                                 LU-00027

                                                         9) Support the engine with a lifting device and wire
                                                         ropes.


                                       LU-00026

5) Remove the air intake boot and air cleaner upper
cover.




                                                                                                 LU-00028

                                                         10) Lift-up the vehicle.
                                                         CAUTION:
                                                         When lifting up the vehicle, rise up the wire
                                                         rope together.
                                       LU-00070          11) Remove the under cover.
                                                         12) Drain the engine oil.
6) Remove the intercooler.




                                                  LU(STi)-14
                                     OIL PAN AND STRAINER
                                                                                                   LUBRICATION

13) Remove the nuts which install the front cushion       B: INSTALLATION
rubber onto front crossmember.
                                                          CAUTION:
                                                          Before installing the oil pan, clean sealant from
                                                          oil pan and engine block.
                                                          1) Install the baffle plate.
                                                          Tightening torque:
                                                             6.4 N
