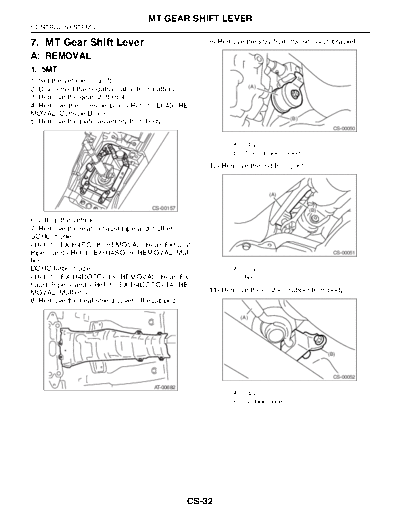

Image preview - the first page of the document
>> Download 07. MT Gear Shift Lever documenatation <<
Text preview - extract from the document
MT GEAR SHIFT LEVER
CONTROL SYSTEMS
7. MT Gear Shift Lever 9) Remove the stay from transmission bracket.
A: REMOVAL
1. 5MT
1) Set the vehicle on a lift.
(A)
2) Disconnect the negative cable from battery.
3) Remove the gear shift knob.
4) Remove the console box.
(B)
5) Remove the plate assembly from body.
CS-00050
(A) Stay
(B) Transmission bracket
10) Remove the rod from joint.
(A)
CS-00157 (B)
6) Lift-up the vehicle.
7) Remove the rear exhaust pipe and muffler.
SOHC model
and
DOHC turbo model (A) Stay
and 11) Remove the cushion rubber from body.
8) Remove the heat shield cover. (If equipped)
(A)
(B)
CS-00052
AT-00682
(A) Stay
(B) Cushion rubber
CS-32
MT GEAR SHIFT LEVER
CONTROL SYSTEMS
12) Extract the spring pin, and then remove the 9) Remove the crossmember.
10) Remove the snap pin and washer, and then re-
move the reverse check cable from reverse check
(A)
lever.
(A)
(B)
(B)
CS-00053
(A) Joint (C)
(B) Spring pin CS-00220
13) Lower the vehicle. (A) Snap pin
14) Remove the gear shift lever. (B) Washer
(C) Reverse check cable
11) Move the transmission to right side, and then
remove the joint COMPL, stay bolt and reverse
check cable.
NOTE:
If the transmission is not moved, the joint COMPL
and stay bolt will contact body and damage may
occur.
CS-00054
(C)
2. 6MT (A)
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery. (B)
3) Remove the gear shift knob.
4) Remove the console box front.
5) Remove the boot plate from body.
CS-00221
(A) Joint COMPL bolt
(B) Stay bolt
(C) Reverse check cable
12) Remove the cushion rubber from body.
CS-00219
6) Lift-up the vehicle.
7) Remove the under cover.
8) Remove the rear exhaust pipe and muffler.
, CS-00222
CS-33
MT GEAR SHIFT LEVER
CONTROL SYSTEMS
13) Lower the vehicle. 5) Connect the rod to the joint.
14) Remove the gear shift lever.
Tightening torque:
