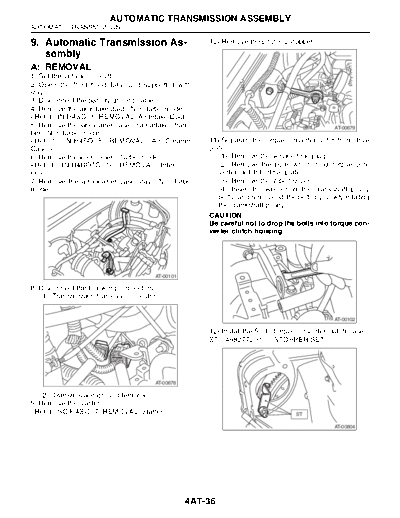

Image preview - the first page of the document



>> Download 09. Automatic Transmission Assembly documenatation <<

Text preview - extract from the document

                        AUTOMATIC TRANSMISSION ASSEMBLY
AUTOMATIC TRANSMISSION

9. Automatic Transmission As-                         10) Remove the pitching stopper.
   sembly
A: REMOVAL
1) Set the vehicle on a lift.
2) Open the front hood fully, and support it with
stay.
3) Disconnect the battery ground cable.
4) Remove the air intake duct. (Non-turbo model)

5) Remove the air cleaner case or air intake cham-                                             AT-00679
ber. (Non-turbo model)
                                                plate.
6) Remove the intercooler. (Turbo model)                 (1) Remove the service hole plug.
                                                     verter clutch to drive plate.
7) Remove the air cleaner case stay. (Non-turbo          (3) Remove the V-belt cover.
model)                                                   (4) Insert the wrench in the crankshaft pulley
                                                         bolts, and remove all the bolts by slowly rotating
                                                         the crankshaft pulley.
                                                      CAUTION:
                                                      Be careful not to drop the bolts into torque con-
                                                      verter clutch housing.




                                       AT-00101

8) Disconnect the following connectors.
   (1) Transmission harness connector


                                                                                               AT-00102

                                                      12) Install the ST to torque converter clutch case.
                                                      ST 498277200          STOPPER SET




                                       AT-00678

   (2) Transmission ground terminal
9) Remove the starter.
                                           ST

                                                                                               AT-00804




                                                  4AT-36
                         AUTOMATIC TRANSMISSION ASSEMBLY
                                                                              AUTOMATIC TRANSMISSION

13) Remove the ATF level gauge.                        19) Remove the center and rear exhaust pipes,
NOTE:                                                  and muffler. (Turbo model)
Plug the opening to prevent an entry of foreign par-   ,  and
                                                       20) Remove the heat shield cover. (If equipped)




                                        AT-00680

14) Set the ST.
ST 41099AA000 ENGINE SUPPORT ASSY                                                               AT-00682

                                                       21) Drain ATF to remove the ATF drain plug.
                                ST
                                                                                 (B)      (A)




                                        AT-00105

15) Remove the bolts which hold the right upper                                                 AT-00080
side of transmission to engine.
                                                             (A) Oil pan
                                                             (B) Drain plug

                                                       22) Disconnect the ATF cooler hoses from pipes of
                                                       transmission side, and remove the ATF level gauge
                                                       guide.




                                        AT-00106

16) Lift-up the vehicle.
17) Remove the under cover.
18) Remove the front, center and rear exhaust
pipe, and muffler. (Non-turbo model)
,  and
                                                       24) Remove the shift select cable.
                                                       25) Disconnect the stabilizer link from transverse
                                                       link.
                                                       26) Remove the bolt securing ball joint of trans-
                                                       verse link to housing.

                                                   4AT-37
                        AUTOMATIC TRANSMISSION ASSEMBLY
AUTOMATIC TRANSMISSION
