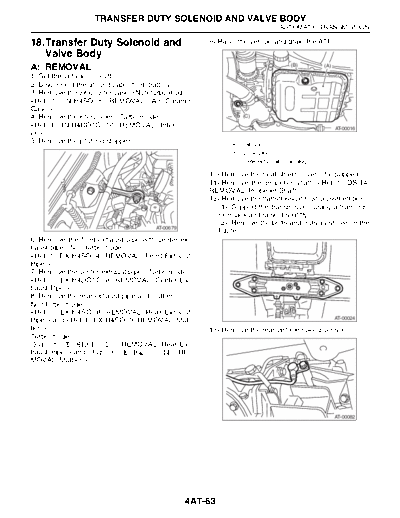

Image preview - the first page of the document



>> Download 18. Transfer Duty Solenoid and Valve Body documenatation <<

Text preview - extract from the document

                   TRANSFER DUTY SOLENOID AND VALVE BODY
                                                                              AUTOMATIC TRANSMISSION

18.Transfer Duty Solenoid and                        9) Raise the vehicle and drain the ATF.
   Valve Body
                                                                                  (B)
A: REMOVAL                                                                                  (A)

1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Remove the air cleaner case. (Non-turbo model)

4) Remove the intercooler. (Turbo model)                        (C)

5) Remove the pitching stopper.                            (A) Oil pan
                                                           (B) Drain plug
                                                           (C) Deferential oil drain plug

                                                     10) Remove the heat shield cover. (If equipped)
                                                     11) Remove the propeller shaft.
                                                     12) Remove the transmission rear crossmember.
                                                        (1) Support the transmission using a transmis-
                                                        sion jack and raise it slightly.
                                                        (2) Remove the bolts and nuts as shown in the
                                      AT-00679
                                                        figure.
6) Remove the front exhaust pipe with center ex-
haust pipe. (Non-turbo model)

7) Remove the center exhaust pipe. (Turbo model)

8) Remove the rear exhaust pipe and muffler.
Non-turbo model
 and                                                13) Remove the rear vehicle speed sensor.
Turbo model
 and




                                                                                                  AT-00082




                                                 4AT-63
                      TRANSFER DUTY SOLENOID AND VALVE BODY
AUTOMATIC TRANSMISSION

14) Remove the select cable nut.                            B: INSTALLATION
                                                            1) Install the transfer duty solenoid and transfer
                                                            valve body.
                                                               (1) Install the transfer duty solenoid and trans-
                                                               fer valve body.
                                                            Tightening torque:
                                                              T: 8 N
