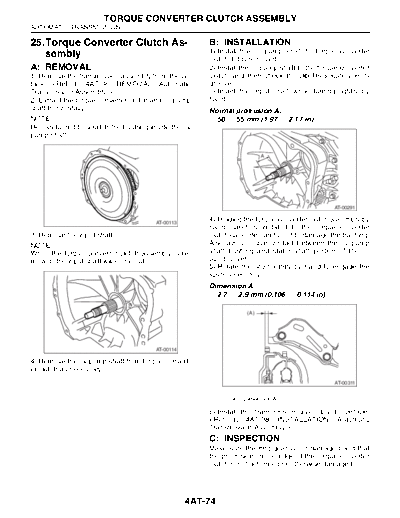

                       TORQUE CONVERTER CLUTCH ASSEMBLY
AUTOMATIC TRANSMISSION

25.Torque Converter Clutch As-                         B: INSTALLATION
   sembly                                              1) Install the oil pump shaft to torque converter
                                                       clutch if it is removed.
A: REMOVAL                                             2) Install the oil pump shaft to the torque converter
1) Remove the transmission assembly from the ve-       clutch, and then check the clip fits securely in its
hicle.                                 3) Insert the input shaft while turning lightly by
2) Extract the torque converter clutch and oil pump    hand.
shaft horizontally.                                    Normal protrusion A:
NOTE:                                                    50 -- 55 mm (1.97 -- 2.17 in)
Be careful not to scratch the bushing inside the oil
pump shaft.

                                                                         A




                                                                                                AT-00291


                                        AT-00113
                                                       4) Holding the torque converter clutch assembly by
                                                       hand, carefully install it to the torque converter
3) Remove the input shaft.                             clutch case. Be careful not to damage the bushing.
NOTE:                                                  Also avoid undue contact between the oil pump
When the torque converter clutch assembly is re-       shaft bushing and stator shaft portion of the oil
moved, the input shaft will come out.                  pump cover.
                                                       5) Rotate the shaft lightly by hand to engage the
                                                       splines securely.
                                                       Dimension A:
                                                         2.7 -- 2.9 mm (0.106 -- 0.114 in)

                                                                   (A)




                                        AT-00114

4) Remove the oil pump shaft from torque convert-
er clutch as necessary.
                                                                                                AT-00311


                                                             (A) Dimension A

                                                       6) Install the transmission assembly to vehicle.

                                                       C: INSPECTION
                                                       Make sure the ring gear is not damaged and that
                                                       the protrusion on the edge of the torque converter
                                                       clutch is not deformed or otherwise damaged.




                                                   4AT-74
