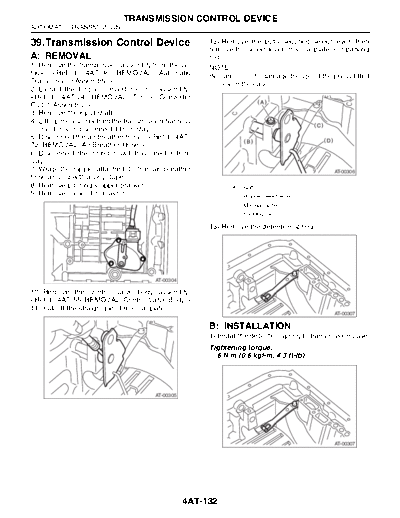

Image preview - the first page of the document



>> Download 39. Transmission Control Device documenatation <<

Text preview - extract from the document

                              TRANSMISSION CONTROL DEVICE
AUTOMATIC TRANSMISSION

39.Transmission Control Device                          12) Remove the bolts securing select lever, then
                                                        remove the select lever, manual plate and parking
A: REMOVAL                                              rod.
1) Remove the transmission assembly from the ve-        NOTE:
hicle.                                  oil seal in the case.
2) Extract the torque converter clutch assembly.

3) Remove the input shaft.
4) Lift-up the lever behind the transmission harness
connector and disconnect it from stay.
5) Disconnect the air breather hoses.
6) Disconnect the inhibitor switch connector from
stay.
7) Wrap the nipple attached to the air breather                                                  AT-00306
hose around with a vinyl tape.
8) Remove pitching stopper bracket.                           (A)   Bolt
9) Remove the inhibitor switch.                               (B)   Range select lever
                                                              (C)   Manual plate
                                                              (D)   Parking rod

                                                        13) Remove the detention spring.




                                        AT-00304

10) Remove the control valve body assembly.

11) Pull off the straight pin of manual plate.
                                                                                                 AT-00307

                                                        B: INSTALLATION
                                                        1) Install the detention spring to transmission case.
                                                        Tightening torque:
                                                          6 N
