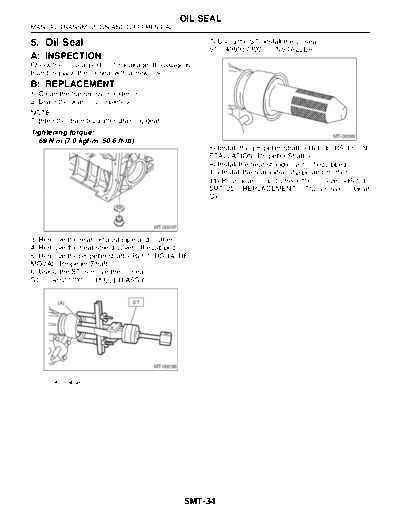

Image preview - the first page of the document
05. Oil Seal


>> Download 05. Oil Seal documenatation <<

Text preview - extract from the document
                                                    OIL SEAL
MANUAL TRANSMISSION AND DIFFERENTIAL

5. Oil Seal                                              7) Using the ST, install the oil seal.
                                                         ST 498057300         INSTALLER
A: INSPECTION
Check the oil seal portion for leakage. If leakage is
found, replace the oil seal with a new one.
B: REPLACEMENT
1) Clean the transmission exterior.
2) Drain the gear oil completely.
NOTE:
Tighten the drain plug after draining gear oil.
Tightening torque:                                                                                MT-00099
  69 N
