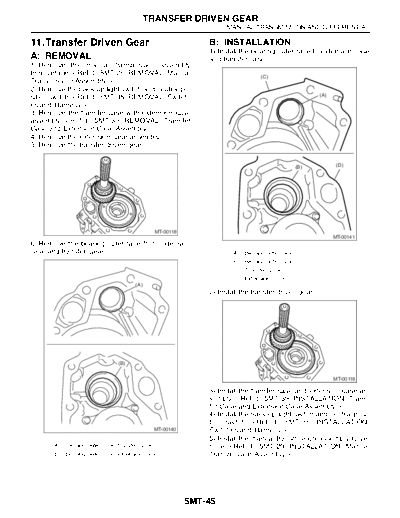

Image preview - the first page of the document



>> Download 11. Transfer Driven Gear documenatation <<

Text preview - extract from the document

                                       TRANSFER DRIVEN GEAR
                                                                MANUAL TRANSMISSION AND DIFFERENTIAL

11.Transfer Driven Gear                                   B: INSTALLATION
                                                          1) Install the bearing outer race to extension case
A: REMOVAL                                                and transfer case.
1) Remove the manual transmission assembly
from vehicle.
2) Remove the back-up light switch and neutral po-
                                                                                                  (A)
sition switch.
3) Remove the transfer case with extension case
assembly.
4) Remove the extension case assembly.
5) Remove the transfer driven gear.

                                                                                            (B)          (D)




                                           MT-00118
                                                                                                        MT-00141
6) Remove the bearing outer race from extension
case and transfer case.                                          (A)   Bearing outer race
                                                                 (B)   Bearing outer race
                                                                 (C)   Transfer case
                                                                 (D)   Extension case
                                    (A)
                                                          2) Install the transfer driven gear.




                              (B)


                                                                                                        MT-00118

                                                          3) Install the transfer case and extension case as-
                                                          sembly.
                                                          4) Install the back-up light switch and neutral posi-
                                                          tion switch.
                                                          5) Install the manual transmission assembly to ve-
      (A) Bearing outer race (transfer case)              hicle.




                                                      5MT-45
                                  TRANSFER DRIVEN GEAR
MANUAL TRANSMISSION AND DIFFERENTIAL

C: DISASSEMBLY                                        D: ASSEMBLY
1) Using the ST, remove the roller bearing (exten-    1) Using the ST, install the roller bearing (extension
sion case side).                                      case side).
ST 498077000        REMOVER                           ST1 398177700 INSTALLER
                                                      ST2 899864100 REMOVER
                                                      NOTE:
                                                      Do not apply pressure in excess of 10 kN (1 ton, 1.1
                                                      US ton, 1.0 Imp ton)
            (A)                        ST

                                                                                      ST2




                                       MT-00143

                                                                   (A)                      ST1
      (A) Roller bearing

2) Using the ST1 and ST2, remove the roller bear-
ing (transfer case side).                                                                         MT-00145
ST1 498077000 REMOVER
ST2 899864100 REMOVER                                        (A) Roller bearing

                                                      2) Using the ST, install the roller bearing (transfer
                                                      case side).
                                 ST2                  ST 499757002        INSTALLER
                                                      NOTE:
           (A)                                        Do not apply pressure in excess of 10 kN (1 ton, 1.1
                                       ST1            US ton, 1.0 Imp ton)

                                                                                         ST

                                       MT-00144
                                                                                         (A)

      (A) Roller bearing




                                                                                                  MT-00146


                                                             (A) Roller bearing

                                                      E: INSPECTION
                                                      1) Bearings
                                                      Replace the bearings in the following cases:
