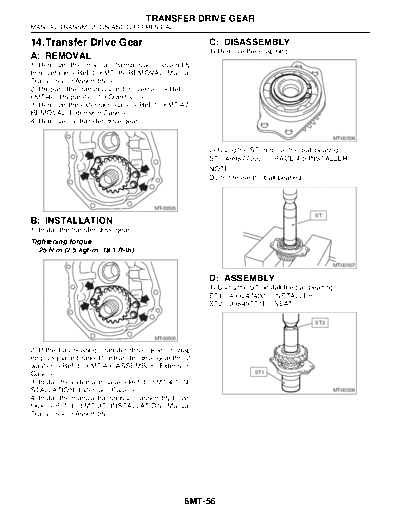

Image preview - the first page of the document
14. Transfer Drive Gear


>> Download 14. Transfer Drive Gear documenatation <<

Text preview - extract from the document
                                       TRANSFER DRIVE GEAR
MANUAL TRANSMISSION AND DIFFERENTIAL

14.Transfer Drive Gear                                    C: DISASSEMBLY
                                                          1) Remove the snap ring.
A: REMOVAL
1) Remove the manual transmission assembly
from vehicle.
2) Prepare the transmission for overhaul.
3) Remove the extension case.
4) Remove the transfer drive gear.

                                                                                                   MT-00506

                                                          2) Using the ST, remove the ball bearing.
                                                          ST 499877000        RACE 4-5 INSTALLER
                                                          NOTE:
                                                          Do not reuse the ball bearing.



                                          MT-00505
                                                                                             ST
B: INSTALLATION
1) Install the transfer drive gear.
Tightening torque:
  25 N
