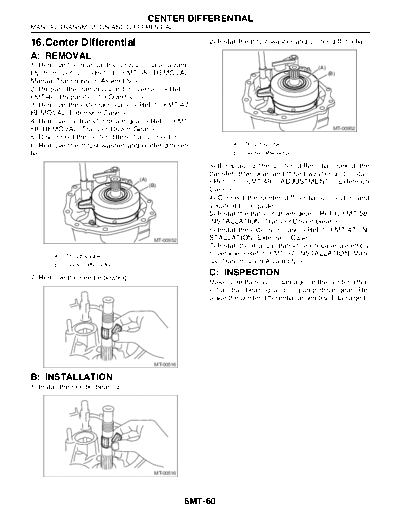

Image preview - the first page of the document
16. Center Differential


>> Download 16. Center Differential documenatation <<

Text preview - extract from the document
                                        CENTER DIFFERENTIAL
MANUAL TRANSMISSION AND DIFFERENTIAL

16.Center Differential                                   2) Install the thrust washer and center differential.

A: REMOVAL
1) Remove the manual transmission case assem-                                                (A)
bly from vehicle.
2) Prepare the transmission for overhaul.
3) Remove the extension case.
4) Remove the transfer driven gear.                                                                   MT-00952
5) Disconnect the center differential connector.
6) Remove the thrust washer and center differen-                (A) Thrust washer
tial.                                                           (B) Center differential

                                                         3) If replacing the center differential, select the
                                                         transfer drive gear and thrust washer and install.
                                  (A)
                                        (B)

                                                         4) Connect the center differential connector, and
                                                         secure it to oil guide.
                                                         5) Install the transfer driven gear.
                                                         6) Install the extension case.
                                                         7) Install the manual transmission case assembly
       (A) Thrust washer                                 to vehicle.
                                                         C: INSPECTION
7) Remove the needle bearing.
                                                         Make sure there is no damage on the center differ-
                                                         ential, ball bearing and oil pump drive gear. Re-
                                                         place the center differential assembly if damaged.




                                          MT-00516

B: INSTALLATION
1) Install the needle bearing.




                                          MT-00516




                                                     6MT-60
