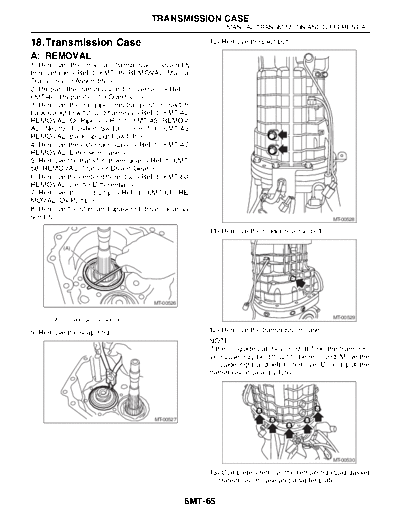

Image preview - the first page of the document



>> Download 18. Transmission Case documenatation <<

Text preview - extract from the document

                                      TRANSMISSION CASE
                                                           MANUAL TRANSMISSION AND DIFFERENTIAL

18.Transmission Case                                  10) Remove the pilot bolt.

A: REMOVAL
1) Remove the manual transmission assembly
from vehicle.
2) Prepare the transmission for overhaul.
3) Remove the oil pipe, neutral position switch,
back-up light switch and harness. , ,
4) Remove the extension case.
5) Remove the transfer driven gear.
6) Remove the center differential.
7) Remove the oil pump.
8) Remove the shim and spacer of driven gear as-
sembly.                                                                                       MT-00528

                                                      11) Remove the holder reverse bolt.

          (A)




                                       MT-00526


       (A) Driven gear assembly                                                                MT-00529


9) Remove the snap ring.                              12) Remove the transmission case.
                                                      NOTE:
                                                      If the oil guide catches on shift fork, the transmis-
                                                      sion case may be difficult to be removed. Move the
                                                      oil guide right and left to remove. Do not pull the
                                                      transmission case by force.




                                       MT-00527




                                                                                              MT-00530

                                                      13) Completely remove the remaining liquid gasket
                                                      on transmission case and adapter plate.


                                                  6MT-65
                                            TRANSMISSION CASE
MANUAL TRANSMISSION AND DIFFERENTIAL

B: INSTALLATION                                            4) Make sure the interlock block and reverse inter-
1) Make sure that each shifter fork and interlock          lock block are aligned in neutral position by inspect-
block is shifted to neutral position. If not, shift to     ing through the pilot bolt installation hole. If not
neutral position.                                          aligned, remove the transmission case, then shift
                                                           each shifter fork and interlock block to neutral posi-
                                                           tion.


                                                                   (B)




                                                                  (A)

                                                                                                    MT-00533
                                     (A)

                                                                  (A) Interlock block
                                                                  (B) Reverse interlock block

                                                           5) Using a new gasket, install the pilot bolts tempo-
                                      (B)
                                                           rarily.
                                                           6) Tighten the transmission case with bolts and
                 (C)
                                                           nuts.
                                                           Tightening torque:
                                            MT-00531
                                                              50 N
