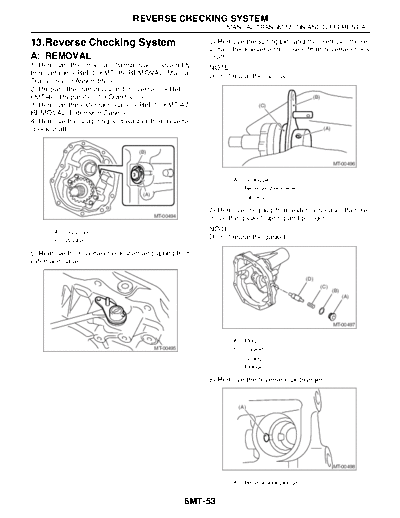

Image preview - the first page of the document



>> Download 13. Reverse Checking System documenatation <<

Text preview - extract from the document

                               REVERSE CHECKING SYSTEM
                                                             MANUAL TRANSMISSION AND DIFFERENTIAL

13.Reverse Checking System                              6) Remove the spring pin, and then remove the re-
                                                        verse check lever and oil seal from reverse check
A: REMOVAL                                              shaft.
1) Remove the manual transmission assembly              NOTE:
from vehicle.
2) Prepare the transmission for overhaul.                                                           (B)
3) Remove the extension case.
4) Remove the snap ring and washer from reverse
check shaft.                                                                                       (A)



                                 (B)

                                                                                                         MT-00496


                                                               (A) Spring pin
                                                               (B) Reverse check lever
                                   (A)
                                                               (C) Oil seal

                                                        7) Remove the plug from extension case, then re-
                                         MT-00494
                                                        move the gasket, spring and plunger.
      (A) Snap ring                                     NOTE:
      (B) Washer
                                                        Do not reuse the gasket.

5) Remove the reverse check shaft and spring from
extension case.

                                                                                          (D)
                                                                                                  (C)
                                                                                                         (B)
                                                                                                               (A)




                                                                                                         MT-00497


                                                               (A)   Plug
                                         MT-00495              (B)   Gasket
                                                               (C)   Spring
                                                               (D)   Plunger

                                                        8) Remove the reverse lock plunger.


                                                                 (A)




                                                                                                         MT-00498


                                                               (A) Reverse lock plunger


                                                    6MT-53
                                    REVERSE CHECKING SYSTEM
MANUAL TRANSMISSION AND DIFFERENTIAL

B: INSTALLATION                                               3) Install the spring and reverse check shaft to ex-
1) Insert the reverse lock plunger.                           tension case.
2) Install in the order of reverse check plug, spring,        NOTE:
gasket and plug.                                              Be sure the spring end aligns with the hole of re-
Tightening torque:                                            verse check shaft and cutout portion of extension
                                                              case.
  41 N
