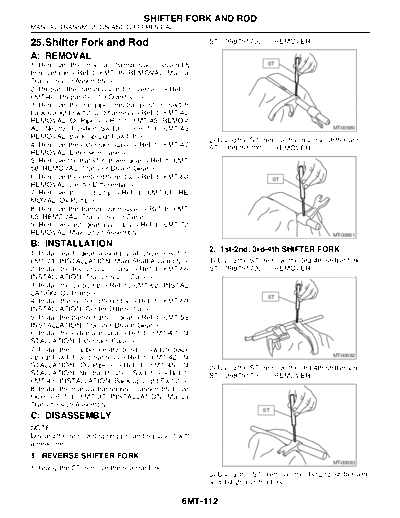

Image preview - the first page of the document

>> Download 25. Shifter Fork and Rod documenatation <<

Text preview - extract from the document

SHIFTER FORK AND ROD
MANUAL TRANSMISSION AND DIFFERENTIAL

25.Shifter Fork and Rod ST 398791700 REMOVER

A: REMOVAL
1) Remove the manual transmission assembly ST

from vehicle.
2) Prepare the transmission for overhaul.
3) Remove the oil pipe, neutral position switch,
back-up light switch and harness. , ,
2) Using the ST, remove the reverse shifter arm.
4) Remove the extension case.
5) Remove the transfer driven gear.
6) Remove the center differential.
7) Remove the oil pump.
8) Remove the transmission case.
9) Remove each gear assembly. MT-00681

B: INSTALLATION
2. 1st-2nd, 3rd-4th SHIFTER FORK
1) Install each gear assembly at once. 1) Using the ST, remove the 3rd-4th shifter fork.
2) Install the transmission case.
3) Install the oil pump. ST
4) Install the center differential.
5) Install the transfer driven gear.
6) Install the extension case.
7) Install the oil pipe, neutral position switch, back-
MT-00682
up light switch and harness. , ,
8) Install the manual transmission assembly to ve-
hicle.
ST
C: DISASSEMBLY
NOTE:
Discard the removed spring pin and replace it with
a new one.
1. REVERSE SHIFTER FORK
MT-00683
1) Using the ST, remove the reverse fork.
3) Using the ST, remove the 1st-2nd shifter arm
and 1st-2nd shifter fork.

6MT-112
SHIFTER FORK AND ROD
MANUAL TRANSMISSION AND DIFFERENTIAL

ST 398791700 REMOVER ST 398791700 REMOVER

(B)
(A)

MT-00684 MT-00687

(A) 1st-2nd shifter arm 5. STRIKING ROD
(B) 1st-2nd shifter fork 1) Remove the reverse interlock block and interlock
block from striking rod.
3. 5th-6th SHIFTER FORK
1) Using the ST, remove the 5th-6th shifter fork. (B) (A)
ST 398791700 REMOVER

MT-00688

(A) Reverse interlock block
MT-00685 (B) Interlock block

2) Using the ST, remove the 5th-6th shifter arm. 2) Using the ST, remove the reverse interlock arm.
ST 398791700 REMOVER ST 398791700 REMOVER

ST ST

(B) (A)

MT-00686 MT-00689

4. SHIFT ARM SHAFT (A) Reverse interlock arm
Using the ST, remove the selector arm. (B) Interlock arm

3) Using the ST, remove the interlock arm.

6MT-113
SHIFTER FORK AND ROD
MANUAL TRANSMISSION AND DIFFERENTIAL

ST 398791700 REMOVER NOTE:
Make sure to install the reverse arm and rod in
proper direction.

ST (C)
(A)
(B)

MT-00690 (A)

(A) Interlock arm MT-00692

D: ASSEMBLY (A) Reverse arm
1. REVERSE SHIFTER FORK (B) Reverse rod
(C) Spring pin
1) Using the ST, install the reverse fork.
ST 398791700 REMOVER
2. 1st-2nd, 3rd-4th SHIFTER FORK
NOTE:
1) Using the ST, install the 1st-2nd shifter fork.
Make sure to install the reverse fork and rod in
proper direction. ST 398791700 REMOVER
NOTE:
(A) Make sure to install the 1st-2nd shifter fork and rod
(C)
in proper direction.

(C)

(B)

MT-00691 (A)

(A) Reverse fork
(B) Reverse rod MT-00693

(C) Spring pin
(A) 1st-2nd shifter fork
2) Using the ST, install the reverse arm. (B) 1st-2nd shifter rod
ST 398791700 REMOVER (C) Spring pin

2) Using the ST, install the 1st-2nd shifter arm.
ST 398791700 REMOVER

6MT-114
SHIFTER FORK AND ROD
MANUAL TRANSMISSION AND DIFFERENTIAL

NOTE: NOTE:
Make sure to install the 1st-2nd shifter arm and fork Make sure to install the 3rd-4th shifter fork in proper
in proper direction. direction.

(B)

MT-00694 MT-00697

(A) 1st-2nd shifter fork (A) 3rd-4th shifter fork
(B) 1st-2nd shifter arm (B) Spring pin
(C) Spring pin
3. 5th-6th SHIFTER FORK
3) Using the ST, install the 3rd-4th shifter arm.
ST 398791700 REMOVER 1) Using ST, install the 5th-6th shifter arm.
ST 398791700 REMOVER
NOTE:
Make sure to install the 3rd-4th shifter arm and rod NOTE:
in proper direction. Make sure to install the 5th-6th shifter arm and rod
in proper direction.

(A)
(B)

(B)
(A)

MT-00695
MT-00698

(A) 3rd-4th shifter rod
(A) 5th-6th shifter arm
(B) 3rd-4th shifter arm
(B) 5th-6th shifter rod
(C) Spring pin
(C) Spring pin
4) Install the 3rd-4th fork rod into 1st-2nd shifter
arm. 2) Using the ST, install the 5th-6th shifter fork.
ST 398791700 REMOVER

MT-00696

5) Using the ST, install the 3rd-4th shifter fork.
ST 398791700 REMOVER

6MT-115
SHIFTER FORK AND ROD
MANUAL TRANSMISSION AND DIFFERENTIAL

NOTE:
