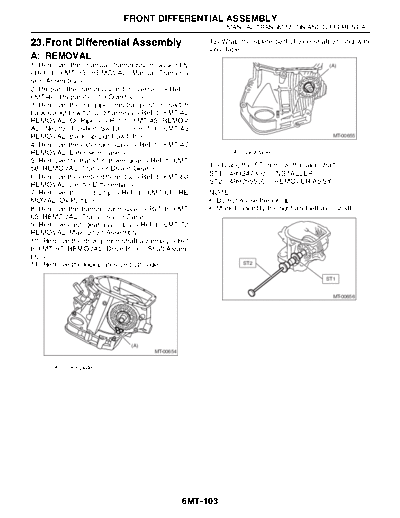

                             FRONT DIFFERENTIAL ASSEMBLY
                                                            MANUAL TRANSMISSION AND DIFFERENTIAL

23.Front Differential Assembly                         12) Wrap the spline part of axle shaft around with
                                                       vinyl tape.
A: REMOVAL
1) Remove the manual transmission assembly.                                                    (A)

2) Prepare the transmission for overhaul.
3) Remove the oil pipe, neutral position switch,
back-up light switch and harness. , ,                                                                   MT-00655
4) Remove the extension case.                                      (A) Vinyl tape
5) Remove the transfer driven gear.                     13) Using the ST, remove the axle shaft.
6) Remove the center differential.                          ST2 499095500 REMOVER ASSY
7) Remove the oil pump.
