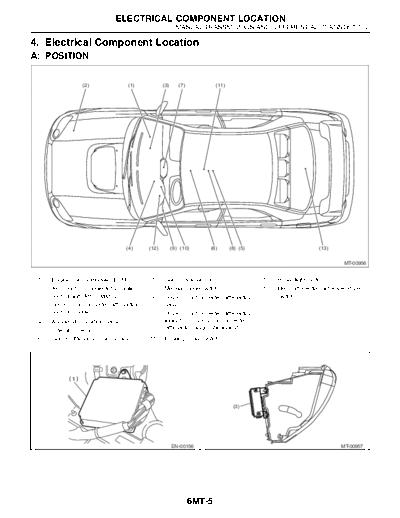

Image preview - the first page of the document
04. Electrical Component Location


>> Download 04. Electrical Component Location documenatation <<

Text preview - extract from the document
                                 ELECTRICAL COMPONENT LOCATION
                                                             MANUAL TRANSMISSION AND DIFFERENTIAL (DIAGNOSTICS)

4. Electrical Component Location
A: POSITION


                    (2)                (1)           (3)      (7)           (11)




                                      (4)     (12)         (9) (10)     (6)        (8) (5)                          (13)


                                                                                                                              MT-00956


 (1)   Engine control module (ECM)            (7)    Center differential                     (12)   Brake light switch
 (2)   ABS control module & hydraulic         (8)    Manual mode switch                      (13)   Rear differential oil temperature
       control unit (ABSCM&H/U)               (9)    Driver's control center differential           switch
 (3)   Driver's control center differential          relay
       control module                         (10)   Driver's control center differential
 (4)   Accelerator position sensor                   indicator (driver's control center
 (5)   Lateral G sensor                              differential diagnostic indicator)
 (6)   Center differential control dial       (11)   Parking brake switch




                                                                                    (3)




                                                           EN-00156                                                          MT-00957




                                                                    6MT-5
                          ELECTRICAL COMPONENT LOCATION
MANUAL TRANSMISSION AND DIFFERENTIAL (DIAGNOSTICS)




              (2)
                                                                          (4)




                                        MT-00852                                MT-00958




                            (5)




                                                     (10)

                                        MT-00855                                MT-00860




                                                                   (11)




                    (6)
                                        MT-00856                                MT-00861




                                                            (12)




                                  (7)
                                        MT-00857                                MT-00959




                                             6MT-6
      ELECTRICAL COMPONENT LOCATION
                MANUAL TRANSMISSION AND DIFFERENTIAL (DIAGNOSTICS)




        (8)




                                  (13)



               MT-00858                                   MT-00863




(9)




               MT-00960




                    6MT-7
