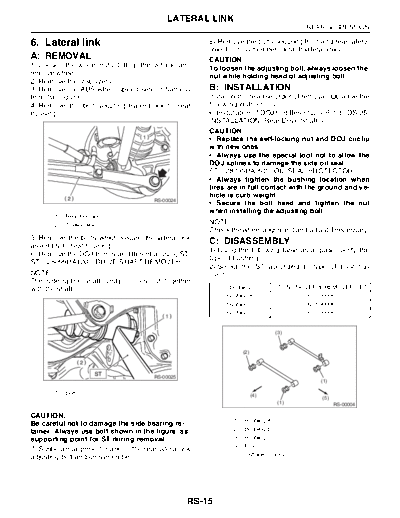

Image preview - the first page of the document



>> Download 06. Lateral link documenatation <<

Text preview - extract from the document

                                            LATERAL LINK
                                                                                         REAR SUSPENSION

6. Lateral link                                        8) Remove the bolts securing front and rear lateral
                                                       links to crossmember, detach lateral links.
A: REMOVAL                                             CAUTION:
1) Loosen the wheel nuts. Lift-up the vehicle and      To loosen the adjusting bolt, always loosen the
remove wheel.                                          nut while holding head of adjusting bolt.
2) Remove the stabilizers.
3) Remove the ABS wheel speed sensor harness           B: INSTALLATION
from trailing link.                                    Install in the reverse order of removal. Observe the
4) Remove the bolt securing trailing link to rear      following instructions.
housing.
